    Neutralization Brushes

    Neutralization Brushes

    Click image to view enlarged image

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

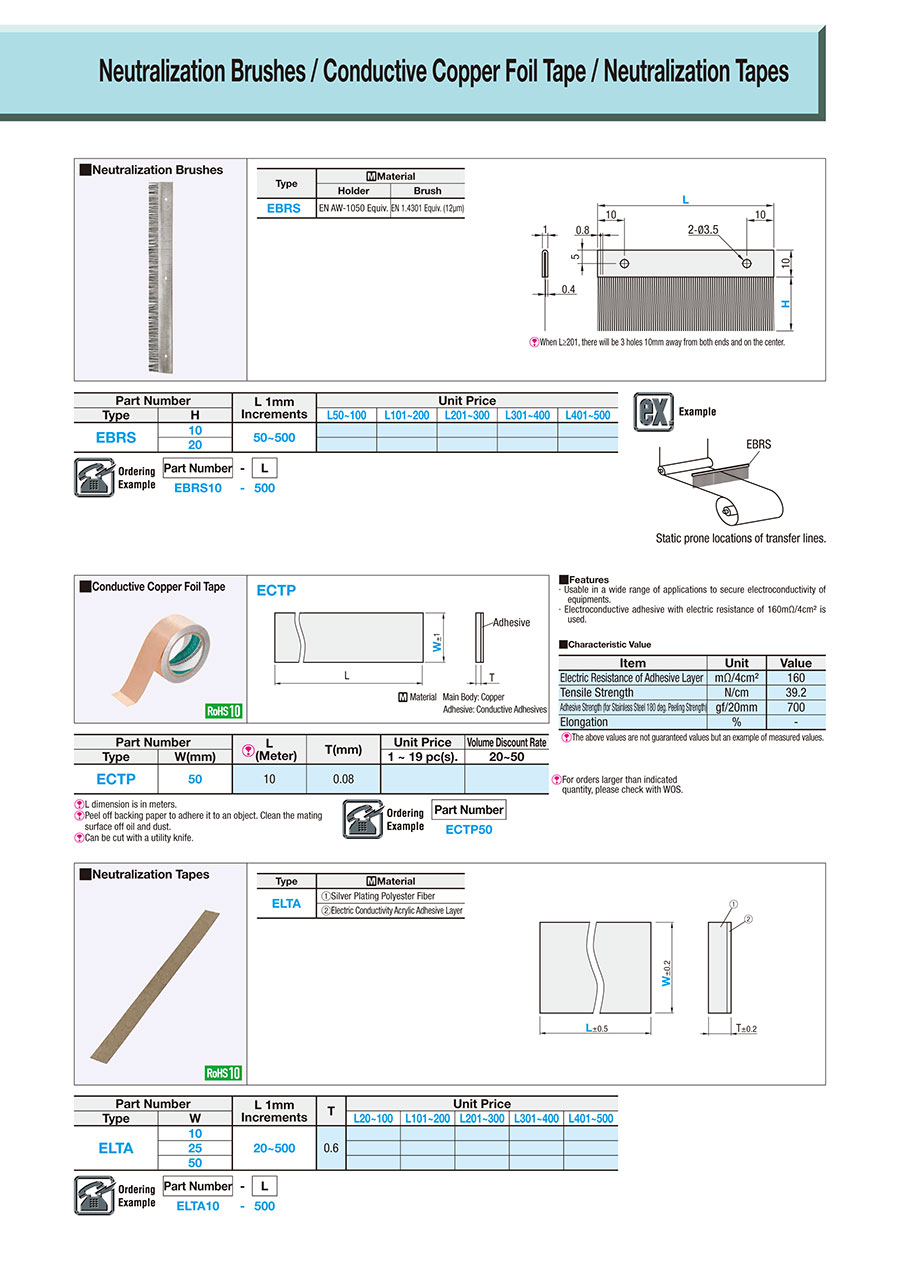

    Outline drawing and specifications table

    Neutralization Brushes:Related Image

    Type Material
    HolderBrush
    EBRSEN AW-1050 Equiv.EN 1.4301 Equiv. (12µm)

    Specifications

    Part Number-L
    EBRS10-500
    Part NumberL 1mm IncrementsUnit Price
    TypeHL50~100L101~200L201~300L301~400L401~500
    EBRS1050~500
    20

    Part number list

    Number of items

    Height H

    (mm)

    L

    (mm)

    RoHS?Minimum order quantity
    10
    50 ~ 500
    10
    1 pieces
    20
    50 ~ 500
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days

    More Information

    Basic information

    [Features] This is a brush for removing static charge from sheets of paper, foils, etc. [Material] EN 1.4301 Equiv. (sintered).

    Outline and specifications

    Example of Use

    Neutralization Brushes:Related Image
