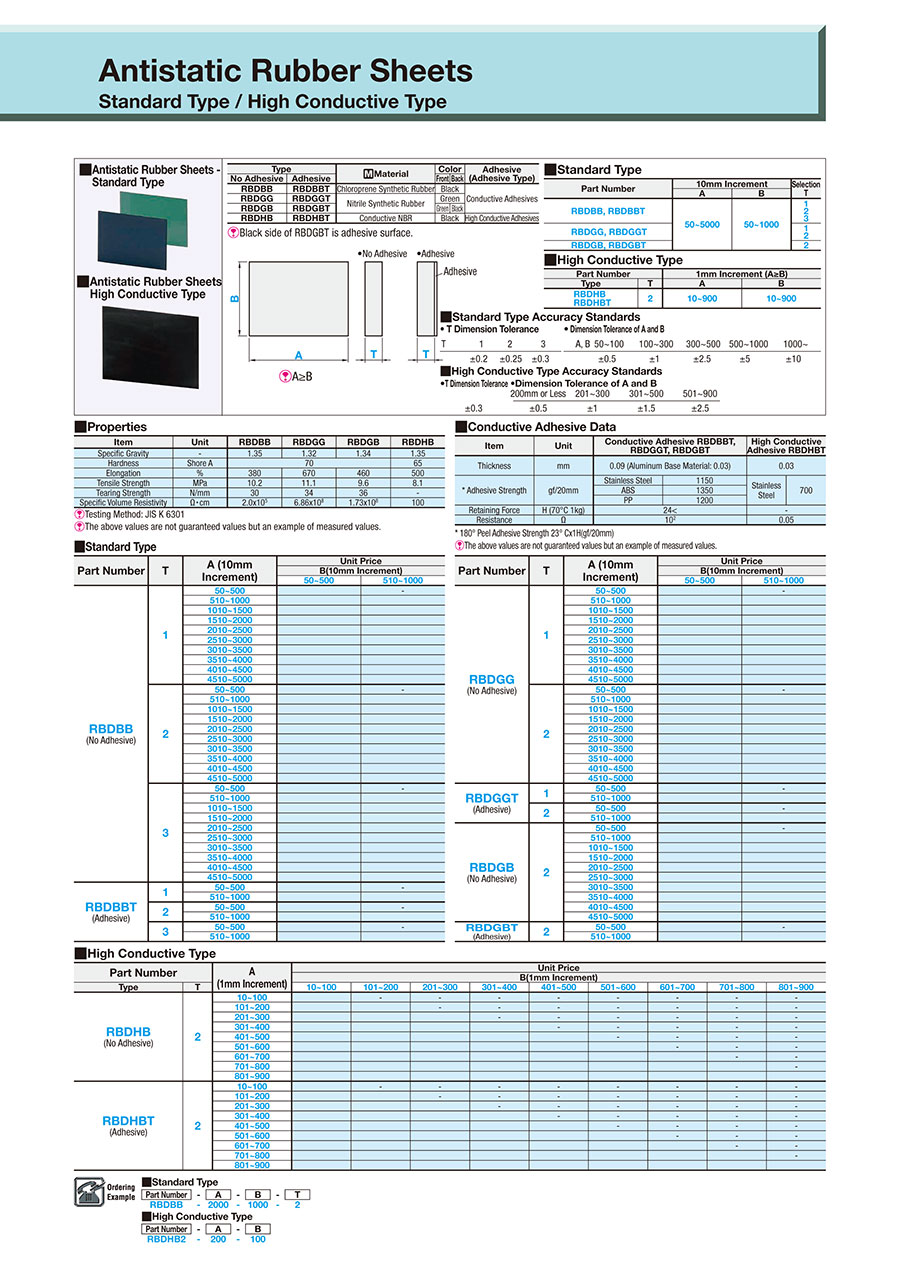

Antistatic Rubber Sheets
Part number:
possible part numbers found.Outline drawing and specifications table
● No Adhesive
● Adhesive
[ ! ]A ≥ B
| Type | [M] Material | Color | Adhesive (Adhesive) | ||
| No Adhesive | Adhesive | Front | Back | ||
| RBDBB | RBDBBT | Chloroprene Synthetic Rubber | Black | Conductive Adhesives | |
| RBDGG | RBDGGT | Nitrile Synthetic Rubber | Green | ||
| RBDGB | RBDGBT | Green | Black | ||
| RBDHB | RBDHBT | Conductive NBR | Black | High Conductive Adhesives | |
Specification Table
■ Standard Type
■High Conductive Type
| Part Number | — | A | — | B | — | T |
| RBDBB | — | 2000 | — | 1000 | — | 2 |
| Part Number | — | A | — | B |
| RBDHB2 | — | 200 | — | 100 |
■ Standard Type
| Part Number | 10 mm Increments | Selection T | |
| A | B | ||
| RBDBB·RBDBBT | 50 to 5000 | 50 to 1000 | 1 2 3 |
| RBDGG·RBDGGT | 1 2 | ||
| RBDGB·RBDGBT | 2 | ||
■High Conductive Type
| Part Number | Selection 1 mm Increments (A ≥ B) | ||
| Type | T | A | B |
| RBDHB RBDHBT | 2 | 10 to 900 | 10 to 900 |
■Standard Type Accuracy Standards
● T Dimension Tolerance
| T | 1 | 2 | 3 |
| — | ±0.2 | ±0.25 | ±0.3 |
• Dimension Tolerance of A and B
| A·B | 50 to 100 | 100 to 300 | 300 to 500 | 500 to 1000 | 1000 or more |
| ±0.5 | ±1 | ±2.5 | ±5 | ±10 |
■High Conductive Type Accuracy Standards
● T Dimension Tolerance
| ±0.3 |
• Dimension Tolerance of A and B
| 200 mm or Less | 201 to 300 | 301 to 500 | 501 to 900 |
| ±0.5 | ±1 | ±1.5 | ±2.5 |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 7 working days |
- ( - ) | 7 working days |
- ( - ) | 7 working days |
- ( - ) | 7 working days |
- ( - ) | 7 working days |
- ( - ) | 7 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
More Information
Outline and specifications
Specifications / Overview
■Properties
■Conductive Adhesive Data
*180° Peel Adhesive Strength 23°C × 1H (gf/20 mm)
[ ! ] The above values are not guaranteed values but an example of measured values.
| Item | Unit | RBDBB | RBDGG | RBDGB | RBDHB |
| Specific Gravity | — | 1.35 | 1.32 | 1.34 | 1.35 |
| Hardness | Shore A | 70 | 65 | ||
| Elongation | % | 380 | 670 | 460 | 500 |
| Tensile Strength | Mpa | 10.2 | 11.1 | 9.6 | 8.1 |
| Tearing Strength | N/mm | 30 | 34 | 36 | — |
| Specific Volume Resistivity | Ω·cm | 2.0 × 105 | 6.86 × 108 | 1.73 × 108 | 100 |
| [ ! ] Testing Method: JIS K 6301. [ ! ] The above values are not guaranteed values but an example of measured values. | |||||
| Item | Unit | Conductive Adhesives RBDBBT·RBDGGT·RBDGBT | High Conductive Adhesives RBDHBT | ||
| Thickness | mm | 0.09 (Aluminum Base Material: 0.03) | 0.03 | ||
| * Adhesive Strength | gf/20mm | Stainless Steel | 1150 | Stainless Steel | 700 |
| ABS | 1350 | ||||
| PP | 1200 | ||||
| Retaining Force | H (70°C, 1 kg) | 24 < | — | ||
| Resistance | Ω | 102 | 0.05 | ||
[ ! ] The above values are not guaranteed values but an example of measured values.
