MISUMI

Safety Protection Materials / Protection Materials / Shock Absorption Material

Safety Protection Materials / Protection Materials / Shock Absorption Material

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

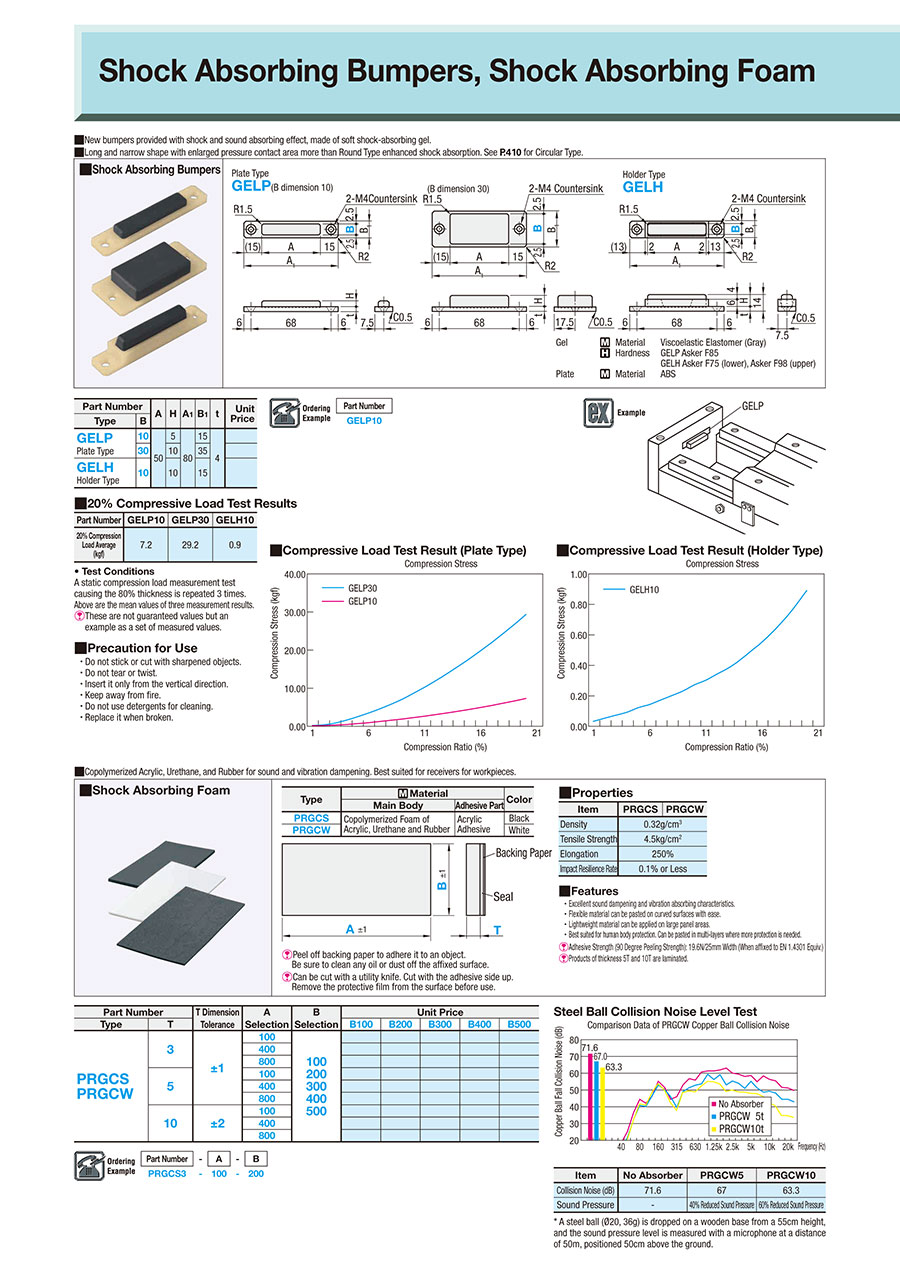

Outline drawing and specifications table

Safety Protection Materials/Protection Materials/Shock Absorption Material:Related Image

Type MaterialColor
Main BodyAdhesive Part
PRGCSCopolymerized Foam of Acrylic, Urethane and RubberAcrylic
Adhesive		Black
PRGCWWhite

Specifications

Part Number-A-B
PRGCS3-100-200
■Properties
ItemPRGCSPRGCW
Density0.32g/cm3
Tensile Strength4.5kg/cm2
Elongation250%
Impact Resilience Rate0.1% or Less

Part NumberT Dimension ToleranceA
Selection		B
Selection		Unit Price
TypeTB100B200B300B400B500
PRGCS
PRGCW		3±1100100
200
300
400
500
400
800
5100
400
800
10±2100
400
800

Part number list

Number of items
  • 1
    • Part number
    PRGCS3-[100,400,800]-[100,200,300,400,500]
    PRGCS5-[100,400,800]-[100,200,300,400,500]
    PRGCS10-[100,400,800]-[100,200,300,400,500]
    PRGCW3-[100,400,800]-[100,200,300,400,500]
    PRGCW5-[100,400,800]-[100,200,300,400,500]
    PRGCW10-[100,400,800]-[100,200,300,400,500]

    Color

    Thickness T

    (mm)

    A

    (mm)

    B

    (mm)

    		RoHS?Minimum order quantity
    Black
    3
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    Black
    5
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    Black
    10
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    White
    3
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    White
    5
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    White
    10
    100 ～ 800
    100 ～ 500
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
  • 1

    • More Information

    Outline and specifications

    More Information

    Safety Protection Materials/Protection Materials/Shock Absorption Material:Related Image
    ■Features
    • Excellent sound dampening and vibration absorbing characteristics.
    • Flexible material can be pasted on curved surfaces with ease.
    • Lightweight material can be applied on large panel areas.
    • Best suited for human body protection. Can be pasted in multi-layers where more protection is needed.
    Adhesive Strength (90 Degree Peeling Strength): 19.6N/25mm Width (When affixed to EN 1.4301 Equiv.)
    Products of thickness 5T and 10T are laminated.
