Fitting for Hydraulic Pressure / Water Pressure, Straight Type, PT Male Thread / PF Female Thread, -Straight / Female-
Click image to view enlarged image
Part number:

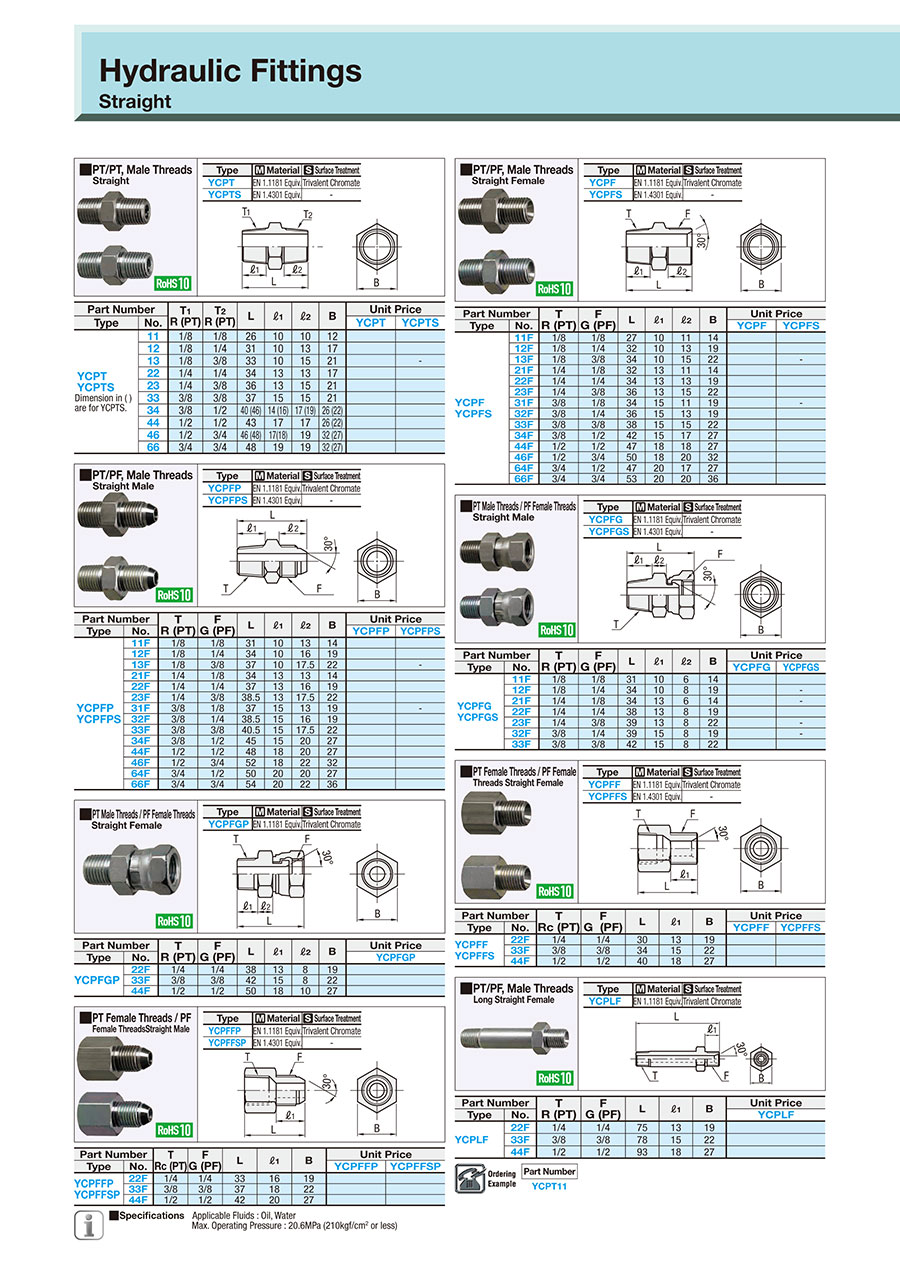

possible part numbers found.Outline drawing and specifications table
| Type | [M] Material | [S] Surface Treatment |
| YCPFGP | EN 1.1181 Equiv. | Trivalent Chromate |
Specification Table
| Part Number |
| YCPT11 |
| Part Number | T R (PT) | F G (PF) | L | ℓ1 | ℓ2 | B | |
| Type | No. | ||||||
| YCPFGP | 22F | 1/4 | 1/4 | 38 | 13 | 8 | 19 |
| 33F | 3/8 | 3/8 | 42 | 15 | 8 | 22 | |
| 44F | 1/2 | 1/2 | 50 | 18 | 10 | 27 | |
Specifications
- Applicable Fluids: Oil, Water
- Max. Operating Pressure: 20.6 MPa (210 kgf/cm2 or less)
More Information
Basic information
[Features] An adapter fitting for hydraulic hoses. -The fluids used are oil and water. -Maximum working pressure is 20.6 MPa (210 kgf/cm2 or less).
Outline and specifications
Specifications/Overview
■Specifications Applicable Fluids: Oil, Water
Max. Operating Pressure: 20.6 MPa (210 kgf/cm2 or less)
Max. Operating Pressure: 20.6 MPa (210 kgf/cm2 or less)
