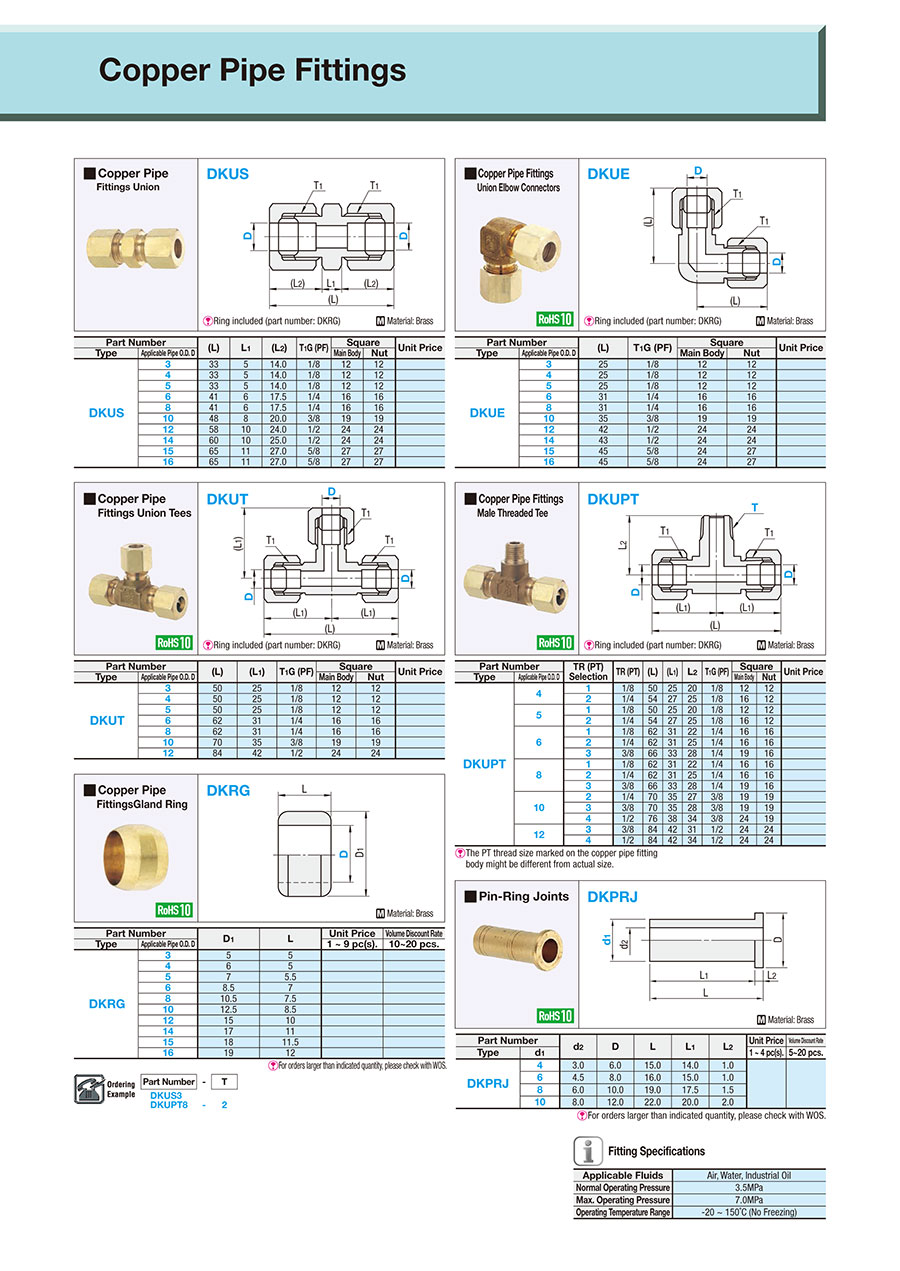

Copper Pipe Fittings / Union Elbow / 90 Deg.

Dimensional Drawing

DKUE

Specification Table

App. Example

Main Body Ring Ring
Nut Copper Pipes Main Body Ring Ring
Nut Pin-Ring
Joint Pipe
Or Tube

• Pin-Ring Joint is available when thin metal pipes and hard tubes are used with Copper Pipe Fittings.
• Set a ring nut and a ring in a joint pipe, insert the pipe into the main body all the way until the pipe end touches the pipe stopper and tighten the nut by hand.
  Afterwards use a wrench or a spanner for further tightening.
• As annealed copper pipes are soft, use Annealed Copper Pipe Fittings, instead of this Ring Type coupling.
