One-Touch Couplings / Manifold / Triple Double Type
Part number:
possible part numbers found.Outline drawing and specifications table
DUNLW
[M]Material: PBT (Polybutylene Terephthalate)
Specification Table
| Part Number | — | D2 |
| DUNLW4 | — | 8 |
| Part Number | D2 | A | B | B1 | B2 | C1 | C2 | P | F1 | F2 | X | Y | |
| Type | D1 | ||||||||||||
| DUNLW | 4 | 8 | 19.5 | 66 | 19.5 | 29.5 | 10 | 14.5 | 10.5 | 10 | 17.5 | 38 | 10.5 |
| 6 | 10 | 22 | 78.5 | 22 | 32 | 12.5 | 17.5 | 13 | 10 | 19.5 | 45 | 12 | |
| 8 | 12 | 24.5 | 87 | 24.5 | 36 | 14.5 | 20 | 15 | 11.5 | 22 | 51 | 13 | |
More Information
Basic information
[Features] This quick coupling can be connected to a wide range of equipment. -Single manifold type, triple-double.
Outline and specifications
Specifications / Overview
Specifications
*No freezing
| Applicable Fluid | Air |
| Operating Temperature Range* | −15 to 60°C |
| Max. Operating Pressure | 1 Mpa |
| Operating Vacuum Level | -100 kPa |

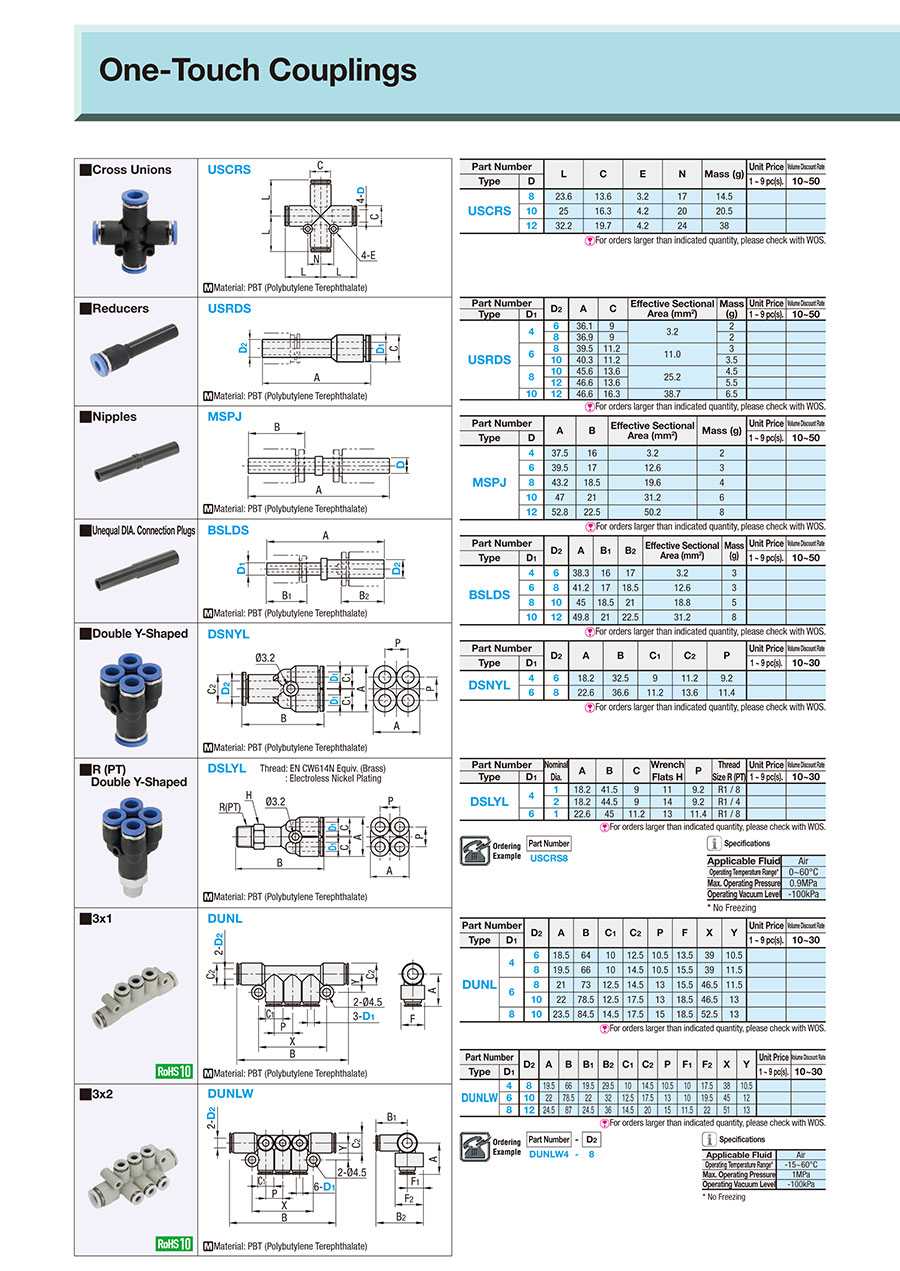

Catalog
