One-Touch Coupling Ball Valve90 Deg. Elbow / Single Handle

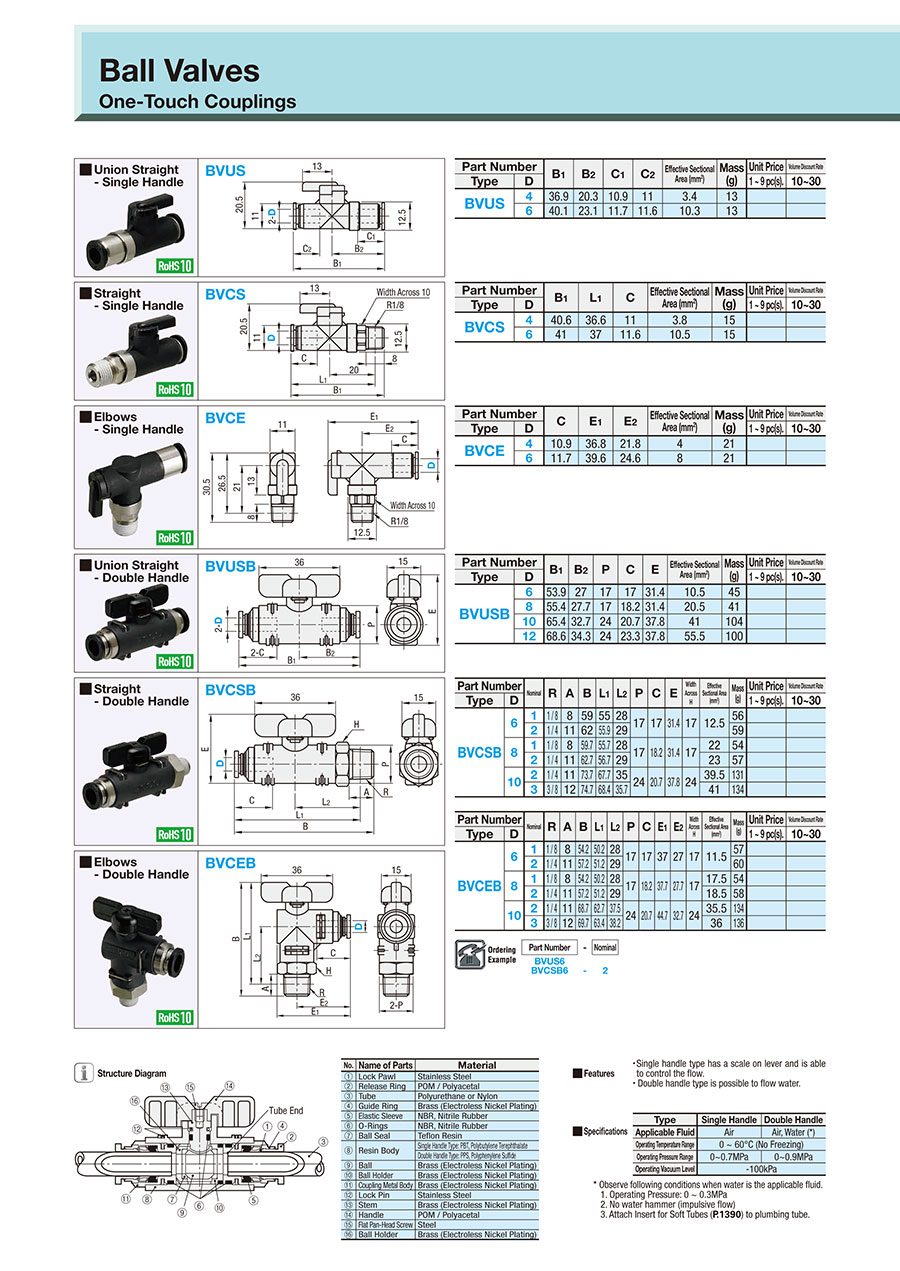

Outline drawing and specifications table
BVCE
Specification Table
| Part Number |
| BVCE6 |
| Part Number | C | E1 | E2 | Effective Sectional Area (mm2) | Mass (g) | |
| Type | D | |||||
| BVCE | 4 | 10.9 | 36.8 | 21.8 | 4 | 21 |
| 6 | 11.7 | 39.6 | 24.6 | 8 | 21 | |
More Information
Basic information
-Ball valve with quick coupling connection. -The type with one handle has a scale on the lever for easy adjustment of the flow rate.
Outline and specifications
Specifications / Overview
Structure Diagram
| No. | Part Name | Material |
| (1) | Lock Pawl | Stainless Steel |
| (2) | Release Ring | POM / Polyacetal |
| (3) | Tube | Polyurethane or Nylon |
| (4) | Guide Ring | Brass (Electroless Nickel Plating) |
| (5) | Elastic Sleeve | NBR, Nitrile Rubber |
| (6) | O-Ring | NBR, Nitrile Rubber |
| (7) | Ball Seal | Teflon Resin |
| (8) | Resin Body | Single Handle: PBT / Polybutylene Terephthalate |
| Double Handle: PPS / Polyphenylenesulfide | ||
| (9) | Ball | Brass (Electroless Nickel Plating) |
| (10) | Ball Housing | Brass (Electroless Nickel Plating) |
| (11) | Coupling Metal Body | Brass (Electroless Nickel Plating) |
| (12) | Lock Pin | Stainless Steel |
| (13) | Stem | Brass (Electroless Nickel Plating) |
| (14) | Handle | POM / Polyacetal |
| (15) | Flat Pan-Head Screw | Steel |
| (16) | Ball Holder | Brass (Electroless Nickel Plating) |
■ Features
·Single handle type has a scale on lever and is
able to control the flow.
·Double handle type makes it possible to circulate water.
■ Specifications
| Type | Single Handle | Double Handle |
| Applicable Fluid | Air | Air, Water (*) |
| Operating Temperature Range | 0 to 60°C (No Freezing) | |
| Operating Pressure Range | 0 to 0.7 MPa | 0 to 0.9 MPa |
| Operating Vacuum Level | -100 kPa | |
* Observe following conditions when water is the applicable fluid.
1. Operating Pressure: 0 to 0.3 MPa
2. No water hammer (impulsive flow).
3. Attach Insert for Soft Tubes to plumbing tube.
