Fluororesin Couplings / Tube Insert
Click image to view enlarged image
Part number:
possible part numbers found.Outline drawing and specifications table

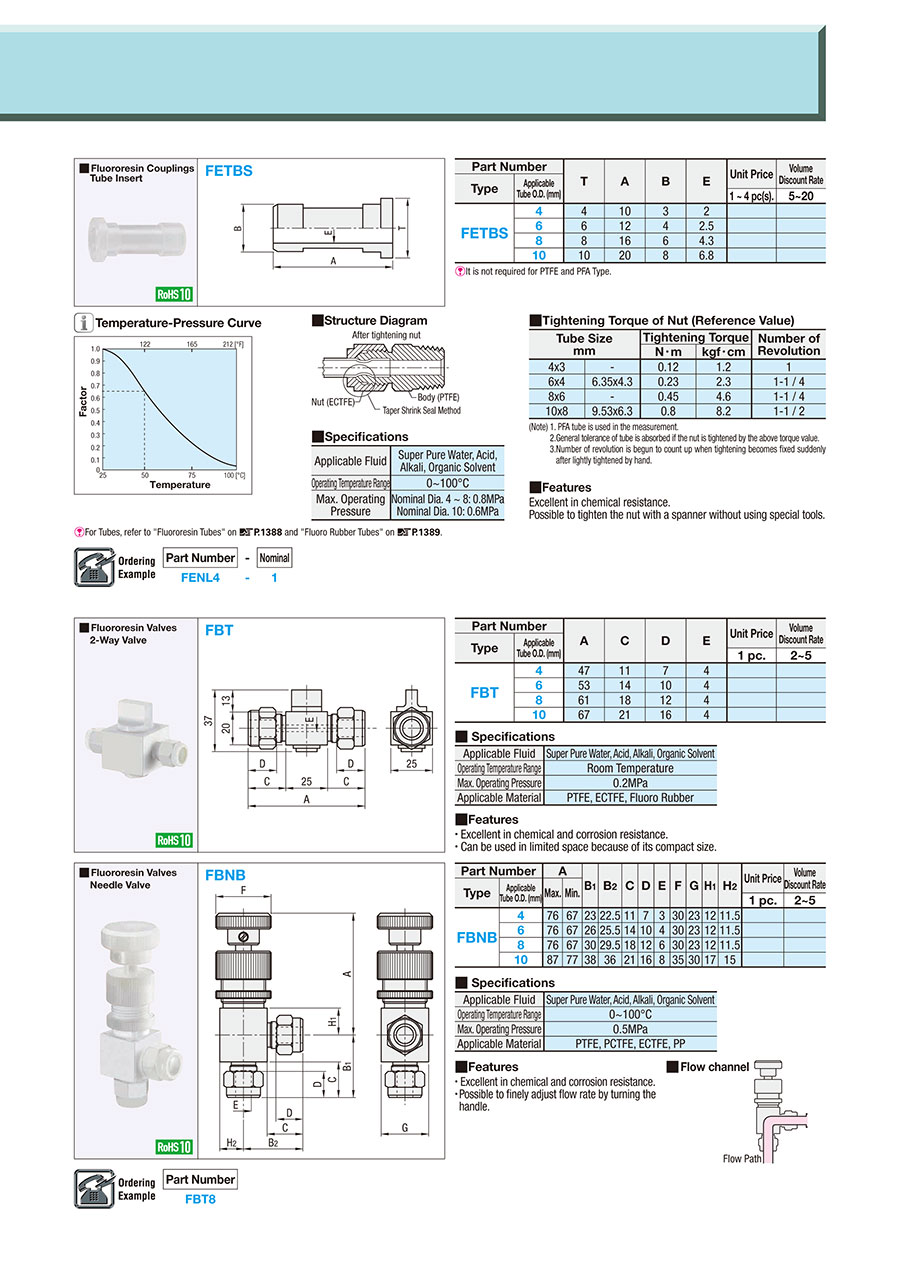

Dimensional Drawings
FETBS
Specification Table
| Part Number | — | Nominal |
| FENL4 | — | 1 |
| Part Number | T | A | B | E | |
| Type | Applicable Tube O.D. (mm) | ||||
| FETBS | 4 | 4 | 10 | 3 | 2 |
| 6 | 6 | 12 | 4 | 2.5 | |
| 8 | 8 | 16 | 6 | 4.3 | |
| 10 | 10 | 20 | 8 | 6.8 | |
[ ! ] Not required for hard tubes such as PTFE and PFA (fluororesin).
More Information
Basic information
No special tools are required for tightening. A full fluoropolymer fitting with high chemical resistance.
Outline and specifications
Specifications / Overview
Temperature-Pressure Curve
■ Structure Diagram
After tightening nut
■ Specifications
After tightening nut
■ Specifications
| Applicable Fluid | Super Pure Water, Acid, Alkali, Organic Solvent |
| Operating Temperature Range | 0 to 100°C |
| Max. Operating Pressure | Nominal Dia. 4 to 8: 0.8 MPa Nominal Dia. 10: 0.6 Mpa |
■Nut Tightening Torque (Reference Value)
| Tube size mm | Tightening Torque | Number of Revolution | ||
| N⋅m | kgf・cm | |||
| 4 × 3 | — | 0.12 | 1.2 | 1 |
| 6 × 4 | 6.35 × 4.3 | 0.23 | 2.3 | 1－1/4 |
| 8 × 6 | — | 0.45 | 4.6 | 1－1/4 |
| 10 × 8 | 9.53 × 6.3 | 0.8 | 8.2 | 1－1/2 |
(*) 1. PFA tube is used in the measurement.
2. General tolerance of tube is absorbed if the nut is tightened by the above torque value.
3. Number of revolution is begun to count up when tightening becomes fixed suddenly after lightly tightened by hand.
■ Features
Excellent in chemical resistance.
Possible to tighten the nut with a spanner without using special tools.
Excellent in chemical resistance.
Possible to tighten the nut with a spanner without using special tools.
