Duct Hoses / Oil Resistant

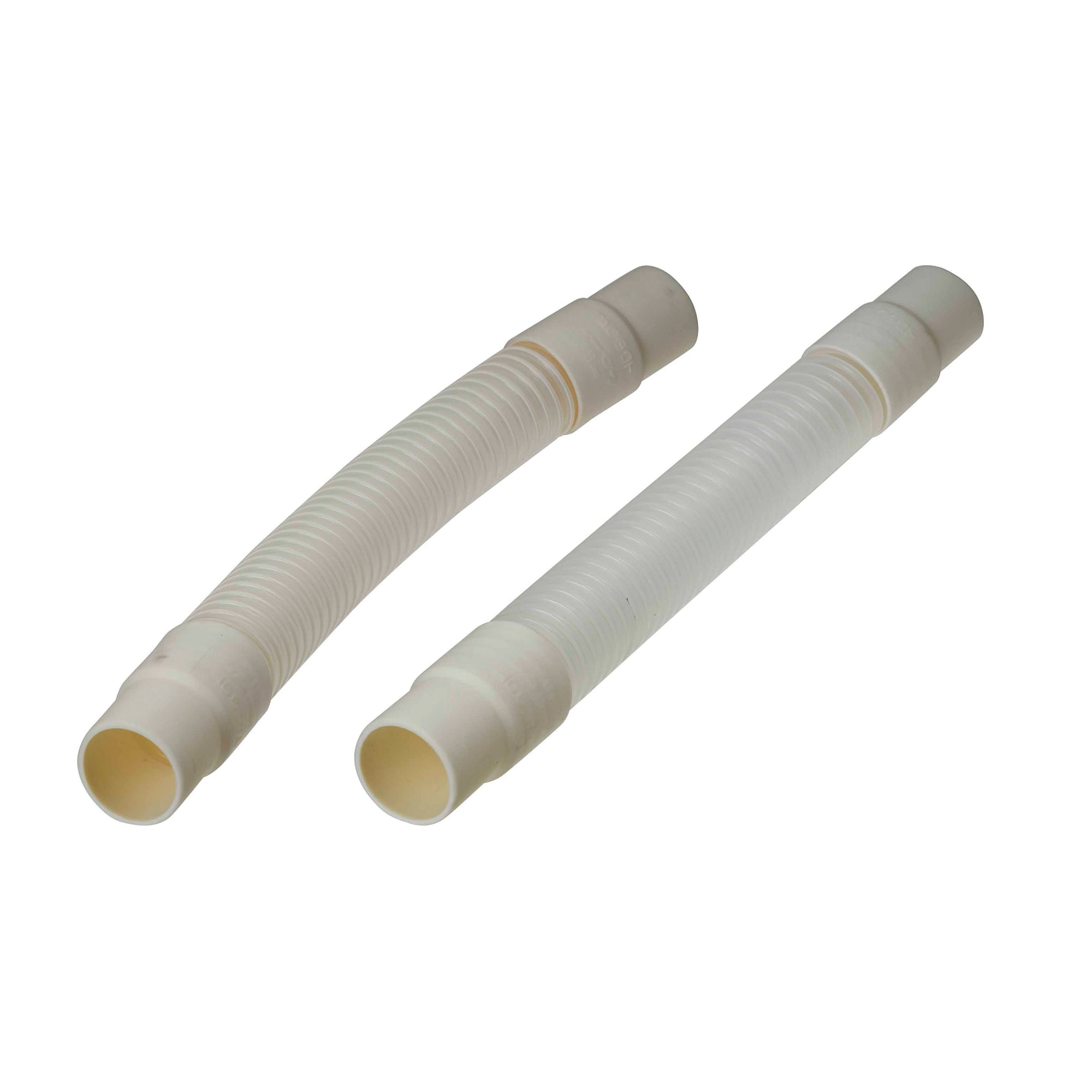

Click on this image to zoom in.
Click on this image to zoom in.
[Features] This product is semi-transparent so you can see what is being transported. [Material] It is made of polypropylene.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

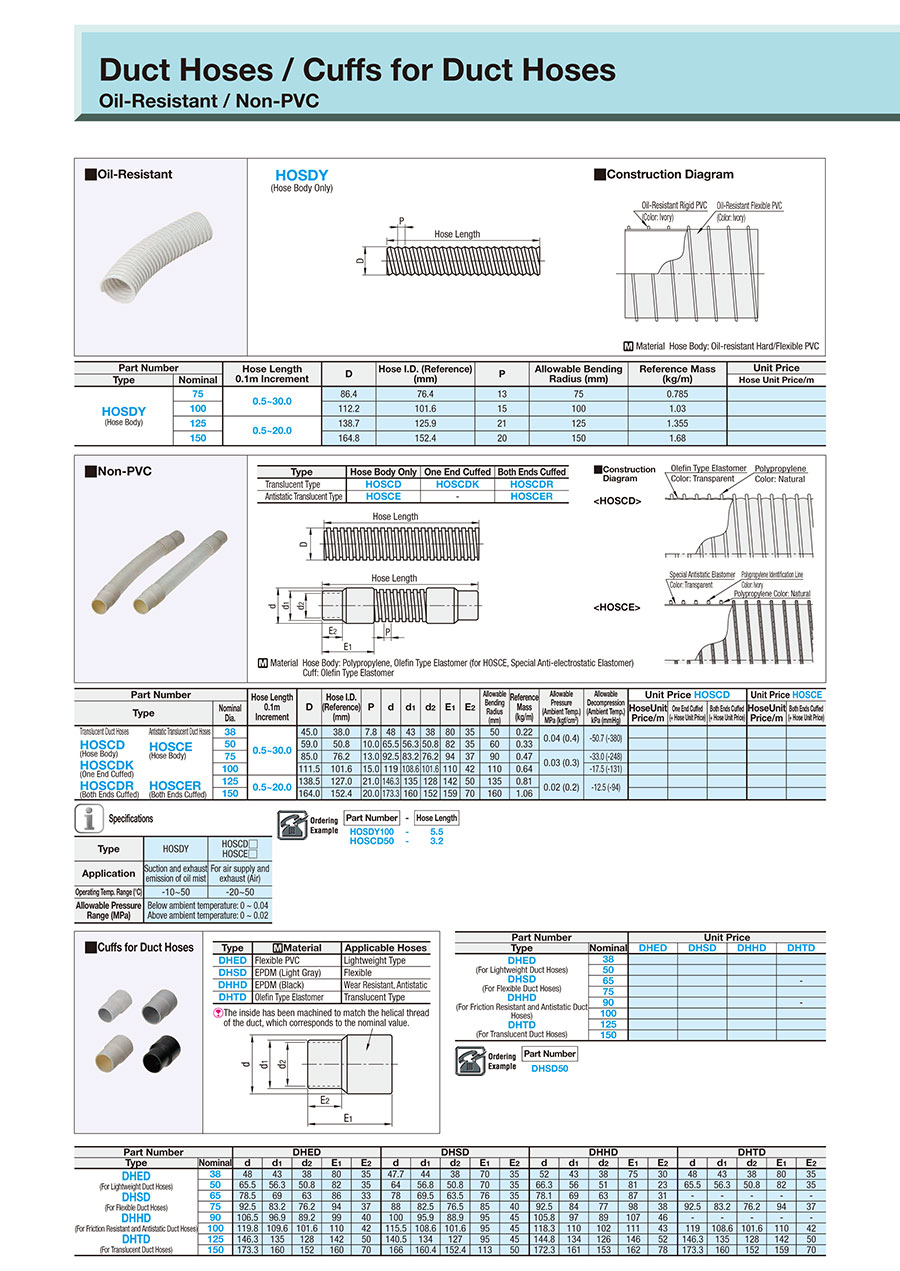

- Catalog
Material Hose Body: Polypropylene, Olefin Type Elastomer (for HOSCE, Special Anti-electrostatic Elastomer)
Cuff: Olefin Type Elastomer
Specifications
| Part Number | - | Hose Length |
| HOSDY100 HOSCD50 | - - | 5.5 3.2 |
| Type | Hose Body Only | One End Cuffed | Both Ends Cuffed |
| Translucent Type | HOSCD | HOSCDK | HOSCDR |
| Antistatic Translucent Type | HOSCE | - | HOSCER |
| Part Number | Hose Length 0.1m Increment | D | Hose I.D. (Reference) (mm) | P | d | d1 | d2 | E1 | E2 | Allowable Bending Radius (mm) | Reference Mass (kg/m) | Allowable Pressure (Ambient Temp.) MPa (kgf/cm2) | Allowable Decompression (Ambient Temp.) kPa (mmHg) | Unit Price HOSCD | Unit Price HOSCE | |||||
| Type | Nominal Dia. | HoseUnit Price/m | One End Cuffed (+ Hose Unit Price) | Both Ends Cuffed (+ Hose Unit Price) | HoseUnit Price/m | Both Ends Cuffed (+ Hose Unit Price) | ||||||||||||||
| Translucent Duct Hoses HOSCD (Hose Body) HOSCDK (One End Cuffed) HOSCDR (Both Ends Cuffed) | Antistatic Translucent Duct Hoses HOSCE (Hose Body) HOSCER (Both Ends Cuffed) | 38 | 0.5~30.0 | 45.0 | 38.0 | 7.8 | 48 | 43 | 38 | 80 | 35 | 50 | 0.22 | 0.04 (0.4) | -50.7 (-380) | |||||
| 50 | 59.0 | 50.8 | 10.0 | 65.5 | 56.3 | 50.8 | 82 | 35 | 60 | 0.33 | ||||||||||
| 75 | 85.0 | 76.2 | 13.0 | 92.5 | 83.2 | 76.2 | 94 | 37 | 90 | 0.47 | 0.03 (0.3) | -33.0 (-248) | ||||||||
| 100 | 111.5 | 101.6 | 15.0 | 119 | 108.6 | 101.6 | 110 | 42 | 110 | 0.64 | -17.5 (-131) | |||||||||
| 125 | 0.5~20.0 | 138.5 | 127.0 | 21.0 | 146.3 | 135 | 128 | 142 | 50 | 135 | 0.81 | 0.02 (0.2) | -12.5 (-94) | |||||||
| 150 | 164.0 | 152.4 | 20.0 | 173.3 | 160 | 152 | 159 | 70 | 160 | 1.06 | ||||||||||
