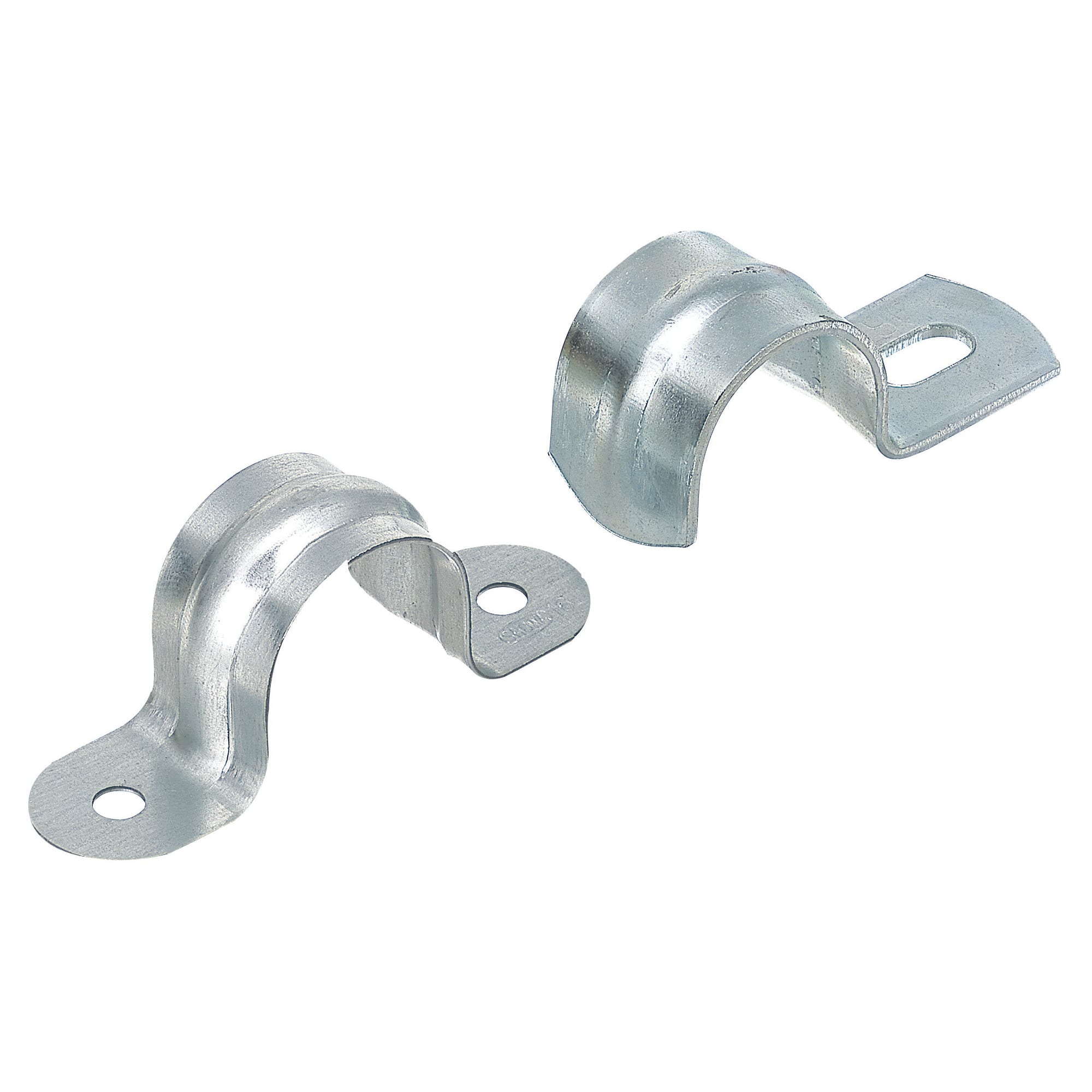

Pipe Supports / Single / Double Saddle Bands
- Promotional pricing ends 30/11/2024
- Volume Discount
- Order quantities extended (D-JIT)
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

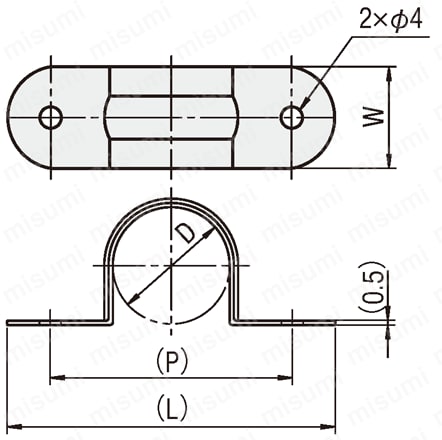

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
| Type | [ M ]Material | [ S ]Surface Treatment | |
| Double-Sided | Single-Sided | ||
| - | KSDLN | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate |
RSDLN | - | EN 1.0330 Equiv. (SGCC) | Hot Zinc Plating |
| - | KSDLS | EN 1.4301 Equiv. | - |
RSDLNS | - | EN 1.4016 Equiv. | - |
Specifications
| Part Number |
| RSDLN15A UB4 UBSU10-M6 |
| Part Number | Applicable Pipe O.D. D | (L) | (P) | W | RSDLN | RSDLNS | |||||
| Type | No. | RSDLN | RSDLNS | RSDLN | RSDLNS | Unit Price | Volume Discount Rate | Unit Price | Volume Discount Rate | ||
| 1 ~ 9 pc(s). | 10 ~ 30 pcs. | 1 ~ 9 pc(s). | 10 ~ 30 pcs. | ||||||||
| RSDLN RSDLNS | 15A | 21.7 | 60 | 60 | 47 | 47 | 19 | ||||
| 20A | 27.2 | 65 | 65 | 52 | 52 | ||||||
| 25A | 34.0 | 73 | 72 | 60 | 59 | 21 | |||||
| 32A | 42.7 | 81 | 86 | 68 | 73 | ||||||
| 40A | 48.6 | 86 | 88 | 73 | 75 | ||||||
| 50A | 60.5 | 100 | 102 | 87 | 89 | ||||||
■ Single-Sided Type
| Part Number | Applicable Pipe O.D.D | (L) | t | W | d | KSDLN | KSDLS | |||||||
| Type | No. | KSDLN | KSDLS | KSDLN | KSDLS | KSDLN | KSDLS | KSDLN | KSDLS | Unit Price | Volume Discount Rate | Unit Price | Volume Discount Rate | |
| 1 ~ 9 pc(s). | 10 ~ 30 pcs. | 1 ~ 9 pc(s). | 10 ~ 30 pcs. | |||||||||||
KSDLN KSDLS | 15A | 21.7 | 45 | 49 | 1.6 | 1 | 25 | 20 | 5×9.5 | 5×8 | ||||
| 20A | 27.2 | 50 | 54.5 | |||||||||||
| 25A | 34 | 57 | 67 | 1.2 | 25 | 6×10 | ||||||||
| 32A | 42.7 | 71 | 75 | |||||||||||
| 40A | 48.6 | 77 | 82 | |||||||||||
| 50A | 60.5 | 89 | 99 | |||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Main Applicable Pipe O.D. (mm) | Material | Surface Treatment | Applicable No. | Single-Sided or Double Sided | |
|---|---|---|---|---|---|---|---|---|---|---|
3.15 € | 1 | Available |
Same day
Stock | 10 | 20 to Less Than 30 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 15A | Single-Sided Type | |
3.40 € 2.38 € | 1 | Available |
Same day
Stock | 10 | 20 to Less Than 30 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 20A | Single-Sided Type | |
3.66 € | 1 | Available | 6 Days | 10 | 30 to Less Than 40 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 25A | Single-Sided Type | |
3.90 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 32A | Single-Sided Type | |
4.16 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 40A | Single-Sided Type | |
4.67 € | 1 | Available | 6 Days | 10 | 60 to Less Than 70 | [Steel] EN 1.0320 Equiv. (hot coiled) | [Chromate Plating] Trivalent Chromate | 50A | Single-Sided Type | |
4.67 € | 1 | Available | 5 Days | 10 | 20 to Less Than 30 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 15A | Single-Sided Type | |
5.04 € | 1 | Available | 5 Days | 10 | 20 to Less Than 30 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 20A | Single-Sided Type | |
5.92 € | 1 | Available | 5 Days | 10 | 30 to Less Than 40 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 25A | Single-Sided Type | |
6.93 € | 1 | Available | 5 Days | 10 | 40 to Less Than 50 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 32A | Single-Sided Type | |
8.06 € | 1 | Available | 5 Days | 10 | 40 to Less Than 50 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 40A | Single-Sided Type | |
9.83 € | 1 | Available | 5 Days | 10 | 60 to Less Than 70 | [Stainless Steel] EN 1.4301 Equiv. | Not Provided | 50A | Single-Sided Type | |
3.40 € | 1 | Available | 6 Days | 10 | 20 to Less Than 30 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 15A | Double-Sided Type | |
3.66 € | 1 | Available | 6 Days | 10 | 20 to Less Than 30 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 20A | Double-Sided Type | |
4.16 € | 1 | Available |
Same day
Stock | 10 | 30 to Less Than 40 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 25A | Double-Sided Type | |
4.41 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 32A | Double-Sided Type | |
5.28 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 40A | Double-Sided Type | |
5.55 € | 1 | Available |
Same day
Stock | 10 | 60 to Less Than 70 | [Steel] EN 1.0330 Equiv. (SGCC) | [Zinc Plating] Hot Zinc Plating | 50A | Double-Sided Type | |
4.41 € | 1 | Available |
Same day
Stock | 10 | 20 to Less Than 30 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 15A | Double-Sided Type | |
4.78 € | 1 | Available | 6 Days | 10 | 20 to Less Than 30 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 20A | Double-Sided Type | |
5.17 € | 1 | Available | 6 Days | 10 | 30 to Less Than 40 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 25A | Double-Sided Type | |
5.42 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 32A | Double-Sided Type | |
5.65 € | 1 | Available | 6 Days | 10 | 40 to Less Than 50 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 40A | Double-Sided Type | |
5.92 € | 1 | Available | 6 Days | 10 | 60 to Less Than 70 | [Stainless Steel] EN 1.4016 Equiv. | Not Provided | 50A | Double-Sided Type |
