Elbow-Heat and Cold Retention Pipe Cover
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

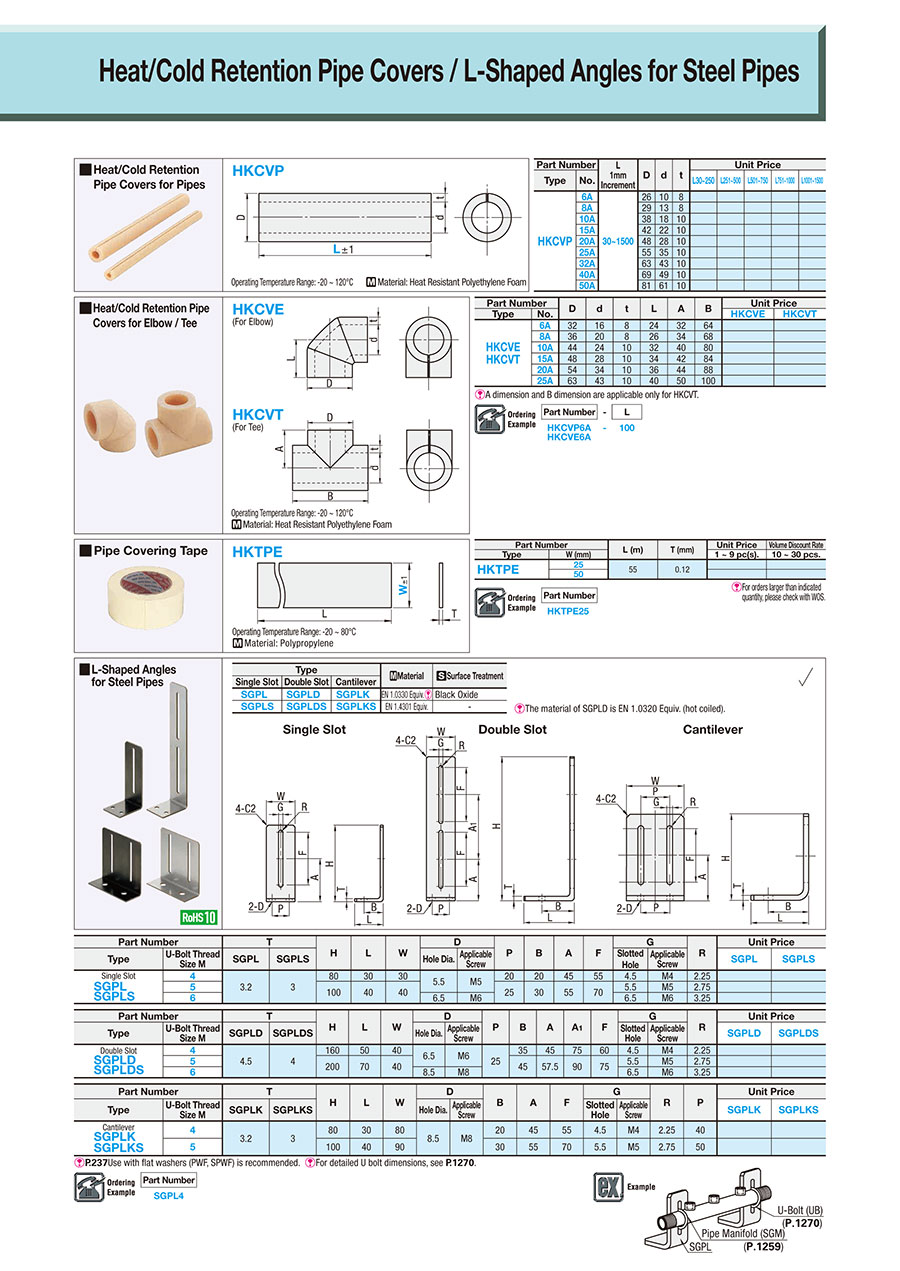

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Operating Temperature Range: -20 ~ 120°C
Material: Heat Resistant Polyethylene Foam
Specifications
| Part Number | - | L |
| HKCVP6A HKCVE6A | - | 100 |
| Part Number | D | d | t | L | A | B | Unit Price | ||
| Type | No. | HKCVE | HKCVT | ||||||
| HKCVE HKCVT | 6A | 32 | 16 | 8 | 24 | 32 | 64 | ||
| 8A | 36 | 20 | 8 | 26 | 34 | 68 | |||
| 10A | 44 | 24 | 10 | 32 | 40 | 80 | |||
| 15A | 48 | 28 | 10 | 34 | 42 | 84 | |||
| 20A | 54 | 34 | 10 | 36 | 44 | 88 | |||
| 25A | 63 | 43 | 10 | 40 | 50 | 100 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HKCVE6A |
| HKCVE8A |
| HKCVE10A |
| HKCVE15A |
| HKCVE20A |
| HKCVE25A |
| HKCVT6A |
| HKCVT8A |
| HKCVT10A |
| HKCVT15A |
| HKCVT20A |
| HKCVT25A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Typical Applicable Pipe O.D. (mm) | Applicable No. | Shape | |
|---|---|---|---|---|---|---|---|---|
5.92 € | 1 | Available | 5 Days | - | 10 < 20 | 6A | For Elbows | |
6.17 € | 1 | Available | 5 Days | 10 | 10 < 20 | 8A | For Elbows | |
7.18 € | 1 | Available | 5 Days | 10 | 20 < 30 | 10A | For Elbows | |
7.18 € | 1 | Available | 5 Days | - | 20 < 30 | 15A | For Elbows | |
8.57 € | 1 | Available | 5 Days | 10 | 30 < 40 | 20A | For Elbows | |
9.19 € | 1 | Available | 5 Days | 10 | 30 < 40 | 25A | For Elbows | |
6.17 € | 1 | Available | 5 Days | 10 | 10 < 20 | 6A | For Tee | |
7.31 € | 1 | Available | 5 Days | 10 | 10 < 20 | 8A | For Tee | |
7.81 € | 1 | Available | 5 Days | 10 | 20 < 30 | 10A | For Tee | |
8.06 € | 1 | Available | 5 Days | 10 | 20 < 30 | 15A | For Tee | |
9.58 € | 1 | Available | 5 Days | 10 | 30 < 40 | 20A | For Tee | |
10.45 € | 1 | Available | 5 Days | 10 | 30 < 40 | 25A | For Tee |
Loading...
Basic information
| Type | Heat-Retention Material | Material | Heat Resistant Polyethylene Foam | Surface Treatment | Not Provided |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
