Hydraulic Fittings / 90 Deg. Elbow / PT Threaded / PT Threaded

Hydraulic Fittings / 90 Deg. Elbow / PT Threaded / PT Threaded
  • Hydraulic Fittings / 90 Deg. Elbow / PT Threaded / PT Threaded
  • Hydraulic Fittings / 90 Deg. Elbow / PT Threaded / PT Threaded

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

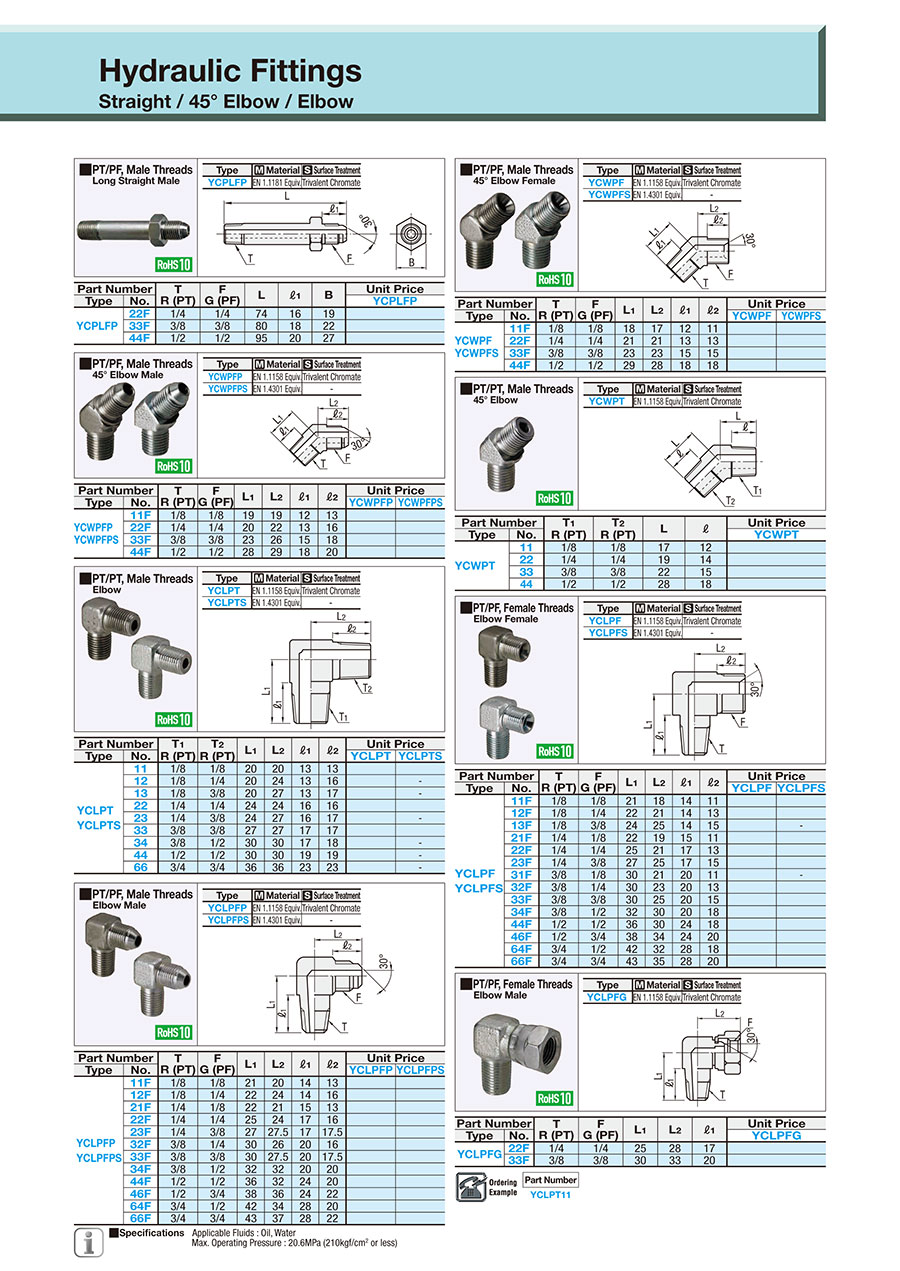

Outline drawing and specifications table

Hydraulic Fittings - Elbow Type, PT/PT, Male Threads: Related Image


Type[M] Material[S] Surface Treatment
YCLPTEN 1.1158 Equiv.Trivalent Chromate
YCLPTSEN 1.4301 Equiv.—



Specification Table

Part Number
YCLPT11
Part NumberT1
R (PT)		T2
R (PT)		L1L2ℓ1ℓ2
TypeNo.
YCLPT111/81/820201313
121/81/420241316
131/83/820271317
221/41/424241616
231/43/824271617
333/83/827271717
343/81/230301718
441/21/230301919
663/43/436362323
Part NumberT1
R (PT)		T2
R (PT)		L1L2ℓ1ℓ2
TypeNo.
YCLPTS111/81/820201313
121/81/420241316
131/83/820271317
221/41/424241616
231/43/824271617
333/83/827271717
343/81/230301718
441/21/230301919
663/43/436362323

Specifications

  • Applicable Fluids: Oil, Water
  • Max. Operating Pressure: 20.6 MPa (210 kgf/cm2 or less)

Part number list

Number of items
  • 1
    • Part number
    YCLPT11
    YCLPT12
    YCLPT13
    YCLPT22
    YCLPT23
    YCLPT33
    YCLPT34
    YCLPT44
    YCLPT66
    YCLPTS11
    YCLPTS22
    YCLPTS33

    Material

    Screw Nominal T

    Screw Nominal F/T2

    		RoHS?Minimum order quantity
    [Steel] EN 1.1158 Equiv.
    R1/8
    R1/8
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R1/8
    R1/4
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R1/8
    R3/8
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R1/4
    R1/4
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R1/4
    R3/8
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R3/8
    R3/8
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R3/8
    R1/2
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R1/2
    R1/2
    10
    1 pieces
    [Steel] EN 1.1158 Equiv.
    R3/4
    R3/4
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    R1/8
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/4
    R1/4
    10
    1 pieces
    EN 1.4301 Equiv.
    R3/8
    R3/8
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    5.04 €
    ( 6.00 € )
    5 working days
    7.56 €
    ( 9.00 € )
    5 working days
    8.82 €
    ( 10.50 € )
    5 working days
    8.82 €
    ( 10.50 € )
    5 working days
    10.07 €
    ( 11.98 € )
    5 working days
    10.71 €
    ( 12.74 € )
    5 working days
    12.22 €
    ( 14.54 € )
    5 working days
    13.23 €
    ( 15.74 € )
    5 working days
    14.86 €
    ( 17.68 € )
    5 working days
    13.85 €
    ( 16.48 € )
    5 working days
    14.48 €
    ( 17.23 € )
    5 working days
    20.79 €
    ( 24.74 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] An adapter fitting for hydraulic hoses. -The fluids used are oil and water. -Maximum working pressure is 20.6 MPa (210 kgf/cm2 or less).

    Outline and specifications

    Specifications/Overview

    ■Specifications Applicable Fluids: Oil, Water
        Max. Operating Pressure 20.6 MPa (210 kgf/cm2 or less)
