Throttle Valves / Union Type
Click image to view enlarged image
Part number:

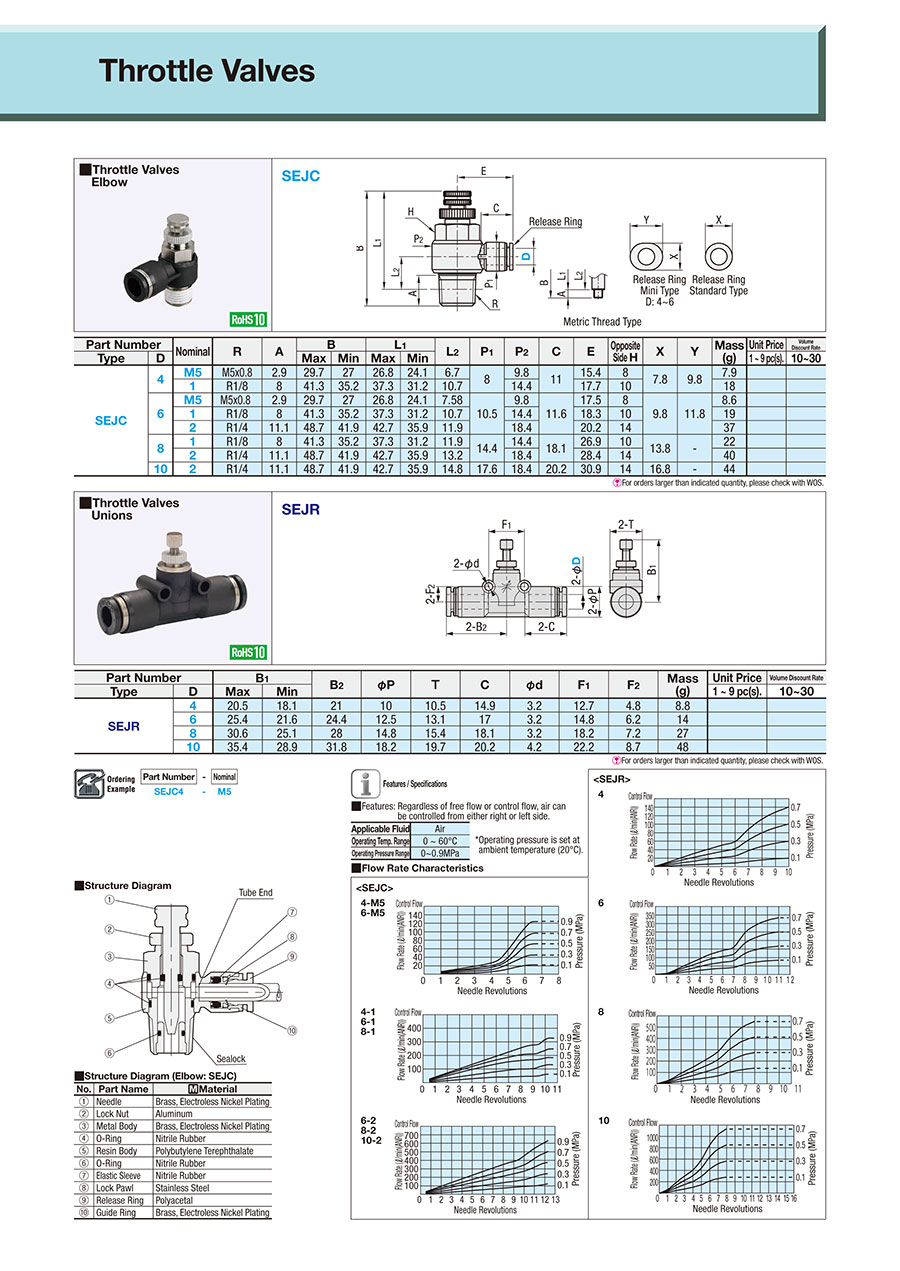

possible part numbers found.Outline drawing and specifications table
| SEJR | ■ Specifications | |||
 | Applicable Fluid | Air | ||
| Operating Temp, Range | 0 to 60°C | |||
| Operating Pressure Range | 0 to 0.9 MPa | |||
| * Operating pressure is set at ambient temperature (20°C). | ||||
Specification Table
| Part Number |
| SEJR4 |
| Part Number | B1 | B2 | P | T | C | d | F1 | F2 | Mass (g) | ||
| Type | D | max | min | ||||||||
| SEJR | 4 | 20.5 | 18.1 | 21 | 10 | 10.5 | 14.9 | 3.2 | 12.7 | 4.8 | 8.8 |
| 6 | 25.4 | 21.6 | 24.4 | 12.5 | 13.1 | 17 | 3.2 | 14.8 | 6.2 | 14 | |
| 8 | 30.6 | 25.1 | 28 | 14.8 | 15.4 | 18.1 | 3.2 | 18.2 | 7.2 | 27 | |
| 10 | 35.4 | 28.9 | 31.8 | 18.2 | 19.7 | 20.2 | 4.2 | 22.2 | 8.7 | 48 | |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
5.28 € ( 6.28 € ) | Stock item: 1 working dayAvailable for same-day shipping |
8.68 € ( 10.33 € ) | Stock item: 1 working dayAvailable for same-day shipping |
10.20 € ( 12.14 € ) | 5 working days |
13.10 € ( 15.59 € ) | 5 working days |
More Information
Basic information
Valve that can adjust left and right air without free flow and controlled flow restrictions.
Outline and specifications
Specifications/Overview
■ Features
Regardless of free flow or control flow, air can be controlled from either right or left side.
■Flow Rate Characteristics
[SEJR]
Regardless of free flow or control flow, air can be controlled from either right or left side.
■Flow Rate Characteristics
[SEJR]
