    Vacuum Generator / with Vacuum Break Function

    Vacuum Generator / with Vacuum Break Function

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

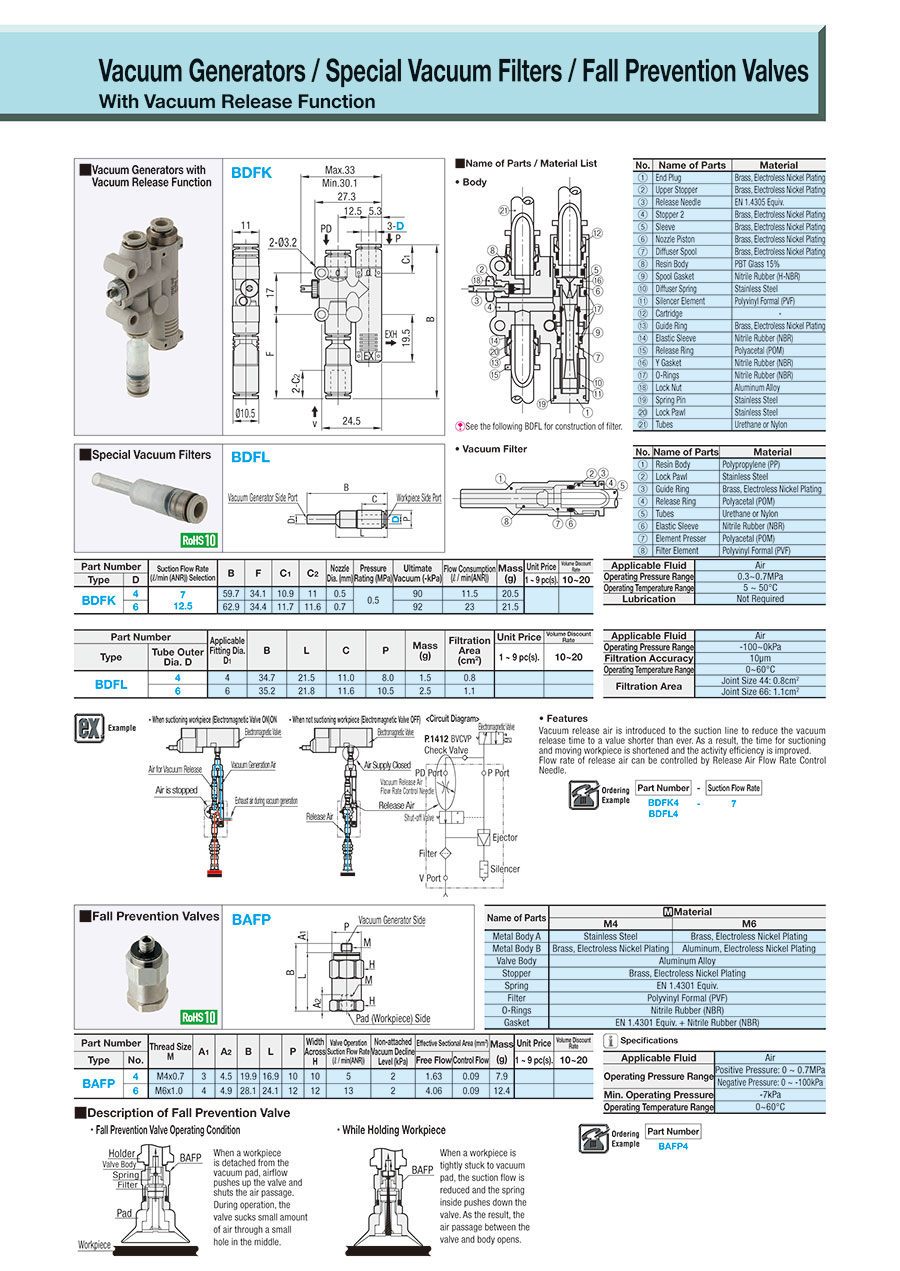

    Outline drawing and specifications table

    BDFK
    ■Name of Parts / Material List
    · Main Body
    No.Part NameMaterial
    (1)End PlugBrass, Electroless Nickel Plating
    (2)Upper StopperBrass, Electroless Nickel Plating
    (3)Release NeedleEN 1.4305 Equiv.
    (4)Stopper 2Brass, Electroless Nickel Plating
    (5)SleeveBrass, Electroless Nickel Plating
    (6)Nozzle PistonBrass, Electroless Nickel Plating
    (7)Diffuser SpoolBrass, Electroless Nickel Plating
    (8)Resin BodyPBT Glass 15%
    (9)Spool GasketNitrile Rubber (H－NBR)
    (10)Diffuser SpringStainless Steel
    (11)Silencer ElementPolyvinyl Formal (PVF)
    (12)Cartridge—
    (13)Guide RingBrass, Electroless Nickel Plating
    (14)Elastic SleeveNitrile Rubber (NBR)
    (15)Release RingPolyacetal (POM)
    (16)Y GasketNitrile Rubber (NBR)
    (17)O-RingNitrile Rubber (NBR)
    (18)Lock NutAluminum Alloy
    (19)Spring PinStainless Steel
    (20)Lock PawlStainless Steel
    (21)TubeUrethane or Nylon
    [ ! ] See the following BDFL for construction of filter.

    Specification Table

    Part Number—Suction Flow Rate
    BDFK4—7
    Part NumberSuction Flow Rate
    (ℓ/min (ANR)) Selection    		BFC1C2Nozzle
    Dia. (mm)    		Rated Pressure
    (MPa)    		Ultimate Vacuum
    (−kPa)    		Flow Consumption
    (ℓ/min (ANR))    		Mass
    (g)
    TypeD
    BDFK47
    12.5
    59.7
    34.1
    10.9
    11
    0.5
    0.5
    90
    11.5
    20.5
    6
    62.9
    34.4
    11.7
    11.6
    0.7
    92
    23
    21.5

    Part number list

    Number of items
  • 1
    • Part number
    BDFK4-7
    BDFK4-12.5
    BDFK6-7
    BDFK6-12.5

    Ultimate Vacuum

    (kPa)

    Flow Consumption

    (l/min)

    [D] Vacuum Port One-Touch Fitting Size

    [D] Air Supply Port One-Touch Fitting Size

    Suction Flow

    (l/min)

    Nozzle Diameter

    Overall Length B

    (mm)

    		Minimum order quantity
    -90
    11.5
    4
    4
    7
    0.5mm
    59.7
    1 pieces
    -92
    23
    4
    4
    12.5
    0.7mm
    62.9
    1 pieces
    -90
    11.5
    6
    6
    7
    0.5mm
    59.7
    1 pieces
    -92
    23
    6
    6
    12.5
    0.7mm
    62.9
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    42.57 €
    ( 50.66 € )
    5 working days
    42.57 €
    ( 50.66 € )
    5 working days
    42.57 €
    ( 50.66 € )
    Stock item: 1 working dayAvailable for same-day shipping
    42.57 €
    ( 50.66 € )
    5 working days
  • 1

    • More Information

    Basic information

    -This product adds vacuum breaking air to the suction line to shorten the vacuum breaking time compared to conventional products, reducing the time required to suck and move the workpiece and improving workability. The crushing air flow rate can be adjusted with the crushing air flow rate adjustment needle.

    Outline and specifications

    Specifications / Overview

    ◦ Features
    Vacuum release air is introduced to the suction line to reduce the vacuum release time to a value shorter than ever. As a result, the time for suctioning and moving workpiece is shortened and the activity efficiency is improved.
    Flow rate of release air can be controlled by Release Air Flow Rate Control Needle.
    Applicable FluidAir
    Operating Pressure Range0.3 to 0.7 MPa
    Operating Temperature Range5 to 50°C
    LubricationNot Required

    Example

    ·While Holding Workpiece
      (Electromagnetic Valve ON)    		·When not suctioning workpiece[Schematics]
      (Electromagnetic Valve OFF)
