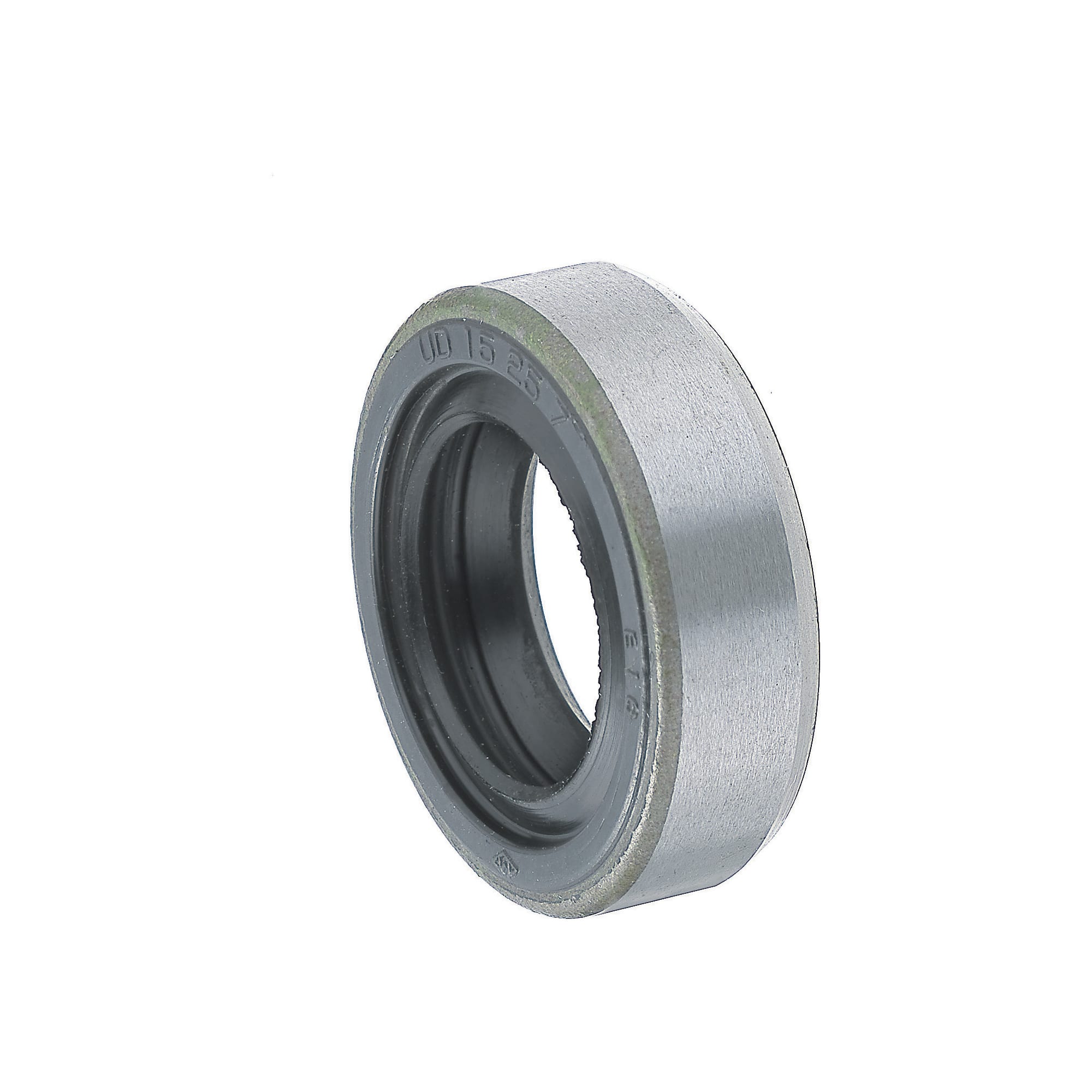

Oil Free Seals / For Rotary Motion
Part number:

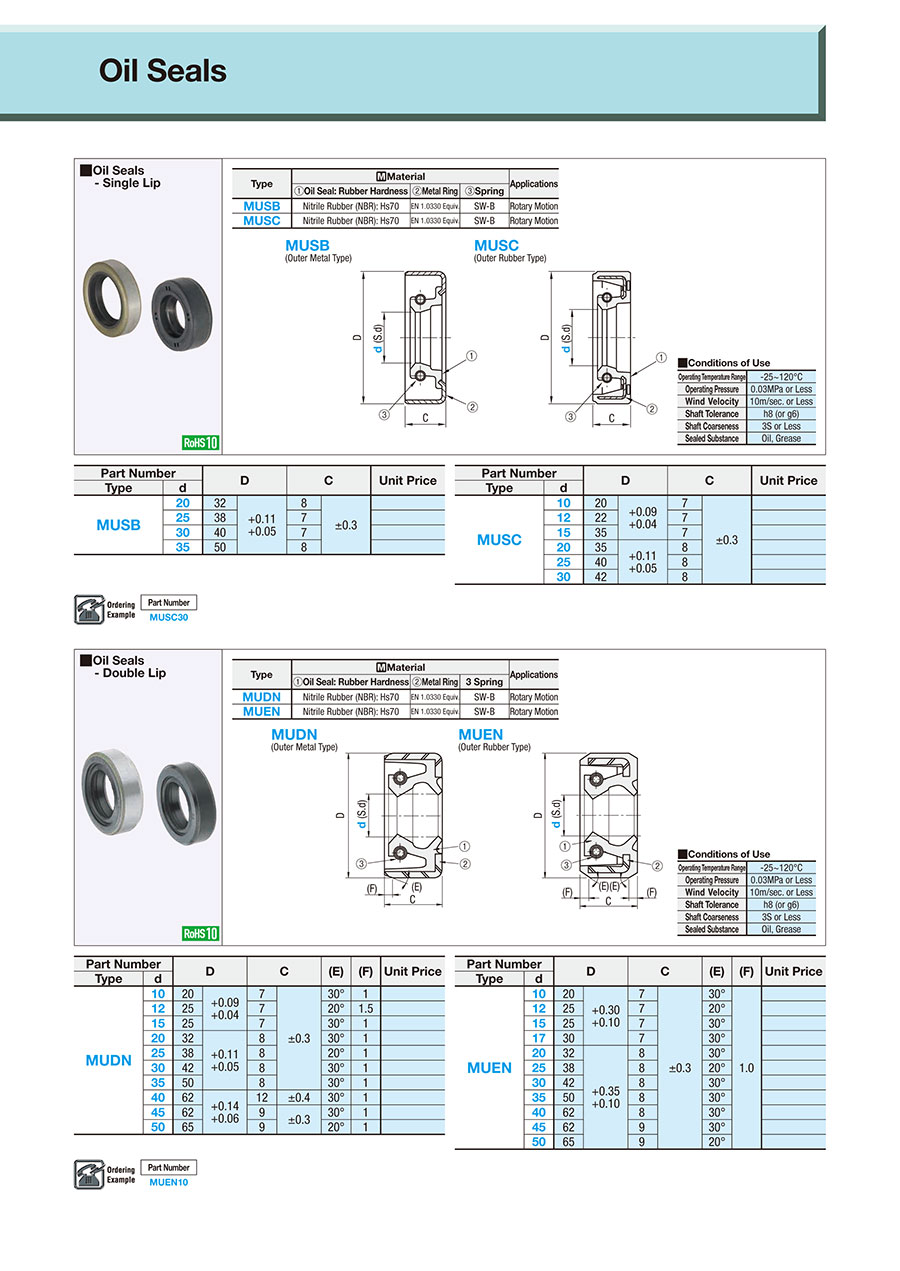

possible part numbers found.Outline drawing and specifications table
MUDN
(Outer Metal Type)
MUEN
(Outer Rubber Type)
| Type | [M] Material | Applications: | ||
| Oil Seal: Rubber Hardness | Metal Ring | 3 springs | ||
| MUDN | Nitrile Rubber (NBR): Hs70 | EN 1.0330 Equiv. | SW－B | Rotary Motion |
| MUEN | Nitrile Rubber (NBR): Hs70 | EN 1.0330 Equiv. | SW－B | Rotary Motion |
Specification Table
| Part Number |
| MUEN10 |
| Part Number | D | C | (E) | (F) | |||
| Type | d | ||||||
| MUDN | 10 | 20 | +0.09 +0.04 | 7 | ±0.3 | 30° | 1 |
| 12 | 25 | 7 | 20° | 1.5 | |||
| 15 | 25 | 7 | 30° | 1 | |||
| 20 | 32 | +0.11 +0.05 | 8 | 30° | 1 | ||
| 25 | 38 | 8 | 20° | 1 | |||
| 30 | 42 | 8 | 30° | 1 | |||
| 35 | 50 | 8 | 30° | 1 | |||
| 40 | 62 | +0.14 +0.06 | 12 | ±0.4 | 30° | 1 | |
| 45 | 62 | 9 | ±0.3 | 30° | 1 | ||
| 50 | 65 | 9 | 20° | 1 | |||
| Part Number | D | C | (E) | (F) | |||
| Type | d | ||||||
| MUEN | 10 | 20 | +0.30 +0.10 | 7 | ±0.3 | 30° | 1.0 |
| 12 | 25 | 7 | 20° | ||||
| 15 | 25 | 7 | 30° | ||||
| 17 | 30 | 7 | 30° | ||||
| 20 | 32 | +0.35 +0.10 | 8 | 30° | |||
| 25 | 38 | 8 | 20° | ||||
| 30 | 42 | 8 | 30° | ||||
| 35 | 50 | 8 | 30° | ||||
| 40 | 62 | 8 | 30° | ||||
| 45 | 62 | 9 | 30° | ||||
| 50 | 65 | 9 | 20° | ||||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
3.40 € ( 4.05 € ) | 5 working days |
4.03 € ( 4.80 € ) | 5 working days |
3.66 € ( 4.36 € ) | 5 working days |
4.03 € ( 4.80 € ) | 5 working days |
4.27 €1.49 € ( 1.77 € ) | Stock item: 1 working dayAvailable for same-day shipping |
4.78 € ( 5.69 € ) | 5 working days |
5.28 € ( 6.28 € ) | 5 working days |
6.80 €2.24 € ( 2.67 € ) | Stock item: 1 working dayAvailable for same-day shipping |
6.80 € ( 8.09 € ) | 5 working days |
7.56 € ( 9.00 € ) | 5 working days |
3.78 € ( 4.50 € ) | 5 working days |
3.78 € ( 4.50 € ) | 5 working days |
3.78 € ( 4.50 € ) | 5 working days |
4.16 € ( 4.95 € ) | 5 working days |
4.16 € ( 4.95 € ) | 5 working days |
4.54 € ( 5.40 € ) | 5 working days |
5.28 € ( 6.28 € ) | 5 working days |
5.42 € ( 6.45 € ) | 5 working days |
5.79 € ( 6.89 € ) | 5 working days |
6.17 € ( 7.34 € ) | 5 working days |
6.17 € ( 7.34 € ) | 5 working days |
More Information
Basic information
[Features] Double lip oil seals. [Material] Nitrile rubber (NBR).
Outline and specifications
Specifications / Overview
■Conditions of Use
| Operating Temperature Range | －25 to 120°C |
| Operating Pressure | 0.03 MPa or less |
| Circumferential Speed | 10m/sec. or Less |
| Shaft Tolerance | h8 (g6 possible) |
| Shaft Coarseness | 3S or less |
| Sealed Substance | Oil, Grease |
