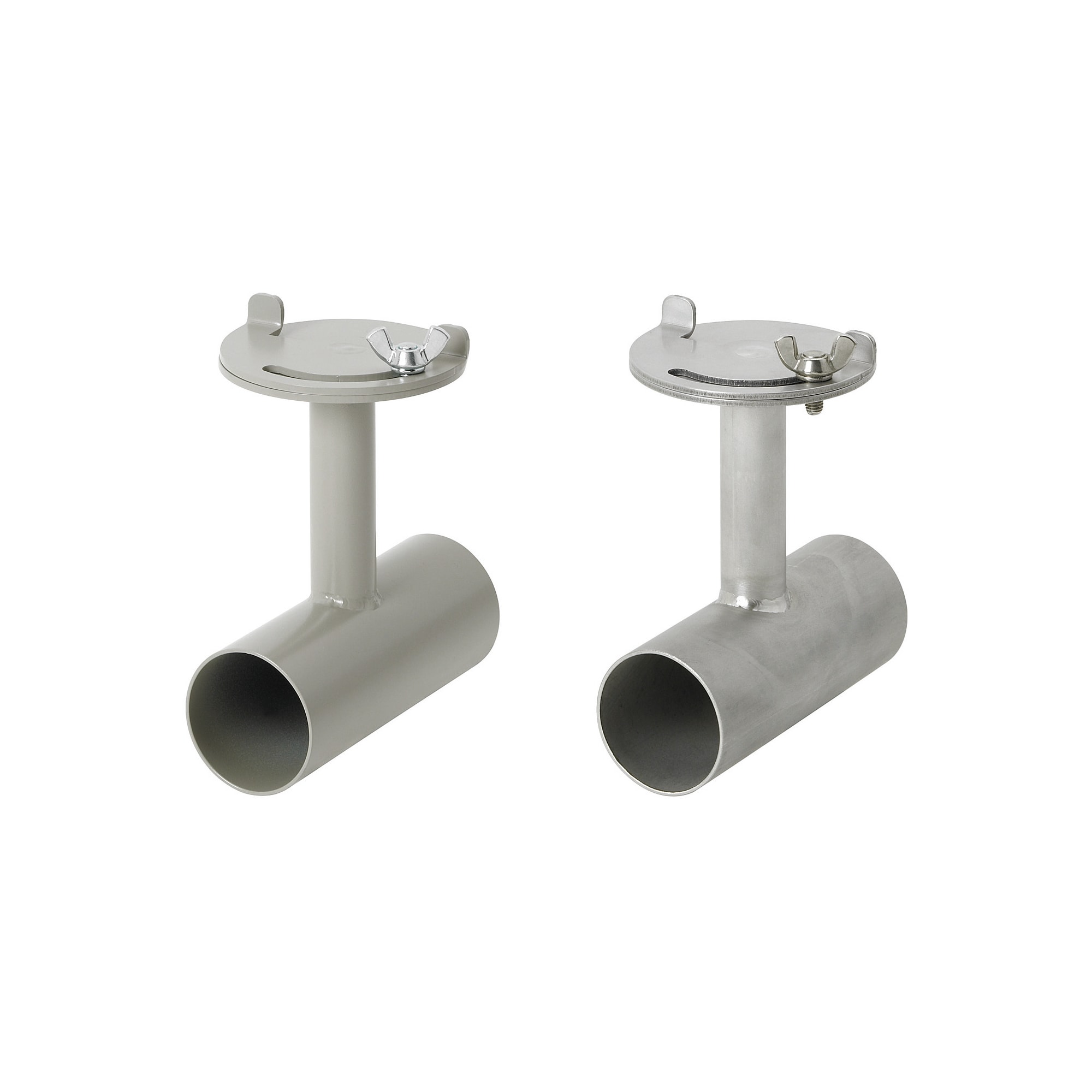

Aluminum Duct Hose Items / Dampers

Mouse over image to enlarge

CatalogP.2-1328

Part number:

Still undefined. 42 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Aluminum Duct Hose Items/Dampers:Related Image

Type			Material	Surface Treatment
For Aluminum Duct Hoses
No Flange	Flanged	Double Flanged
HOANM	HOANPM	HOANPFM	EN 1.0038 Equiv.	Baked Acrylic Paint
HOAN	HOANP	HOANFP	EN 1.4301 Equiv.	-

Specifications

Part Number

HORM50-65

Part Number		D	A	B	C	D₁	P.C.D.	d₁
Type	Nominal Dia.
For Aluminum Duct Hoses (No Flange) HOANM HOAN (Flanged) HOANPM HOANP (Double Flanged) HOANPFM HOANFP	38	38	99	41	75	66	52	6.6
	50	48.5				79	65
	65	63.5				91.5	77.5
	75	75	119	51		111	94	9.0
	100	98				136	119
	125	124	150	66		168	148
	150	149				193	173

Part number list

Number of items

Part number

Material

Type

Nominal Dia.

(Ø)

RoHS?

Minimum order quantity

EN 1.4301 Equiv.	No Flange	38	10	1 pieces
EN 1.4301 Equiv.	No Flange	50	10	1 pieces
EN 1.4301 Equiv.	No Flange	65	10	1 pieces
EN 1.4301 Equiv.	No Flange	75	10	1 pieces
EN 1.4301 Equiv.	No Flange	100	10	1 pieces
EN 1.4301 Equiv.	No Flange	125	10	1 pieces
EN 1.4301 Equiv.	No Flange	150	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	38	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	50	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	65	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	75	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	100	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	125	10	1 pieces
EN 1.4301 Equiv.	Double Flanged	150	10	1 pieces
EN 1.0038 Equiv.	No Flange	38	10	1 pieces
EN 1.0038 Equiv.	No Flange	50	10	1 pieces
EN 1.0038 Equiv.	No Flange	65	10	1 pieces
EN 1.0038 Equiv.	No Flange	75	10	1 pieces
EN 1.0038 Equiv.	No Flange	100	10	1 pieces
EN 1.0038 Equiv.	No Flange	125	10	1 pieces
EN 1.0038 Equiv.	No Flange	150	10	1 pieces
EN 1.4301 Equiv.	Flanged	38	10	1 pieces
EN 1.4301 Equiv.	Flanged	50	10	1 pieces
EN 1.4301 Equiv.	Flanged	65	10	1 pieces
EN 1.4301 Equiv.	Flanged	75	10	1 pieces
EN 1.4301 Equiv.	Flanged	100	10	1 pieces
EN 1.4301 Equiv.	Flanged	125	10	1 pieces
EN 1.4301 Equiv.	Flanged	150	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	38	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	50	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	65	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	75	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	100	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	125	10	1 pieces
EN 1.0038 Equiv.	Double Flanged	150	10	1 pieces
EN 1.0038 Equiv.	Flanged	38	10	1 pieces
EN 1.0038 Equiv.	Flanged	50	10	1 pieces
EN 1.0038 Equiv.	Flanged	65	10	1 pieces
EN 1.0038 Equiv.	Flanged	75	10	1 pieces
EN 1.0038 Equiv.	Flanged	100	10	1 pieces
EN 1.0038 Equiv.	Flanged	125	10	1 pieces
EN 1.0038 Equiv.	Flanged	150	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

159.31 € ( 189.58 € )	5 working days
166.50 € ( 198.13 € )	5 working days
168.76 € ( 200.82 € )	5 working days
170.03 € ( 202.34 € )	5 working days
178.20 € ( 212.06 € )	5 working days
238.77 € ( 284.14 € )	5 working days
344.70 € ( 410.19 € )	5 working days
217.26 € ( 258.54 € )	5 working days
227.69 € ( 270.95 € )	5 working days
229.33 € ( 272.90 € )	5 working days
234.62 € ( 279.20 € )	5 working days
239.16 € ( 284.60 € )	5 working days
351.87 € ( 418.73 € )	5 working days
461.44 € ( 549.11 € )	5 working days
84.89 € ( 101.02 € )	5 working days
88.16 € ( 104.91 € )	5 working days
89.17 € ( 106.11 € )	5 working days
90.18 € ( 107.31 € )	5 working days
93.07 € ( 110.75 € )	5 working days
139.16 € ( 165.60 € )	5 working days
175.69 € ( 209.07 € )	5 working days
197.98 € ( 235.60 € )	5 working days
207.30 € ( 246.69 € )	5 working days
209.18 € ( 248.92 € )	5 working days
213.09 € ( 253.58 € )	5 working days
218.89 € ( 260.48 € )	5 working days
314.22 € ( 373.92 € )	5 working days
422.53 € ( 502.81 € )	5 working days
105.67 € ( 125.75 € )	5 working days
108.31 € ( 128.89 € )	5 working days
112.21 € ( 133.53 € )	5 working days
107.93 € ( 128.44 € )	5 working days
112.08 € ( 133.38 € )	5 working days
181.87 € ( 216.43 € )	5 working days
235.89 € ( 280.71 € )	5 working days
98.74 € ( 117.50 € )	5 working days
101.62 € ( 120.93 € )	Stock item: 1 working dayAvailable for same-day shipping
104.53 € ( 124.39 € )	5 working days
102.01 € ( 121.39 € )	5 working days
105.79 € ( 125.89 € )	5 working days
167.62 € ( 199.47 € )	15 working days
215.86 € ( 256.87 € )	5 working days

Basic information

[Features] Pipe section for aluminium channels. [Material] EN 1.0038 Equiv., EN 1.4301 Equiv. (sintered).

Outline and specifications

More Information

■ Specifications
· Operating Temperature Range: 0 ~ 160°C

Catalog

Products homepage

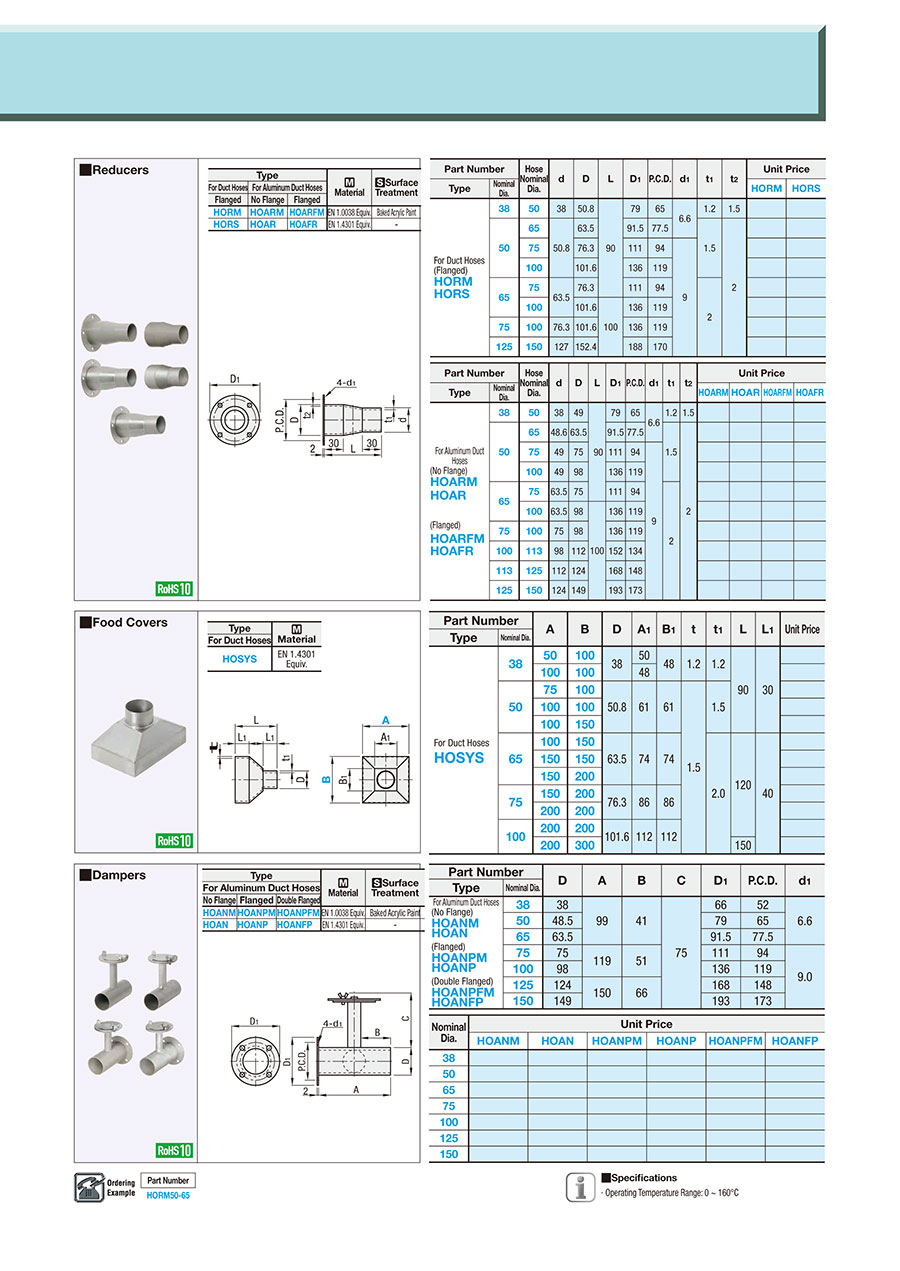

Catalog (2-page spread)
