Suction Holder, Direct Mount Spring Type, Screw Type (S Shape), Oval Type/Thin Object Type

CatalogP.2-1451

Part number:

Still undefined. 26 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Oval Type
No.4-10 to 6-30

Thin Object Type
No. 8, 10, 15, 20

"S (Stroke): 5.8"

"S (Stroke): 3"

Type	[A] Accessory		Pad Shape	[M]Pad Material
MVESN	Suction Cups	VPET	Oval	Nitrile Rubber
MVESS		VPES	Oval	Silicon Rubber
MVPSS		VPTS	For Thin Object	Nitrile Rubber
MVPSSS		VPTSS	For Thin Object	Phlorosilicon

[M]Metal Fittings Material: Brass [S]Surface Treatment: Electroless Nickel Plating

Specification Table

Part Number

MVESN4-20

Part Number			X	Y	Shape S
Type	Pad Material	No.	X	Y	Spring Max. Load (N)	Mass g
MVES (Oval)	N S	4−10	4	10	7.9 to 15.0	54
		4−20		20		54.5
		4−30		30		55
		5−10	5	10		54
		5−20		20		54.5
		5−30		30		55
		6−10	6	10		54
		6−20		20		54.5
		6−30		30		55

Part Number			d	L₁	Shape S
Type	Pad Material	No.	d	L₁	B	L₂	Spring Max. Load (N)	Mass g
MVPS (Thin Object Type)	S SS	8	8	5.5	30.5	21	2.3 to 3.9	14.2
		10	10	5.8	30.8	21.3		14.2
		15	15	6.5	31.5	22		14.3
		20	20	7.3	32.3	22.8		14.4

Part number list

Number of items

Part number

Pad Type

Rubber Group Material

Usage Environment

Color

Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature

(°C)

O.D. (d)

(Ø)

Width X

(mm)

Length Y

(mm)

RoHS?

Minimum order quantity

Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	4	10	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	4	20	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	4	30	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	5	10	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	5	20	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	5	30	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	6	10	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	6	20	10	1 pieces
Oval	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	-	6	30	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	4	10	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	4	20	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	4	30	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	5	10	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	5	20	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	5	30	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	6	10	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	6	20	10	1 pieces
Oval	[Silicone Rubber] Silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance	Milky White	-50～180	-	6	30	10	1 pieces
For Thin Object	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	8	-	-	10	1 pieces
For Thin Object	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	10	-	-	10	1 pieces
For Thin Object	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	15	-	-	10	1 pieces
For Thin Object	[Nitrile Rubber] Nitrile Rubber	Standard / Oil Resistance	Black	-30～110	20	-	-	10	1 pieces
For Thin Object	Fluoro-silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance	Light Brown	-50～180	8	-	-	10	1 pieces
For Thin Object	Fluoro-silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance	Light Brown	-50～180	10	-	-	10	1 pieces
For Thin Object	Fluoro-silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance	Light Brown	-50～180	15	-	-	10	1 pieces
For Thin Object	Fluoro-silicone Rubber	Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance	Light Brown	-50～180	20	-	-	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

31.24 € ( 37.18 € )	5 working days
31.61 € ( 37.62 € )	5 working days
31.99 € ( 38.07 € )	5 working days
31.24 € ( 37.18 € )	5 working days
31.61 € ( 37.62 € )	5 working days
31.99 € ( 38.07 € )	5 working days
31.24 € ( 37.18 € )	5 working days
31.61 € ( 37.62 € )	5 working days
31.99 € ( 38.07 € )	5 working days
33.24 € ( 39.56 € )	5 working days
33.75 € ( 40.16 € )	5 working days
34.13 € ( 40.61 € )	5 working days
33.24 € ( 39.56 € )	5 working days
33.75 € ( 40.16 € )	5 working days
34.13 € ( 40.61 € )	5 working days
33.24 € ( 39.56 € )	5 working days
33.75 € ( 40.16 € )	5 working days
34.13 € ( 40.61 € )	5 working days
23.04 € ( 27.42 € )	5 working days
23.04 € ( 27.42 € )	5 working days
23.56 € ( 28.04 € )	5 working days
23.56 € ( 28.04 € )	5 working days
30.98 € ( 36.87 € )	5 working days
30.98 € ( 36.87 € )	5 working days
32.87 € ( 39.12 € )	5 working days
32.87 € ( 39.12 € )	5 working days

Basic information

One absorption bracket, spring-loaded, with direct fixing and screw (S-shape). -Long type / thin object type.

Outline and specifications

Specifications / Overview

Cautions for installation of Suction Cup Fittings
For Spring Type, mount Fittings without tightening the Shaft parts with spanner, etc.
Otherwise, the Shaft key groove may be deformed, and may cause malfunction.

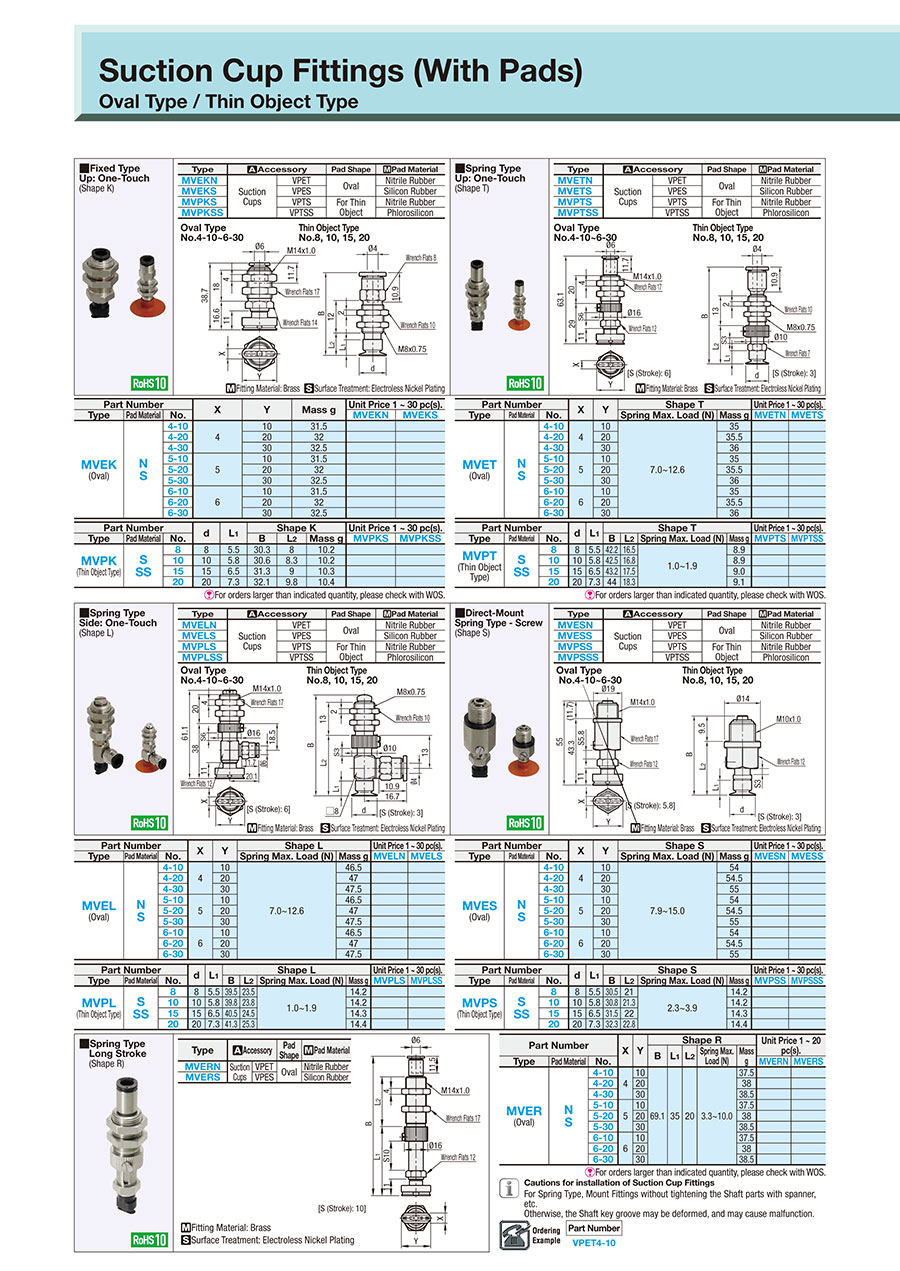

Catalog
