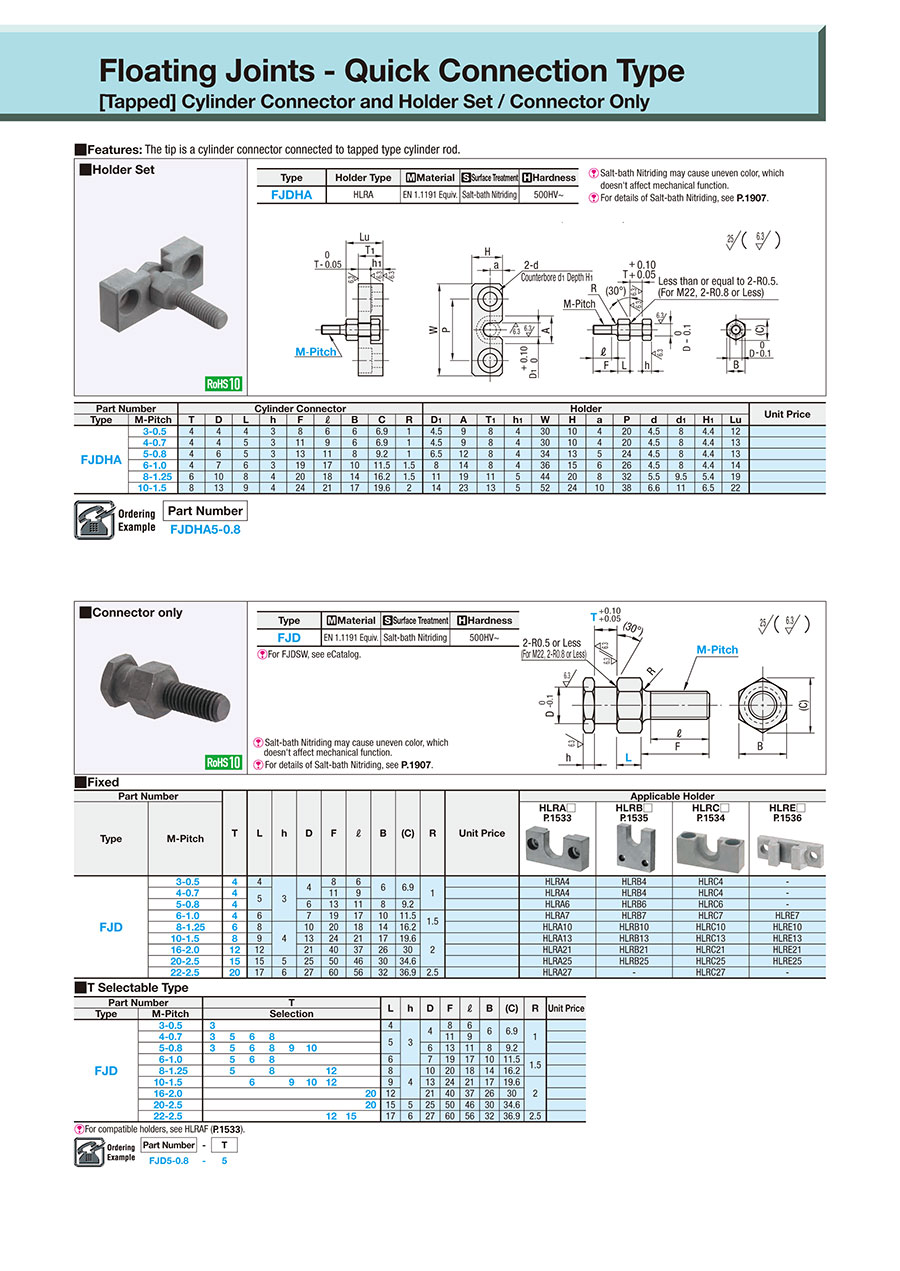

Compact Floating Joints - Threaded Type
Part number:
possible part numbers found.Outline drawing and specifications table
| Type | Material | Surface Treatment | Surface Hardness | |
| L Fixed | L Configurable | |||
| FJD | FJDL | 1.1191/C45E | Salt-bath Nitriding | 500HV~ |
| FJDSW | - | 1.4301/X5CrNi18-10 | Nitride Treatment | 1000HV~ |
Specifications
| Part Number | T Selection | L | h | D | F | ℓ | B | (C) | R | ||
| Type | M- Pitch | L Selectable | L Configurable (1mm Increment) | ||||||||
| L Fixed FJD FJDSW L Configurable FJDL | 3-0.5 | 3 4* | 4 | 3~15 | 3 | 4 | 8 | 6 | 6 | 6.9 | 1 |
| 4-0.7 | 3 4* 5 6 8 | 5 | 3~20 | 11 | 9 | ||||||
| 5-0.8 | 3 4* 5 6 8 9 10 | 3~25 | 6 | 13 | 11 | 8 | 9.2 | ||||
| 6-1.0 | 4* 5 6 8 | 6 | 4~30 | 7 | 19 | 17 | 10 | 11.5 | 1.5 | ||
| 8-1.25 | 5 6* 8 12 | 8 | 4~40 | 4 | 10 | 20 | 18 | 14 | 16.2 | ||
| 10-1.5 | 6 8* 9 10 12 | 9 | 4~50 | 13 | 24 | 21 | 17 | 19.6 | 2 | ||
| 16-2.0 | 12* 20 | 12 | 8~80 | 21 | 40 | 37 | 26 | 30 | |||
| 20-2.5 | 15* 20 | 15 | 10~100 | 5 | 25 | 50 | 46 | 30 | 34.6 | ||
| 22-2.5 | 12 15 20* | 17 | 10~100 | 6 | 27 | 60 | 56 | 32 | 36.9 | 2.5 | |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 6 working days |
7.34 € ( 8.73 € ) | 5 working days |
6.96 € ( 8.28 € ) | 5 working days |
- ( - ) | 6 working days |
7.34 € ( 8.73 € ) | 5 working days |
- ( - ) | 6 working days |
7.60 € ( 9.04 € ) | 5 working days |
- ( - ) | 6 working days |
8.10 € ( 9.64 € ) | 5 working days |
- ( - ) | 6 working days |
8.72 € ( 10.38 € ) | Stock item: 1 working dayAvailable for same-day shipping |
- ( - ) | 6 working days |
15.18 € ( 18.06 € ) | 5 working days |
- ( - ) | 6 working days |
17.71 €6.20 € ( 7.38 € ) | Stock item: 1 working dayAvailable for same-day shipping |
- ( - ) | 6 working days |
23.03 € ( 27.41 € ) | 5 working days |
- ( - ) | 6 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
More Information
Basic information
[Features] This product enables easy connection by simply hooking the connector into the groove of the holder or the object to be moved, or through a hole in the object to be moved.
Outline and specifications
More Information
For Floating Joints and Holders Application Table, refer to the left page.
