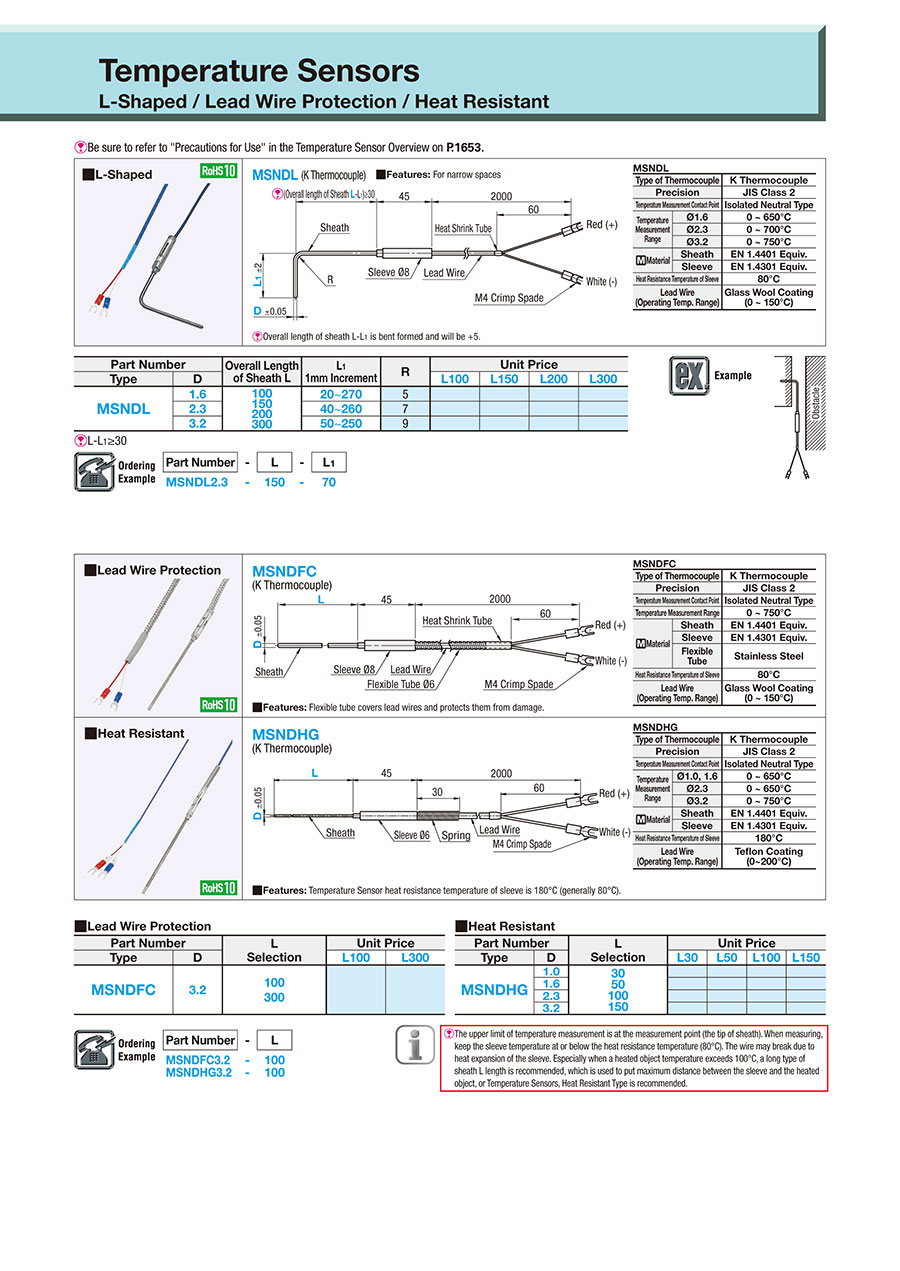

Temperature Sensors / Lead Wire Protection / K-Thermocouple

MSNDFC
(K Thermocouple)

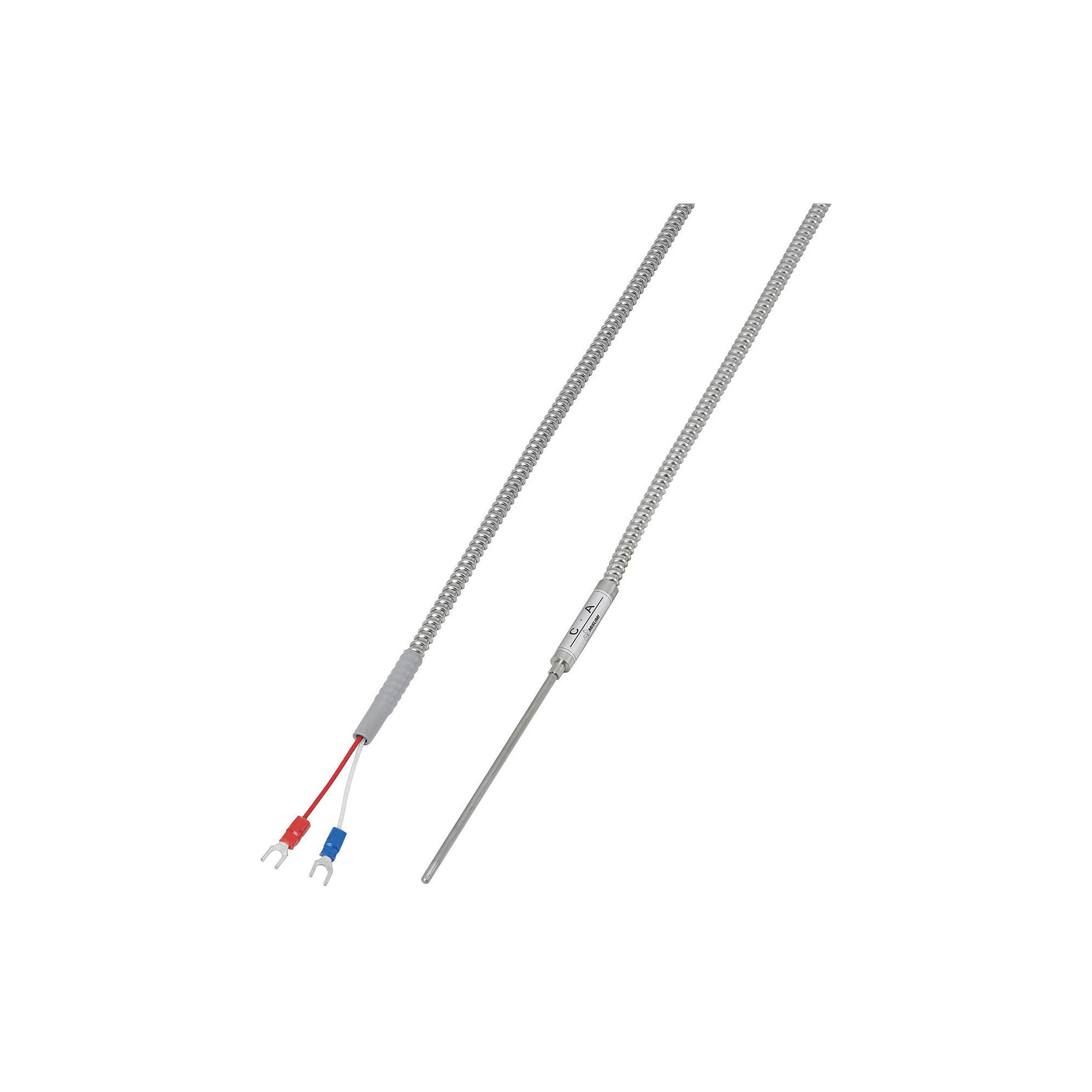

■Features: Flexible tube covers lead wires and protects them from damage.

MSNDFC

Thermocouple Type		K Thermocouple
Accuracy		JIS Class 2
Temperature Measurement Contact Point		Non-Grounded
Range of Measurable Temperature		0 to 300°C
[M] Material	Sheath	EN 1.4401 Equiv.
	Sleeve	EN 1.4301 Equiv.
	Bracket	Stainless Steel
	Flexible Tube
Heat Resistance Temperature of Sleeve		80°C
Lead Wire (Operating Temp. Range)		Glass Wool Coating (0 to 150°C)
Sheath Minimum Bending Radius R		More than 5 times the Sheath O.D. (D) However, temperature detecting part (20 mm from the tip) cannot be bent.
Flexible Tube Minimum Bending Radius R		R50 or more
Lead Wire Minimum Bending R		R15 or more

[NG] Avoid bending the flexible tube or lead wire near the sleeve
as it may break the wire.

■Lead Wire Protection

Part Number		L Selection
Type	D
MSNDFC	3.2	100 300
