Temperature Sensors / Band Connector / K-Thermocouple
Part number:
possible part numbers found.Outline drawing and specifications table

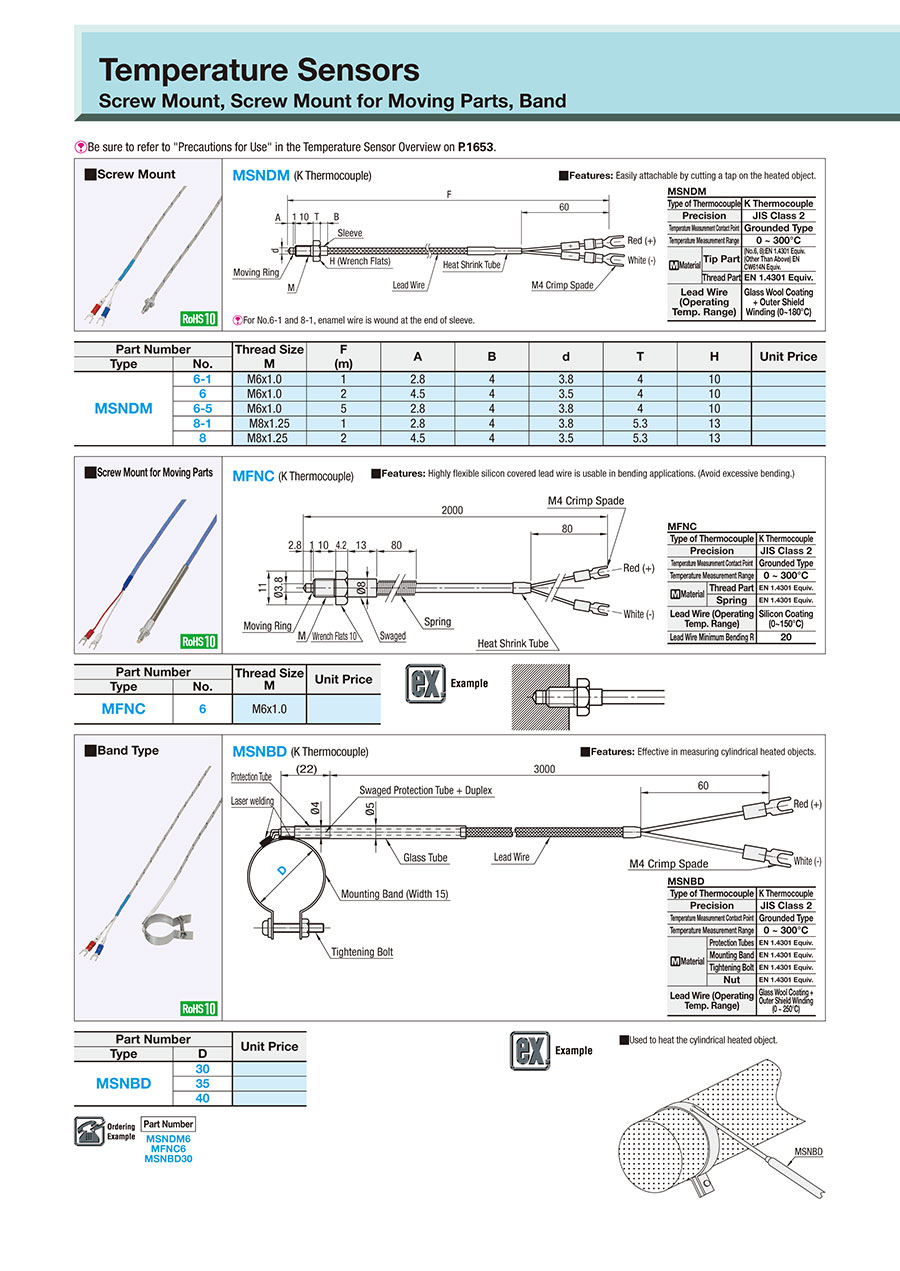

Dimensional Drawing
MSNBD (K Thermocouple)
MSNBD
[NG] Protective Tube cannot be bent.
| Thermocouple Type | K Thermocouple | ||
| Accuracy | JIS Class 2 | ||
| Temperature Measurement Contact Point | Non-Grounded | ||
| Range of Measurable Temperature | 0 to 300°C | ||
| [M] Material | Protection Tube | EN 1.4301 Equiv. | |
| Mounting Band | EN 1.4301 Equiv. | ||
| Tightening Bolt | EN 1.4301 Equiv. | ||
| Nut | EN 1.4301 Equiv. | ||
| Lead Wire (Operating Temp. Range) | Glass Wool Coating + Outer Shield Winding (0 to 250°C) | ||
| Glass Tube Minimum Bending Radius R | R10 or more | ||
| Lead Wire Minimum Bending R | R10 or more | ||
[NG] Avoid bending the glass tube lead wire near the crimped point
as it may break the wire.
Specification Table
| Part Number |
| MSNBD30 |
| Part Number | |
| Type | D |
| MSNBD | 30 |
| 35 | |
| 40 | |
More Information
Basic information
This is a temperature sensor, tape type. [Thermocouple Type]Thermocouple Type K.
Outline and specifications
Specifications/Overview
■Features: Effective when measuring cylindrical shaped heated objects.
App. Example
■Used to heat the cylindrical heated object.
