K-Thermocouple Connectors
Mouse over image to enlarge
Part number:

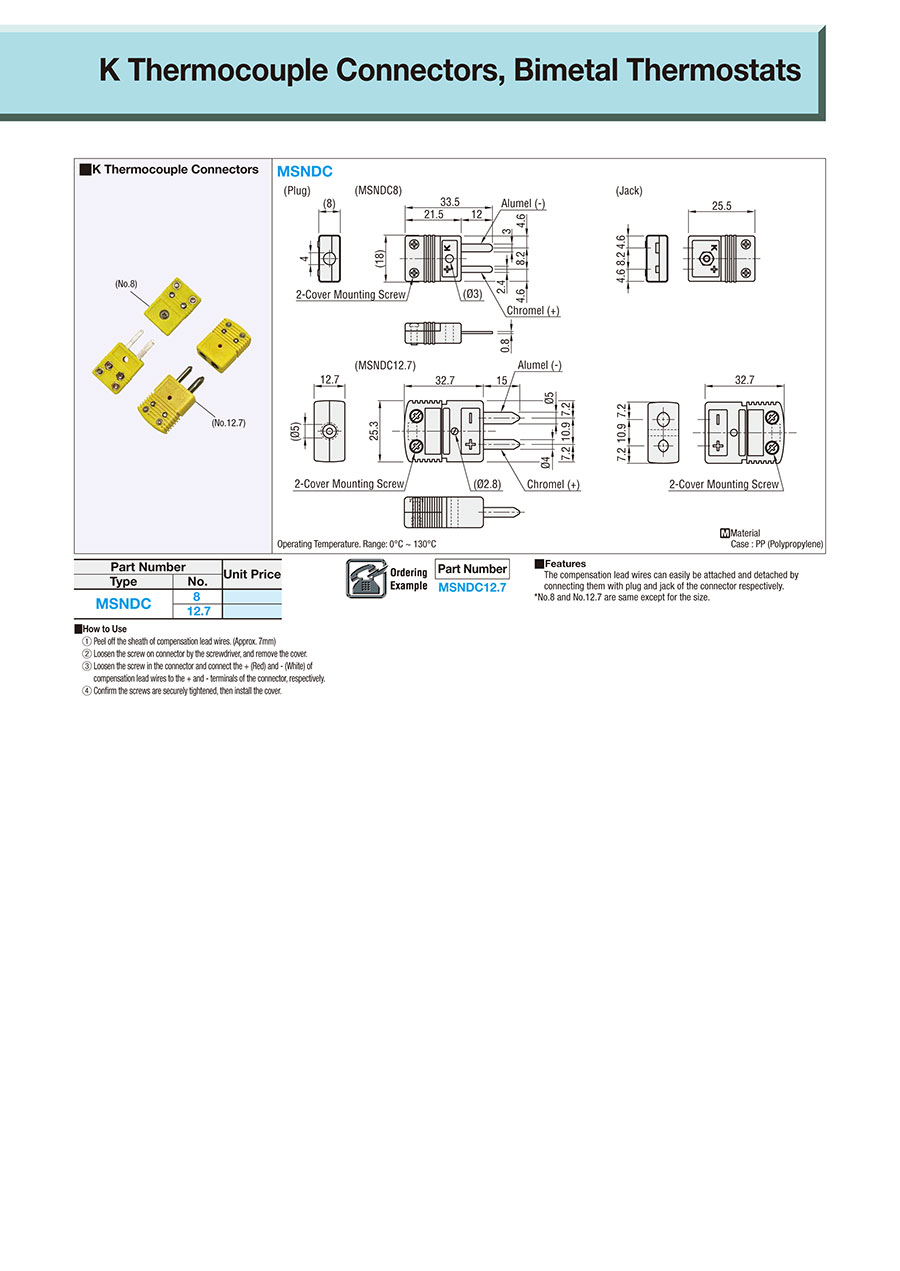

possible part numbers found.Outline drawing and specifications table
MSNDC
(Plug)
(MSNDC8)
(Jack)
(MSNDC12.7)
[M]Case Material: PP (Polypropylene)
Specification Table
| Part Number |
| MSNDC12.7 |
| Part Number | |
| Type | No. |
| MSNDC | 8 |
| 12.7 | |
More Information
Basic information
Outline and specifications
Specifications/Overview
Operating Temperature Range: 0°C to 130°C
■ Features
Connecting the compensation lead wire to the plug and jack of the connector
makes it easier to attach and remove the compensation lead wire.
* No.8 and No.12.7 are same except for the size.
Connecting the compensation lead wire to the plug and jack of the connector
makes it easier to attach and remove the compensation lead wire.
* No.8 and No.12.7 are same except for the size.
■ How to Use
(1) Strip the cover of compensation lead wire. (Approx. 7 mm)
(2) Loosen the screw on connector by the screwdriver, and remove the cover.
(3) Loosen the screw in the connector and connect the + (Red) and - (White) of compensation lead wires
to the + and - terminals of the connector, respectively.
(4) Confirm the screws are securely tightened, then install the cover.
(1) Strip the cover of compensation lead wire. (Approx. 7 mm)
(2) Loosen the screw on connector by the screwdriver, and remove the cover.
(3) Loosen the screw in the connector and connect the + (Red) and - (White) of compensation lead wires
to the + and - terminals of the connector, respectively.
(4) Confirm the screws are securely tightened, then install the cover.
