  • Contact Probes Assembly / Spring Build in (FNPS22)

    Caution

    • [Specification Change] The collar material will be changed from brass to copper alloy (brass and phosphor bronze) as soon as current stock runs out.(FNPS35)
    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Part number:

    Still undefined. 9 possible part numbers found.
    Quantity:

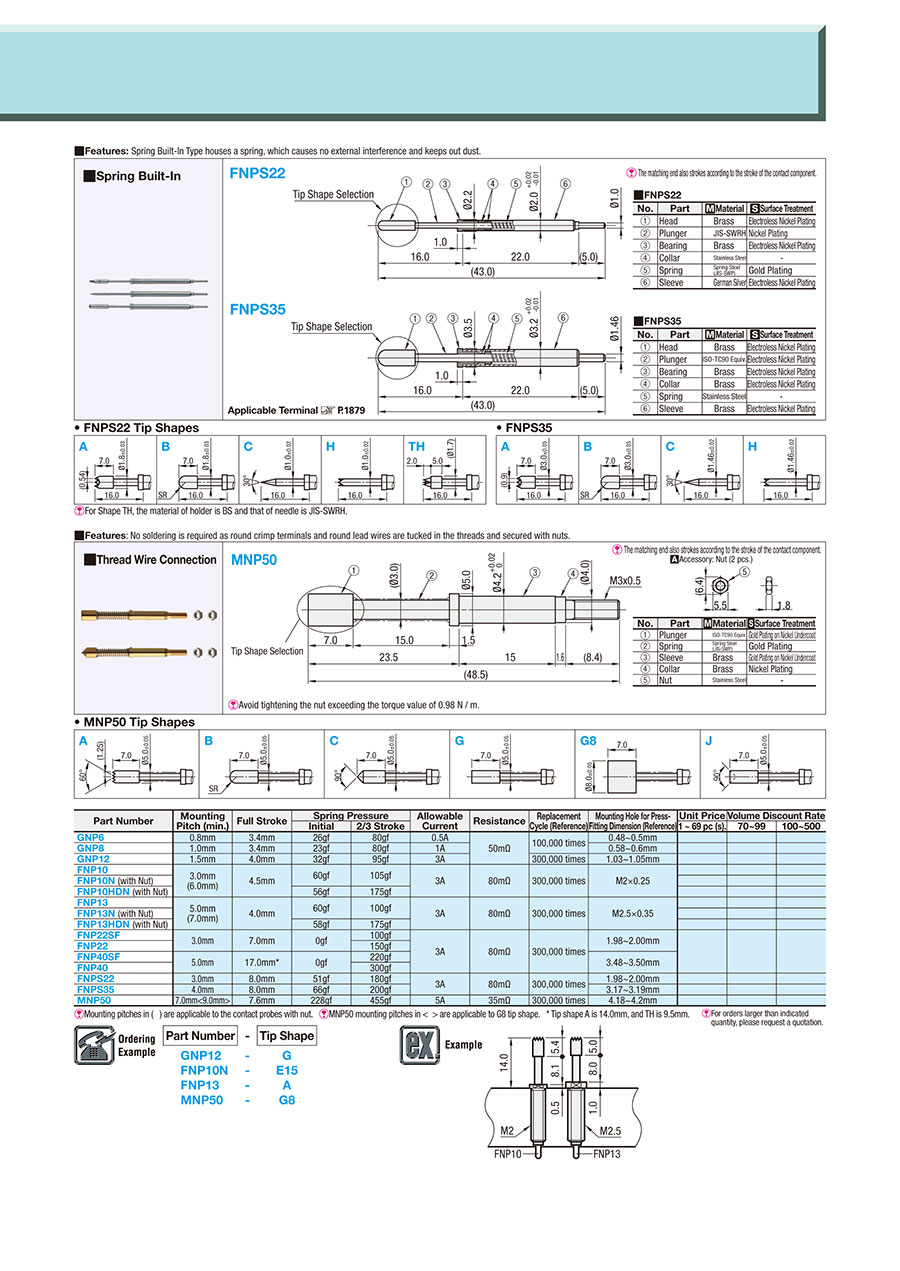

    Outline drawing and specifications table

    FNPS22

    FNPS35

    [ ! ] The matching end also strokes according to the stroke of the contact component.

    Integrated Contact Probe - Built-In Spring: Related Image

    ● FNPS22 Tip Shapes

    ●FNPS35

    [ ! ] For Shape TH, the material of holder is BS and that of needle is Spring Steel (JIS−SWP).

    Integrated Contact Probe - Built-In Spring: Related Image
    ■FNPS22
    No.Part[M] Material[S] Surface Treatment
    (1)HeadCopper AlloyElectroless Nickel Plating
    (2)PlungerSpring Steel (JIS−SWP)Nickel Plating
    (3)BearingCopper AlloyElectroless Nickel Plating
    (4)CollarStainless Steel
    (5)SpringSpring Steel (JIS−SWP)Gold Plating
    (6)SleeveGerman SilverElectroless Nickel Plating
    ■FNPS35
    No.Part[M] Material[S] Surface Treatment
    (1)HeadCopper AlloyElectroless Nickel Plating
    (2)PlungerISO−TC90 Equiv.Electroless Nickel Plating
    (3)BearingCopper AlloyElectroless Nickel Plating
    (4)CollarCopper AlloyElectroless Nickel Plating
    (5)SpringStainless Steel
    (6)SleeveCopper AlloyElectroless Nickel Plating

    Specification Table

    Part NumberTip Shape
    FNPS22A
    Part NumberMinimum mounting pitch*Full StrokeSpring PressureAllowable CurrentResistanceReplacement Cycle

    Mounting Hole for Press Fitting
    Dimension (Reference)
    Initial2/3 Stroke
    FNPS223.0 mm8.0 mm51gf180gf3 A80mΩ300,000 times1.98 to 2.00 mm
    FNPS354.0 mm8.0 mm66gf200gf3.17 to 3.19 mm
    * Minimum center-to-center spacing between adjacent contact probes.

    Part number list

    Number of items

    Min. Mounting Pitch

    (mm)

    Plunger Tip Shape

    Plunger Material

    Plunger O.D.

    (Ø)

    Receptacle O.D. D (Range)

    (Ø)

    Barrel, Receptacle O.D.

    (Ø)

    Receptacle Outermost Diameter

    (Ø)

    Initial Spring Pressure

    (gf)

    2/3 Stroke Spring Pressure

    (gf)

    RoHS?Minimum order quantity
    3.0
    [Waffle] Waffle A
    Spring Steel (JIS-SWP)
    1.8
    2.01 to 3
    2
    2.2
    51
    180
    10
    1 pieces
    3.0
    [Sphere Shape (SR)] Sphere(SR) B
    Spring Steel (JIS-SWP)
    1.8
    2.01 to 3
    2
    2.2
    51
    180
    10
    1 pieces
    3.0
    [Needle] Needle C
    Spring Steel (JIS-SWP)
    1
    2.01 to 3
    2
    2.2
    51
    180
    10
    1 pieces
    3.0
    [Straight, Crowned] Straight Crown H
    Spring Steel (JIS-SWP)
    1
    2.01 to 3
    2
    2.2
    51
    180
    10
    1 pieces
    3.0
    Three-Needle-TH
    Spring Steel (JIS-SWP)
    1.7
    2.01 to 3
    2
    2.2
    51
    180
    10
    1 pieces
    4.0
    [Waffle] Waffle A
    [Carbon steel] ISO-TC90 Equiv.
    3.0
    3.01 or More
    3.2
    3.5
    66
    200
    10
    1 pieces
    4.0
    [Sphere Shape (SR)] Sphere(SR) B
    [Carbon steel] ISO-TC90 Equiv.
    3.0
    3.01 or More
    3.2
    3.5
    66
    200
    10
    1 pieces
    4.0
    [Needle] Needle C
    [Carbon steel] ISO-TC90 Equiv.
    1.46
    3.01 or More
    3.2
    3.5
    66
    200
    10
    1 pieces
    4.0
    [Straight, Crowned] Straight Crown H
    [Carbon steel] ISO-TC90 Equiv.
    1.46
    3.01 or More
    3.2
    3.5
    66
    200
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.30 €
    ( 7.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    6.30 €2.21 €
    ( 2.63 € )
    Stock item: 1 working dayAvailable for same-day shipping
    6.30 €
    ( 7.50 € )
    5 working days
    6.30 €
    ( 7.50 € )
    5 working days
    6.30 €
    ( 7.50 € )
    5 working days
    8.31 €
    ( 9.89 € )
    5 working days
    8.31 €
    ( 9.89 € )
    5 working days
    8.31 €
    ( 9.89 € )
    5 working days
    8.31 €
    ( 9.89 € )
    5 working days
