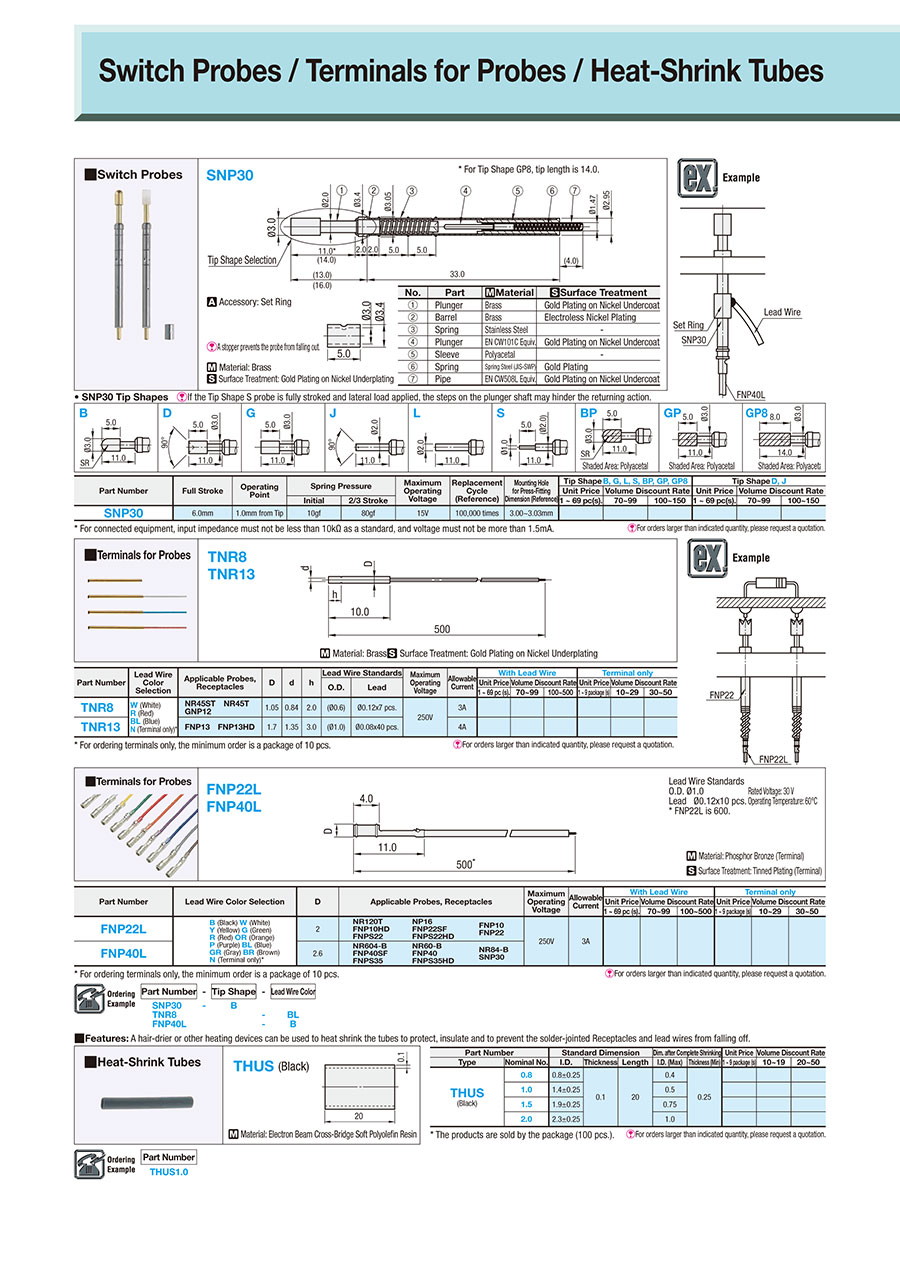

Terminals for Probes / FNP Series【1 to 10 pieces】

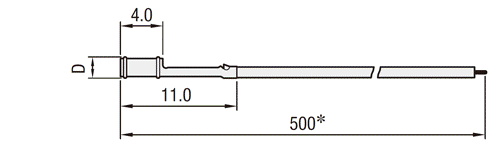

Part Number	Lead Wire Color Selection	D	Applicable Probes, Receptacles	Lead Wire Standards		Maximum Operating Voltage	Allowable Current
				O.D.	Lead
FNP22L	B(Black) W(White) 　Y(Yellow) G(Green) 　R(Red)　OR(Orange)　P(Purple) BL(Blue) 　GR(Gray) 　BR(Brown)	2	NR120T　NP16 FNP10HD　FNP22SF　FNP10 FNPS22　FNPS22HD　FNP22	Φ1.0	ø0.12 × 10 pcs.	250V	3A
	N (Terminal only) *
FNP40L	B(Black) W(White) 　Y(Yellow) G(Green) 　 R(Red)　OR(Orange)　P(Purple) BL(Blue) 　GR(Gray) 　BR(Brown)	2.6	NR604-B　NR60-B FNP40SF　 FNP40　　NR84-B FNPS35　　 FNPS35HD　 SNP30
	N (Terminal only) *

* For ordering terminals only, the minimum order is a package of 10 pcs.
* Applicable lead wires for FNP22 L-N and FNP40 L-N are equivalent to AWG 26 to 28.
[ ! ] A general-purpose crimping tool can be used to connect lead wires to the FNP22 L-N/FNP40 L-N (terminals only).
   (Soldering is also possible)
