Engineered Plastic Bearings - One Side Flanged
Click image to view enlarged image
Part number:

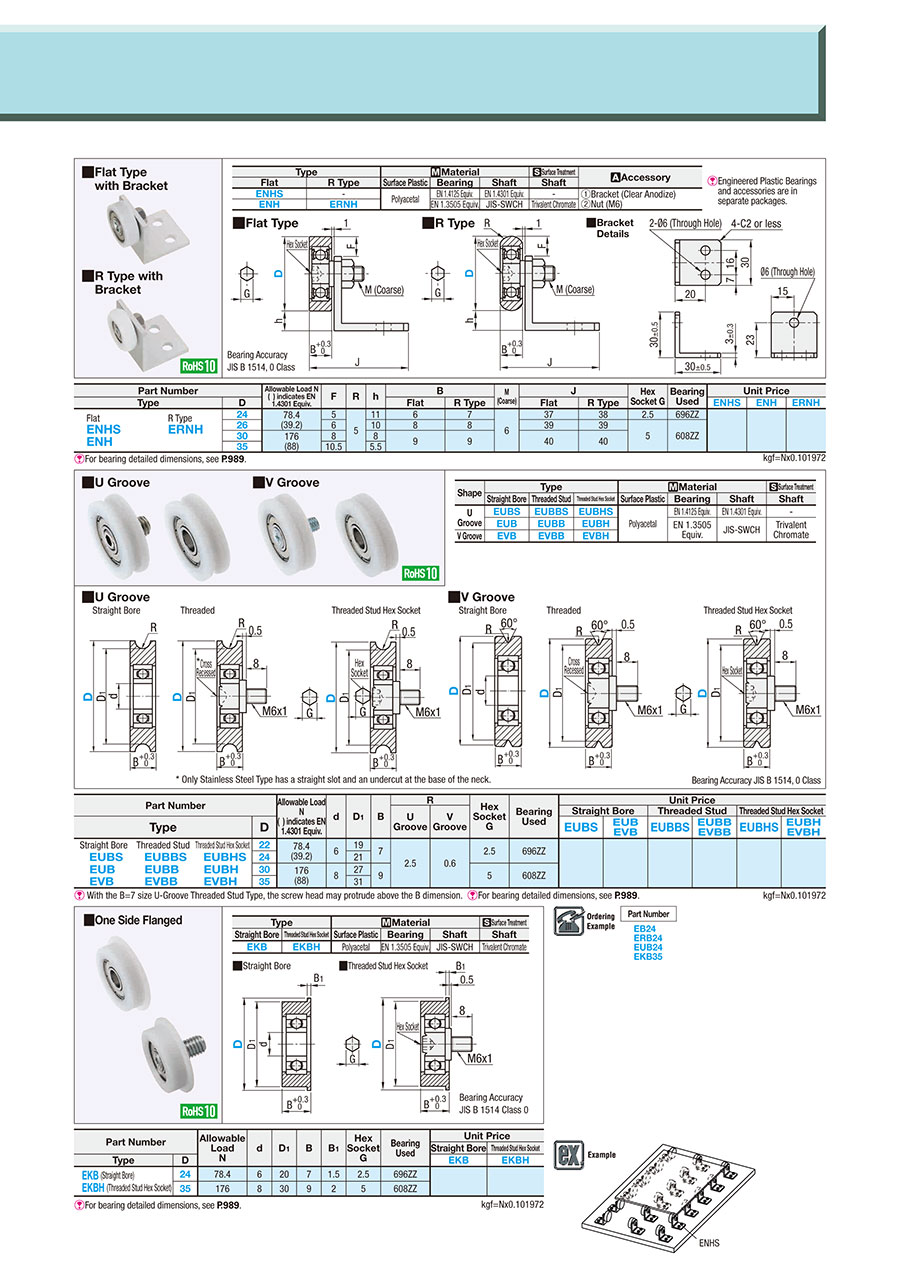

possible part numbers found.Outline drawing and specifications table
| Type | Material | Surface Treatment | |||
| Straight Bore | Threaded Stud Hex Socket | Surface Plastic | Bearing | Shaft | Shaft |
| EKB | EKBH | Polyacetal | EN 1.3505 Equiv. | JIS-SWCH | Trivalent Chromate |
Specifications
| Part Number |
| EB24 ERB24 EUB24 EKB35 |
| Part Number | Allowable Load N | d | D1 | B | B1 | Hex Socket G | Bearing Used | Unit Price | ||
| Straight Bore | Threaded Stud Hex Socket | |||||||||
| Type | D | EKB | EKBH | |||||||
| EKB (Straight Bore) EKBH (Threaded Stud Hex Socket) | 24 | 78.4 | 6 | 20 | 7 | 1.5 | 2.5 | 696ZZ | ||
| 35 | 176 | 8 | 30 | 9 | 2 | 5 | 608ZZ | |||
For bearing detailed dimensions, see P.989.
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
9.70 € ( 11.54 € ) | 5 working days |
9.70 €3.49 € ( 4.15 € ) | Stock item: 1 working dayAvailable for same-day shipping |
11.07 € ( 13.17 € ) | Stock item: 1 working dayAvailable for same-day shipping |
11.07 € ( 13.17 € ) | Stock item: 1 working dayAvailable for same-day shipping |
