Spur gears with integrated bearing

Spur gears with integrated bearing
  • Volume Discount
View the FAQ (5)

MISUMI

MISUMI

Data sheet

Unit еxample related to this product
Width Change Mechanism
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Back to the Category Spur Gears

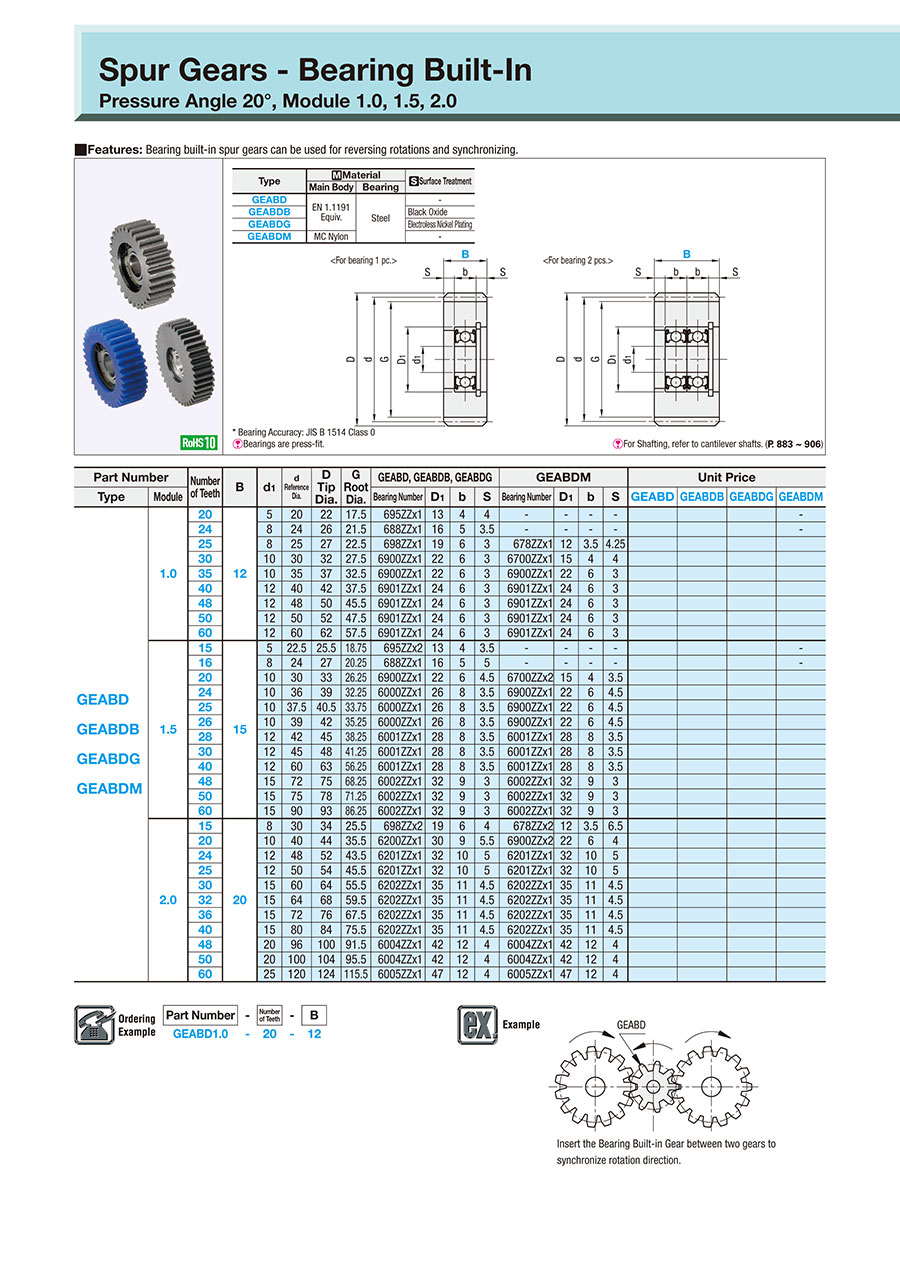

Technical Drawing - Spur Gears

Spur Gears/Bearing Built-in Type:Related Image
Open the technical drawing in the new window



Available dimensions and tolerances can be found under the tab More Information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Spur Gears

TypeMaterialSurface Treatment
Main BodyBearing
GEABDEN 1.1191 Equiv.Steel-
GEABDBBlack Oxide
GEABDGElectroless Nickel Plating
GEABDMMC Nylon-

Further specifications can be found under the tab More Information.

Composition of a Product Code - Spur Gears

Part Number-Number
of Teeth		-B
GEABD1.0-20-12

General Information - Spur Gears

Spur gears - front gear with through hole - spur gear with spring pin - spur gear made of brass - brass pinion - plastic - spur gear with ball bearing



Selection details of spur gears

- Material: steel, stainless steel, sintered steel, nylon, polyacetal, brass, aluminum, cast iron

- Coatings: burnished, nickel-plated

- Heat treatment: induction hardened

- Shaft diameter tolerances: H7, H8

- Tooth flank clearance: N5, N7, N8, N9, N12

- Module: 0.3, 0.5, 0.75, 0.8, 1, 1.25, 1.5, 2, 2.5, 3, 4, 4.5, 5, 6, 8, 10, 15, 20

- Pressure angle: 20°

- Shaft diameter: 2 mm to 50 mm

- Number of teeth: 8 to 200

- Tooth width: 2 mm to 90 mm



Description/Basics

The spur gears offered are generally machine elements that serve the non-slip transmission of force, movement transmission or movement change. The teeth of the cylinder wheels grip each other during transmission and largely roll over the tooth flanks. The tooth shape of the spur gear is convexly shaped in the shaped tooth system. At the beginning of the intervention, a rolling resistance acts on the tooth flank, which becomes a sliding friction in the course of the rotation.

A combination of gear wheels and rack gears is useful in the construction of rack gear. This allows motor rotary motion or other rotary motion to be converted into linear motion. rack gear boxes are theoretically possible in an endless assembly. Limits here only set the length of the rack gears for the rack gear drive.

Gear wheels with straight gearing are particularly suitable for the construction of gearboxes. The advantage of straight gearing as opposed to helical gears, is the possibility of transmitting a higher torque. It should be noted that with increasing speed within the transmission ratio or reduction, the torque to be transmitted decreases.

When designing spur gear pairs, the ratio of the gear ratio (number of teeth) and the module of the respective gear wheels must be observed.
The backlash is another important factor that must be considered during construction. Reverse play is understood as the result of the play that the change in the direction of rotation of a single gear wheel pair between the teeth. The risk of reverse play can be reduced if either the diameter or the number of teeth of the cogwheel pairing do not deviate too much from one another. If high wear is to be expected due to the pairing of gears, the MISUMI online shop offers gears with a hardened key-type.

For applications with the same rotational direction, it is possible to use an intermediate gear with integrated bearing on a cantilever shaft. The bearing number used can be found under the tab More Information. An overview of tolerances and permissible radial bearing deviations can be found in the following PDF.

In addition to gear wheels, MISUMI also offers suitable rotary shafts for the construction of a transmission. The straight front wheels can be assembled on these and secured with a set screw or machine keys (key with adjusting screw). This PDF provides an overview of the configurable mountings for the shaft rotation and keyway tolerances.
The continuous adjusting of a spur gear can be realized, among other things, by means of a clamping sleeve. The MISUMI online shop offers spur gears with clamping sleeve. Alternatively, we also offer individual keyless bushing that you can customize to your needs.



Application Examples - Spur Gears

Application example: workpiece transport - spur gear - rack gear - roller bearings - workpiece

Application example - spur gear with rack gear
(1) Spur gear, (2) Clamping knobs, (3) Rack gear

Application example: rack gear - spur gear with rack gear - handle - rotary handle

Application example - spur gear
(1) Spur gear, (2) Workpiece, (3) Rollers



Industrial Applications

3D printer industry
Automotive industry
Pharmaceutical industry
Packaging industry

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. 3
  4. Next >>
Part Number
GEABD1.0-20-12
GEABD1.0-24-12
GEABD1.0-25-12
GEABD1.0-30-12
GEABD1.0-35-12
GEABD1.0-40-12
GEABD1.0-48-12
GEABD1.0-50-12
GEABD1.0-60-12
GEABD1.5-15-15
GEABD1.5-16-15
GEABD1.5-20-15
GEABD1.5-24-15
GEABD1.5-25-15
GEABD1.5-26-15
GEABD1.5-28-15
GEABD1.5-30-15
GEABD1.5-40-15
GEABD1.5-48-15
GEABD1.5-50-15
GEABD1.5-60-15
GEABD2.0-15-20
GEABD2.0-20-20
GEABD2.0-24-20
GEABD2.0-25-20
GEABD2.0-30-20
GEABD2.0-32-20
GEABD2.0-36-20
GEABD2.0-40-20
GEABD2.0-48-20
GEABD2.0-50-20
GEABD2.0-60-20
GEABDB1.0-20-12
GEABDB1.0-24-12
GEABDB1.0-25-12
GEABDB1.0-30-12
GEABDB1.0-35-12
GEABDB1.0-40-12
GEABDB1.0-48-12
GEABDB1.0-50-12
GEABDB1.0-60-12
GEABDB1.5-15-15
GEABDB1.5-16-15
GEABDB1.5-20-15
GEABDB1.5-24-15
GEABDB1.5-25-15
GEABDB1.5-26-15
GEABDB1.5-28-15
GEABDB1.5-30-15
GEABDB1.5-40-15
GEABDB1.5-48-15
GEABDB1.5-50-15
GEABDB1.5-60-15
GEABDB2.0-15-20
GEABDB2.0-20-20
GEABDB2.0-24-20
GEABDB2.0-25-20
GEABDB2.0-30-20
GEABDB2.0-32-20
GEABDB2.0-36-20
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSNumber of Teeth
(Teeth) 		Material (Details) Tooth Width B
(mm) 		Bushings

26.06 €

1 Available 10 Days 1020General Steel Material12-

26.56 €

1 Available 10 Days 1024General Steel Material12-

26.83 €

1 Available 10 Days 1025General Steel Material12-

34.30 €

1 Available 10 Days 1030General Steel Material12-

35.05 €

1 Available 10 Days 1035General Steel Material12-

39.85 €

1 Available 10 Days 1040General Steel Material12-

42.89 €

1 Available 10 Days 1048General Steel Material12-

43.53 €

1 Available 10 Days 1050General Steel Material12-

57.82 €

1 Available 10 Days 1060General Steel Material12-

23.14 €

1 Available 10 Days 1015General Steel Material15-

24.67 €

1 Available 10 Days 1016General Steel Material15-

31.51 €

1 Available 10 Days 1020General Steel Material15-

31.64 €

1 Available 10 Days 1024General Steel Material15-

31.64 €

1 Available 10 Days 1025General Steel Material15-

31.75 €

1 Available 10 Days 1026General Steel Material15-

31.89 €

1 Available 10 Days 1028General Steel Material15-

32.65 €

1 Available Same day

Stock

1030General Steel Material15-

41.62 €

1 Available 10 Days 1040General Steel Material15-

51.37 €

1 Available 10 Days 1048General Steel Material15-

52.76 €

1 Available 10 Days 1050General Steel Material15-

66.44 €

1 Available 10 Days 1060General Steel Material15-

28.47 €

1 Available 10 Days 1015General Steel Material20-

34.79 €

1 Available 10 Days 1020General Steel Material20-

40.75 €

1 Available 10 Days 1024General Steel Material20-

42.26 €

1 Available 10 Days 1025General Steel Material20-

48.45 €

1 Available Same day

Stock

1030General Steel Material20-

50.36 €

1 Available 10 Days 1032General Steel Material20-

58.08 €

1 Available 10 Days 1036General Steel Material20-

65.29 €

1 Available 10 Days 1040General Steel Material20-

84.90 €

1 Available 10 Days 1048General Steel Material20-

87.30 €

1 Available 10 Days 1050General Steel Material20-

97.66 €

1 Available 10 Days 1060General Steel Material20-

28.47 €

1 Available 10 Days 1020General Steel Material12-

29.10 €

1 Available 10 Days 1024General Steel Material12-

29.23 €

1 Available 10 Days 1025General Steel Material12-

37.20 €

1 Available Same day

Stock

1030General Steel Material12-

38.47 €

1 Available 10 Days 1035General Steel Material12-

43.65 €

1 Available 10 Days 1040General Steel Material12-

46.95 €

1 Available 10 Days 1048General Steel Material12-

47.71 €

1 Available 10 Days 1050General Steel Material12-

63.52 €

1 Available 10 Days 1060General Steel Material12-

25.31 €

1 Available 10 Days 1015General Steel Material15-

27.08 €

1 Available 10 Days 1016General Steel Material15-

34.03 €

1 Available 10 Days 1020General Steel Material15-

34.17 €

1 Available 10 Days 1024General Steel Material15-

34.17 €

1 Available 10 Days 1025General Steel Material15-

34.30 €

1 Available 10 Days 1026General Steel Material15-

34.40 €

1 Available 10 Days 1028General Steel Material15-

35.42 €

1 Available 10 Days 1030General Steel Material15-

45.30 €

1 Available 10 Days 1040General Steel Material15-

56.30 €

1 Available 10 Days 1048General Steel Material15-

57.58 €

1 Available 10 Days 1050General Steel Material15-

72.63 €

1 Available 10 Days 1060General Steel Material15-

30.99 €

1 Available 10 Days 1015General Steel Material20-

37.82 €

1 Available 8 Days 1020General Steel Material20-

44.66 €

1 Available 10 Days 1024General Steel Material20-

46.19 €

1 Available 10 Days 1025General Steel Material20-

52.88 €

1 Available 10 Days 1030General Steel Material20-

57.96 €

1 Available 10 Days 1032General Steel Material20-

63.64 €

1 Available 10 Days 1036General Steel Material20-

Loading...

  1. 1
  2. 2
  3. 3
  4. Next >>

Back to the Category Spur Gears

Technical Drawing - Spur Gears

Spur Gears/Bearing Built-in Type:Related Image
Open the technical drawing in the new window

Specification Tables - Spur Gears

Part NumberNumber of TeethBd1d Reference Dia.D Tip Dia.G Root Dia.GEABD, GEABDB, GEABDGGEABDMUnit Price
TypeModuleBearing NumberD1bSBearing NumberD1bSGEABDGEABDBGEABDGGEABDM
GEABD

GEABDB

GEABDG

GEABDM		1.0 20125202217.5695ZZx11344----   -
248242621.5688ZZx11653.5----   -
258252722.5698ZZx11963678ZZx1123.54.25
3010303227.56900ZZx122636700ZZx11544
3510353732.56900ZZx122636900ZZx12263
4012404237.56901ZZx124636901ZZx12463
4812485045.56901ZZx124636901ZZx12463
5012505247.56901ZZx124636901ZZx12463
6012606257.56901ZZx124636901ZZx12463
1.5 1515522.525.518.75695ZZx21343.5----   -
168242720.25688ZZx11655----   -
2010303326.256900ZZx12264.56700ZZx21543.5
2410363932.256000ZZx12683.56900ZZx12264.5
251037.540.533.756000ZZx12683.56900ZZx12264.5
2610394235.256000ZZx12683.56900ZZx12264.5
2812424538.256001ZZx12883.56001ZZx12883.5
3012454841.256001ZZx12883.56001ZZx12883.5
4012606356.256001ZZx12883.56001ZZx12883.5
4815727568.256002ZZx132936002ZZx13293
5015757871.256002ZZx132936002ZZx13293
6015909386.256002ZZx132936002ZZx13293
2.0 15208303425.5698ZZx21964678ZZx2123.56.5
2010404435.56200ZZx13095.56900ZZx22264
2412485243.56201ZZx1321056201ZZx132105
2512505445.56201ZZx1321056201ZZx132105
3015606455.56202ZZx135114.56202ZZx135114.5
3215646859.56202ZZx135114.56202ZZx135114.5
3615727667.56202ZZx135114.56202ZZx135114.5
4015808475.56202ZZx135114.56202ZZx135114.5
48209610091.56004ZZx1421246004ZZx142124
502010010495.56004ZZx1421246004ZZx142124
6025120124115.56005ZZx1471246005ZZx147124


Basic information

Heat Treatment (Details) Not Provided Backlash Provided Bearing Provided

Configure

Clear all

124Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Stock

    • Show only stock items

    Clear

Basic Attributes

  • Number of Teeth(Teeth)

    • 15
    • 16
    • 20
    • 24
    • 25
    • 26
    • 28
    • 30
    • 32
    • 35
    • 36
    • 40
    • 48
    • 50
    • 60

    Clear

  • Material (Details)

    • General Steel Material
    • Resin

    Clear

  • Tooth Width B(mm)

    • 12
    • 15
    • 20

    Clear

  • Bushings

    • Not Provided

    Clear

  • Type

    • GEABD
    • GEABDB
    • GEABDG
    • GEABDM

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • Same day
    • 7 Days or Less
    • 8 Days or Less
    • 10 Days or Less

    Reset

Optional Attributes

Frequently Asked Questions (FAQ)

Question:

Can different modules be combined with each other?
Answer:

Since the module describes the division of the teeth along the pitch circle diameter, various modules cannot be combined into one pair of gears.
Question:

What is involute gearing?
Answer:

Evolved gearing is understood to be the convex production of a tooth flank. The sliding friction along the tooth flank can thus be minimized. This also reduces wear and tear.
Question:

What is the pressure angle?
Answer:

The pressure angle is defined as the angle of the highest drive force between two gears. A combination of different pressure angles is not recommended, since increased wear is to be expected.
Question:

Is the position of the keyway to the key-type specified?
Answer:

The keyway has no specified position reference to the tooth base or the head surface of the sprocket.
Question:

What is the reverse clearance?
Answer:

The reverse play arises at the moment of the direction of rotation of a spur gear pairing is changed. It describes the gap between the gear flanks of each tooth in engagement.

Show more FAQ Close

Complementary Products

MISUMI Unit еxample related to this product

Search for оther еxamples

back next

Tech Support

Technical Support
Tel：+49 69 668173-0 / FAX：+49 69 668173-360
Technical Inquiry

Payment Method

  • Payment on account
  • Pre Payment
  • PayPal

On-Demand Manufacturing

Change View

Certificates

  • ISO-9001
  • ISO-14001
  • AEO Certification
  • RoHS
  • REACH

MISUMI worldwide

Social Media

Legal notice

Copyright © MISUMI Corporation All Rights Reserved.
