5 Series / with Caps / 20mm Square
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

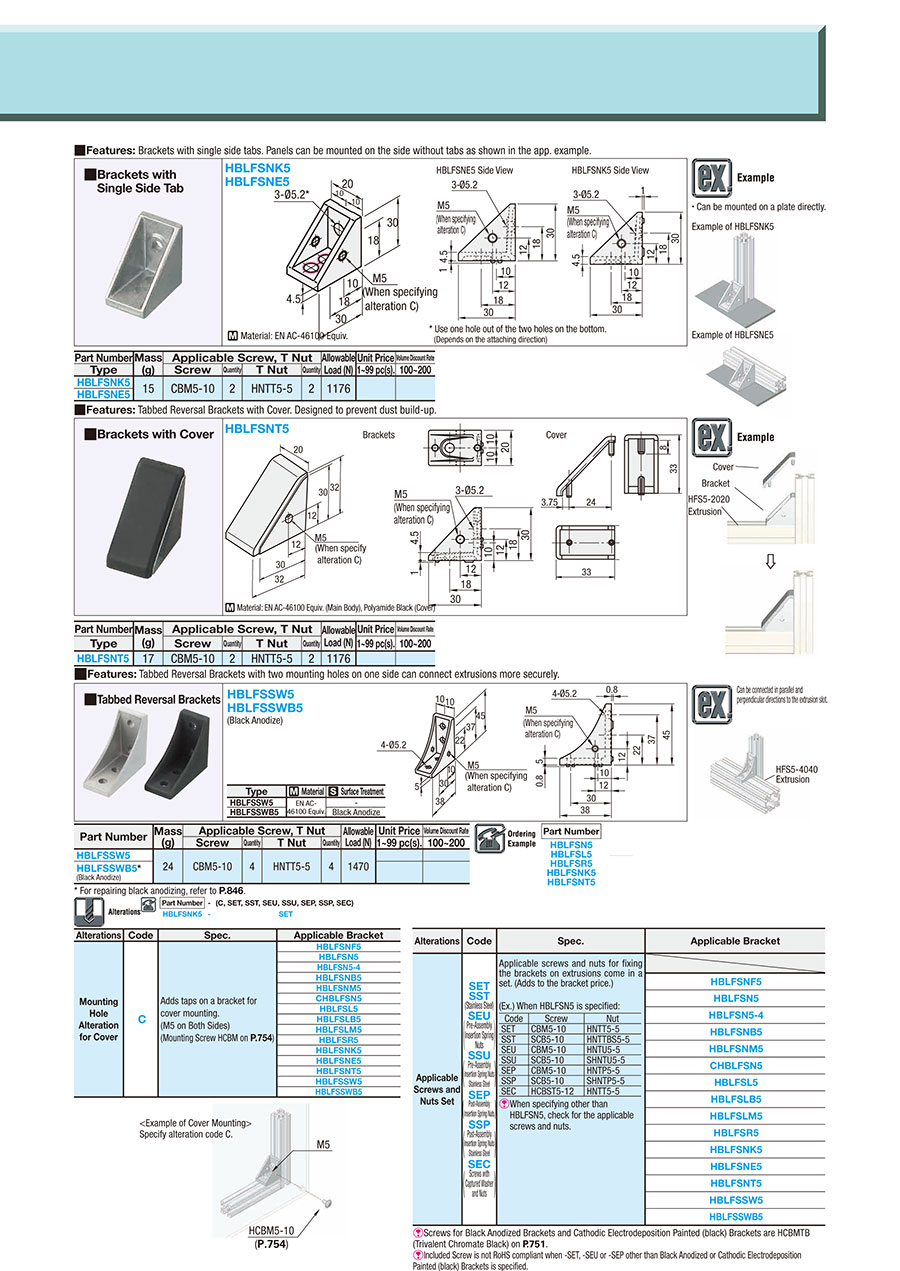

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
Material: EN AC-46100 Equiv. (Main Body), Polyamide Black (Cover)
Specifications
| Part Number |
| HBLFSN5 HBLFSL5 HBLFSR5 HBLFSNK5 HBLFSNT5 |
| Part Number | Mass (g) | Applicable Screw, T Nut | Allowable Load (N) | Unit Price | Volume Discount Rate | |||
| Type | Screw | Quantity | T Nut | Quantity | 1~99 pc(s). | 100~200 | ||
| HBLFSNT5 | 17 | CBM5-10 | 2 | HNTT5-5 | 2 | 1176 | ||
Alterations
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HBLFSNT5 |
| HBLFSNT5-C |
| HBLFSNT5-C-SEP |
| HBLFSNT5-C-SET |
| HBLFSNT5-C-SEU |
| HBLFSNT5-C-SSP |
| HBLFSNT5-C-SST |
| HBLFSNT5-C-SSU |
| HBLFSNT5-SEP |
| HBLFSNT5-SET |
| HBLFSNT5-SEU |
| HBLFSNT5-SSP |
| HBLFSNT5-SST |
| HBLFSNT5-SSU |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cover Mounting Hole Addition Work | Accessories | |
|---|---|---|---|---|---|---|
2.02 € | 1 | Available |
Same day
Stock | Not Provided | Not Provided | |
2.52 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | Not Provided | |
4.02 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SEP (Screw, Post-Assembly Insertion Spring Nut Set) | |
3.72 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SET (Screw, Nut Set) | |
4.02 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SEU (Screw, Pre-Assembly Insertion Spring Nut Set) | |
4.58 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set) | |
3.78 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SST (Stainless Steel Screw and Nut Set) | |
5.08 € | 1 | Available |
Same day
Stock | C (Tap for Cover Mounting) | SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set) | |
3.52 € | 1 | Available |
Same day
Stock | Not Provided | SEP (Screw, Post-Assembly Insertion Spring Nut Set) | |
3.21 € | 1 | Available |
Same day
Stock | Not Provided | SET (Screw, Nut Set) | |
3.52 € | 1 | Available |
Same day
Stock | Not Provided | SEU (Screw, Pre-Assembly Insertion Spring Nut Set) | |
4.08 € | 1 | Available |
Same day
Stock | Not Provided | SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set) | |
3.27 € | 1 | Available |
Same day
Stock | Not Provided | SST (Stainless Steel Screw and Nut Set) | |
4.58 € | 1 | Available |
Same day
Stock | Not Provided | SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set) |
Loading...
Example of Use
Basic information
| Bracket Shape | With Cover | Series Name | Brackets for 5 Series (Extrusion Slot Width 6mm) | Applicable Frame Width(mm) | 20 / 25 / 40 / 50 / 60 / 80 |
|---|---|---|---|---|---|
| Number of the Applicable Slots | 1 Slot | Tab Position | Tabbed at Both Sides | Additional Functions (Tabbed Bracket) | Standard |
| Perpendicularity | Outside Corner Not Provided | Material | EN AC-46100 Equiv. | Extrusion Series | HFS |
| Extrusion No. | 5 | Extrusion Size | For 20, 25, 40 | Bracket Type | Brackets with Cover |
| Applicable Screws | M5 Screws | Number of Extrusion Connection Holes | 2 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Cover Mounting Hole Addition Work
- C (Tap for Cover Mounting)
- Not Provided
-
Accessories
- Not Provided
- SEP (Screw, Post-Assembly Insertion Spring Nut Set)
- SET (Screw, Nut Set)
- SEU (Screw, Pre-Assembly Insertion Spring Nut Set)
- SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)
- SST (Stainless Steel Screw and Nut Set)
- SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)
-
Type
- HBLFSNT5
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
