8-45 Series (Groove Width 10 mm) - For 1-Row Groove - Reversing Bracket With Protrusion, 4-Mounting Hole Type

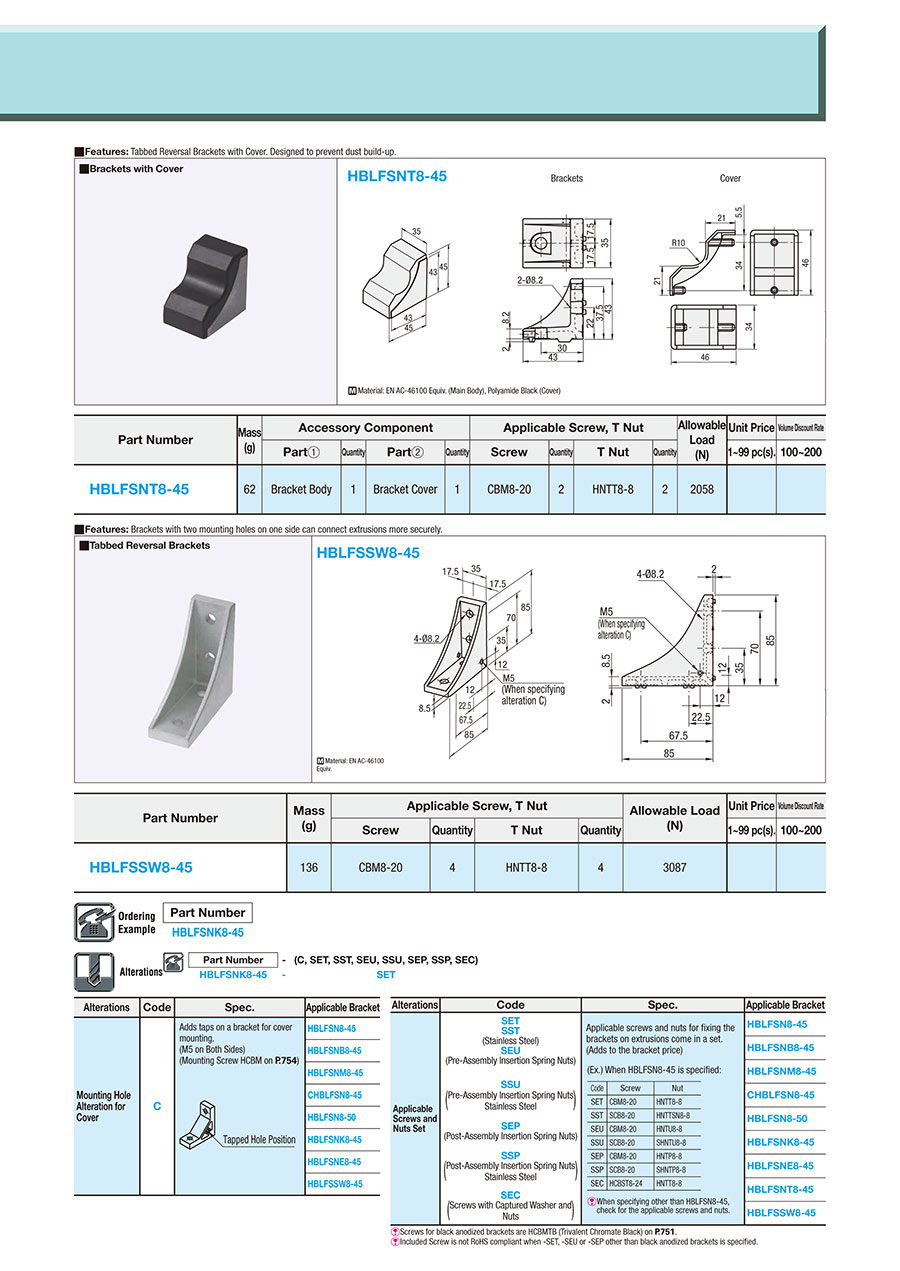

• CatalogP.2-694

• Outline drawing and specifications table
• Part number list
• More Information
• Catalog

Outline drawing and specifications table

 Material: EN AC-46100 Equiv.

Specifications

Part Number

HBLFSNK8-45

Part Number	Mass (g)	Applicable Screw, T Nut				Allowable Load (N)	Unit Price	Volume Discount Rate
		Screw	Quantity	T Nut	Quantity		1~99 pc(s).	100~200
HBLFSSW8-45	136	CBM8-20	4	HNTT8-8	4	3087

Alterations

Part number list

Number of items

30 items60 items90 items

1

Part number

HBLFSSW8-45

HBLFSSW8-45-C

HBLFSSW8-45-C-SEC

HBLFSSW8-45-C-SEP

HBLFSSW8-45-C-SET

HBLFSSW8-45-C-SEU

HBLFSSW8-45-C-SSP

HBLFSSW8-45-C-SST

HBLFSSW8-45-C-SSU

HBLFSSW8-45-SEC

HBLFSSW8-45-SEP

HBLFSSW8-45-SET

HBLFSSW8-45-SEU

HBLFSSW8-45-SSP

HBLFSSW8-45-SST

HBLFSSW8-45-SSU

Compatible Extrusion Width (mm)	Cover Mounting Hole Addition Work	Accessories	RoHS?	Minimum order quantity

45 ～ 200	Not Provided	Not Provided	10	1 pieces
45 ～ 200	C (Tap for Cover Mounting)	Not Provided	10	1 pieces
-	C (Tap for Cover Mounting)	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
-	C (Tap for Cover Mounting)	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
-	C (Tap for Cover Mounting)	SET (Screw, Nut Set)	-	1 pieces
-	C (Tap for Cover Mounting)	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
-	C (Tap for Cover Mounting)	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
-	C (Tap for Cover Mounting)	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
-	C (Tap for Cover Mounting)	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
-	Not Provided	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
-	Not Provided	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
45 ～ 200	Not Provided	SET (Screw, Nut Set)	-	1 pieces
-	Not Provided	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
-	Not Provided	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
45 ～ 200	Not Provided	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
-	Not Provided	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT) Sort by	Standard shipping days Sort by

3.78 € ( 4.50 € )	Stock item: 1 working dayAvailable for same-day shipping
4.27 € ( 5.08 € )	5 working days
8.89 € ( 10.58 € )	5 working days
7.83 € ( 9.32 € )	5 working days
7.18 € ( 8.54 € )	5 working days
7.83 € ( 9.32 € )	5 working days
8.31 € ( 9.89 € )	5 working days
7.31 € ( 8.70 € )	5 working days
9.36 € ( 11.14 € )	5 working days
8.39 € ( 9.98 € )	5 working days
7.33 € ( 8.72 € )	5 working days
6.66 € ( 7.93 € )	5 working days
7.33 € ( 8.72 € )	5 working days
7.81 € ( 9.29 € )	5 working days
6.80 € ( 8.09 € )	5 working days
8.86 € ( 10.54 € )	5 working days

1

More Information

• Basic information

Basic information

A bracket with 2 mounting holes on 1 side. You can connect the frame more firmly.

Technical information
