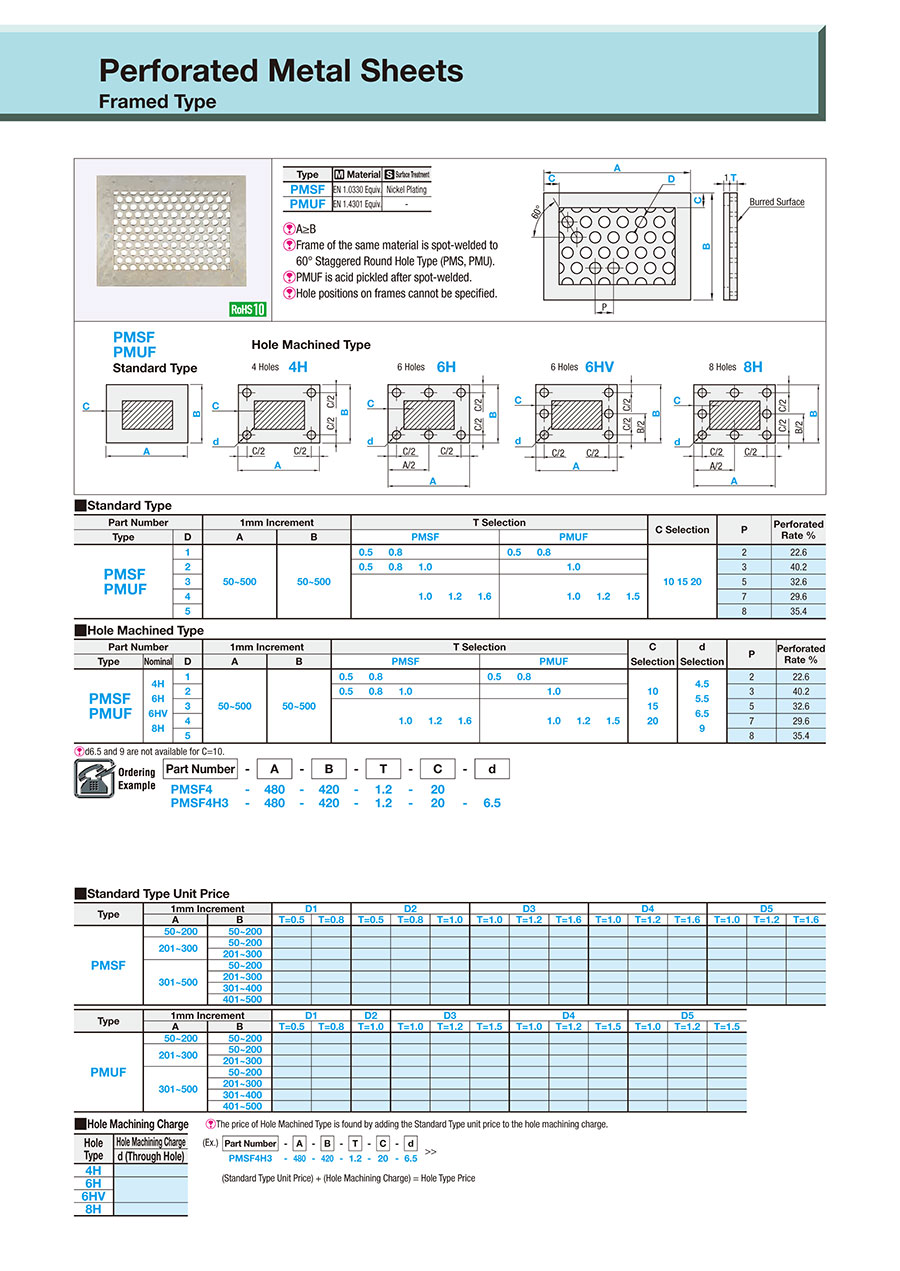

Perforated Metal/Framed

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Perforated Metal/Framed:Related Image
Perforated Metal/Framed:Related Image

Type  Material  Surface Treatment
PMSFEN 1.0330 Equiv.Nickel Plating
PMUFEN 1.4301 Equiv.-

Specifications

Part Number-A-B-T-C-d
PMSF4
PMSF4H3
-
-
480
480
-
-
420
420
-
-
1.2
1.2
-
-
20
20

-

6.5
 ■ Standard Type
Part Number1mm IncrementT SelectionC SelectionPPerforated Rate %
TypeDABPMSFPMUF
PMSF
PMUF
150~50050~5000.5 0.8 0.5 0.8 10 15 20222.6
20.5 0.8 1.0 1.0 340.2
31.0 1.2 1.61.0 1.2 1.5 532.6
4729.6
5835.4

 ■ Hole Machined Type
Part Number1mm IncrementT SelectionC Selectiond SelectionPPerforated Rate %
TypeNominalDABPMSFPMUF
PMSF
PMUF
4H
6H
6HV
8H
150~50050~5000.5 0.8 0.5 0.8 10
15
20
4.5
5.5
6.5
9
222.6
20.5 0.8 1.0 1.0 340.2
31.0 1.2 1.6 1.0 1.2 1.5 532.6
4729.6
5835.4
d6.5 and 9 are not available for C=10.

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
PMSF1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]
PMSF2-[50-500/1]-[50-500/1]-[0.5,​0.8,​1]-[10,​15,​20]
PMSF3-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]
PMSF4-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]
PMSF4H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF4H2-[50-500/1]-[50-500/1]-[0.5,​0.8,​1]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF4H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF4H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF4H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF5-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]
PMSF6H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6H2-[50-500/1]-[50-500/1]-[0.5,​0.8,​1]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6HV1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6HV2-[50-500/1]-[50-500/1]-[0.5,​0.8,​1]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6HV3-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6HV4-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF6HV5-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF8H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF8H2-[50-500/1]-[50-500/1]-[0.5,​0.8,​1]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF8H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF8H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMSF8H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.6]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]
PMUF2-[50-500/1]-[50-500/1]-1-[10,​15,​20]
PMUF3-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]
PMUF4-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]
PMUF4H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF4H2-[50-500/1]-[50-500/1]-1-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF4H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF4H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF4H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF5-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]
PMUF6H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6H2-[50-500/1]-[50-500/1]-1-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6HV1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6HV2-[50-500/1]-[50-500/1]-1-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6HV3-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6HV4-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF6HV5-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF8H1-[50-500/1]-[50-500/1]-[0.5,​0.8]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF8H2-[50-500/1]-[50-500/1]-1-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF8H3-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF8H4-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
PMUF8H5-[50-500/1]-[50-500/1]-[1,​1.2,​1.5]-[10,​15,​20]-[4.5,​5.5,​6.5,​9]
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSMaterial Hole Machining Punch Hole Dia. D
(φ)
A
(mm)
B
(mm)
C
(mm)
T
(mm)
d
(mm)

-

5 Days 10EN 1.0330 Equiv.No Drilling Alteration150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.8-

-

5 Days 10EN 1.0330 Equiv.No Drilling Alteration250 ~ 50050 ~ 50010 ~ 200.5 ~ 1-

-

5 Days 10EN 1.0330 Equiv.No Drilling Alteration350 ~ 50050 ~ 50010 ~ 201 ~ 1.6-

-

5 Days 10EN 1.0330 Equiv.No Drilling Alteration450 ~ 50050 ~ 50010 ~ 201 ~ 1.6-

-

5 Days 10EN 1.0330 Equiv.4H (Four Holes)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.4H (Four Holes)250 ~ 50050 ~ 50010 ~ 200.5 ~ 14.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.4H (Four Holes)350 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.4H (Four Holes)450 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.4H (Four Holes)550 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.No Drilling Alteration550 ~ 50050 ~ 50010 ~ 201 ~ 1.6-

-

5 Days 10EN 1.0330 Equiv.6H (Six Holes)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6H (Six Holes)250 ~ 50050 ~ 50010 ~ 200.5 ~ 14.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6H (Six Holes)350 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6H (Six Holes)450 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6H (Six Holes)550 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6HV (6-Hole, Vertical)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6HV (6-Hole, Vertical)250 ~ 50050 ~ 50010 ~ 200.5 ~ 14.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6HV (6-Hole, Vertical)350 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6HV (6-Hole, Vertical)450 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.6HV (6-Hole, Vertical)550 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.8H (8-Hole)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.8H (8-Hole)250 ~ 50050 ~ 50010 ~ 200.5 ~ 14.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.8H (8-Hole)350 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.8H (8-Hole)450 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.0330 Equiv.8H (8-Hole)550 ~ 50050 ~ 50010 ~ 201 ~ 1.64.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.No Drilling Alteration150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.8-

-

5 Days 10EN 1.4301 Equiv.No Drilling Alteration250 ~ 50050 ~ 50010 ~ 201-

-

5 Days 10EN 1.4301 Equiv.No Drilling Alteration350 ~ 50050 ~ 50010 ~ 201 ~ 1.5-

-

5 Days 10EN 1.4301 Equiv.No Drilling Alteration450 ~ 50050 ~ 50010 ~ 201 ~ 1.5-

-

5 Days 10EN 1.4301 Equiv.4H (Four Holes)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.4H (Four Holes)250 ~ 50050 ~ 50010 ~ 2014.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.4H (Four Holes)350 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.4H (Four Holes)450 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.4H (Four Holes)550 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.No Drilling Alteration550 ~ 50050 ~ 50010 ~ 201 ~ 1.5-

-

5 Days 10EN 1.4301 Equiv.6H (Six Holes)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6H (Six Holes)250 ~ 50050 ~ 50010 ~ 2014.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6H (Six Holes)350 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6H (Six Holes)450 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6H (Six Holes)550 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6HV (6-Hole, Vertical)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6HV (6-Hole, Vertical)250 ~ 50050 ~ 50010 ~ 2014.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6HV (6-Hole, Vertical)350 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6HV (6-Hole, Vertical)450 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.6HV (6-Hole, Vertical)550 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.8H (8-Hole)150 ~ 50050 ~ 50010 ~ 200.5 ~ 0.84.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.8H (8-Hole)250 ~ 50050 ~ 50010 ~ 2014.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.8H (8-Hole)350 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.8H (8-Hole)450 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

-

5 Days 10EN 1.4301 Equiv.8H (8-Hole)550 ~ 50050 ~ 50010 ~ 201 ~ 1.54.5 ~ 9

Loading...

  1. 1

More Information

A≥B
Frame of the same material is spot-welded to 60° Staggered Round Hole Type (PMS, PMU).
PMUF is acid pickled after spot-welded.
Hole positions on frames cannot be specified.

Basic information

Specifications Framed Type
