Fence Nets / Welded

Fence Nets / Welded

Click on this image to zoom in.

Click on this image to zoom in.

  • Fence Nets / Welded
  • Fence Nets / Welded

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

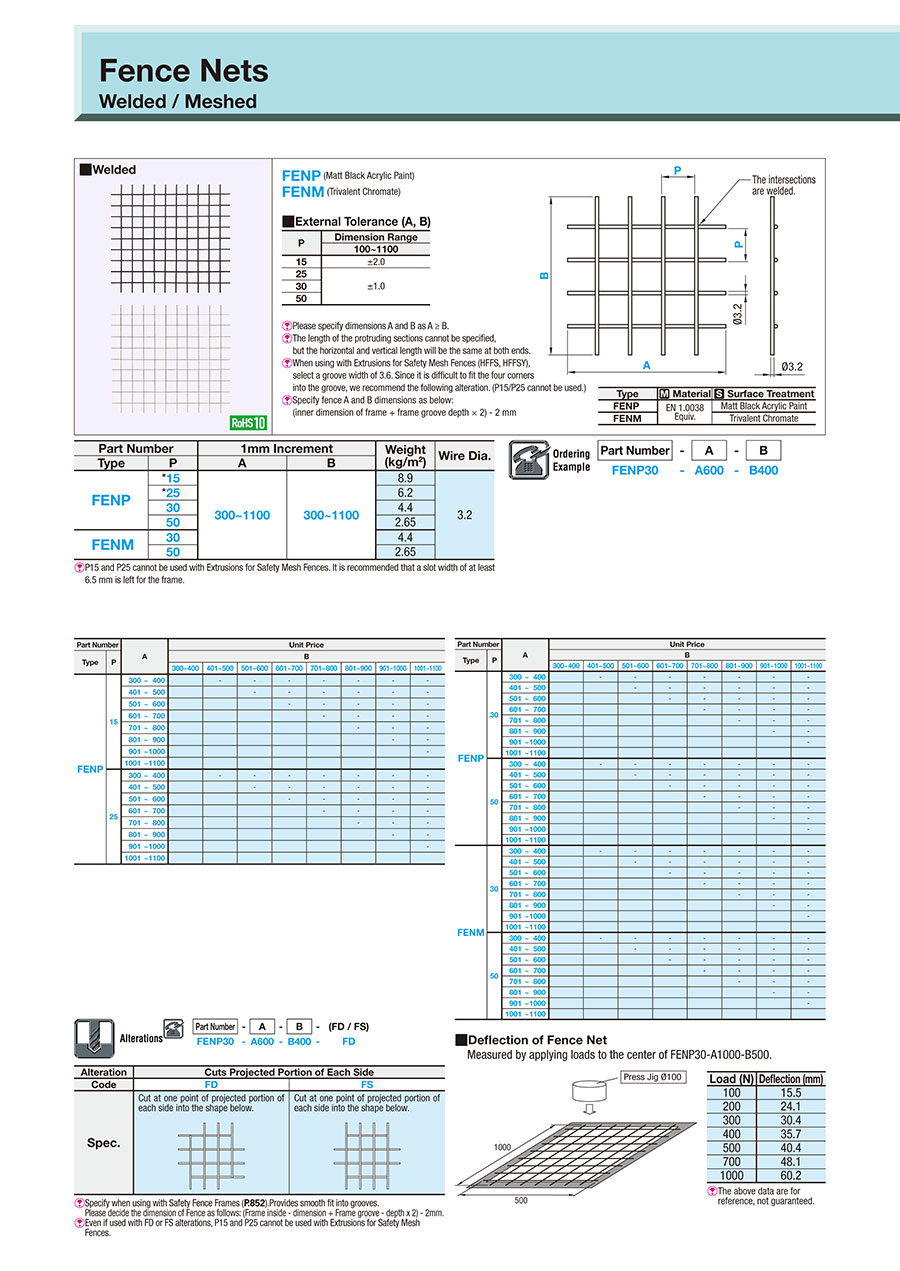

Fence Nets/Welded:Related Image

Type  Material  Surface Treatment
FENPEN 1.0038 Equiv.Matt Black Acrylic Paint
FENMTrivalent Chromate

Specifications

Part Number - A - B
FENP30 - A600 - B400
Part Number 1mm Increment Weight (kg/m2) Wire Dia.
Type P A B
FENP *15 300~1100 300~1100 8.9 3.2
*25 6.2
30 4.4
50 2.65
FENM 30 4.4
50 2.65
P15 and P25 cannot be used with Extrusions for Safety Mesh Fences. It is recommended that a slot width of at least
6.5 mm is left for the frame.

Alterations

Fence Nets/Welded:Related Image

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
FENM30-A[100-2000/1]-B[100-1100/1]
FENM50-A[100-2000/1]-B[100-1100/1]
FENP15-A[100-1100/1]-B[100-1100/1]
FENP25-A[100-2000/1]-B[100-1100/1]
FENP30-A[100-2000/1]-B[100-1100/1]
FENP50-A[100-2000/1]-B[100-1100/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSSurface Treatment Mesh Width
(mm)
A
(mm)
B
(mm)
1 7 Days 10Trivalent Chromate30100 ~ 2000100 ~ 1100
1 7 Days 10Trivalent Chromate50100 ~ 2000100 ~ 1100
1 7 Days 10Matt Black Acrylic Paint15100 ~ 1100100 ~ 1100
1 7 Days 10Matt Black Acrylic Paint25100 ~ 2000100 ~ 1100
1 7 Days 10Matt Black Acrylic Paint30100 ~ 2000100 ~ 1100
1 8 Days 10Matt Black Acrylic Paint50100 ~ 2000100 ~ 1100

Loading...

  1. 1

More Information

Fence Nets/Welded:Related Image

Basic information

Material EN 1.0038 Equiv.
