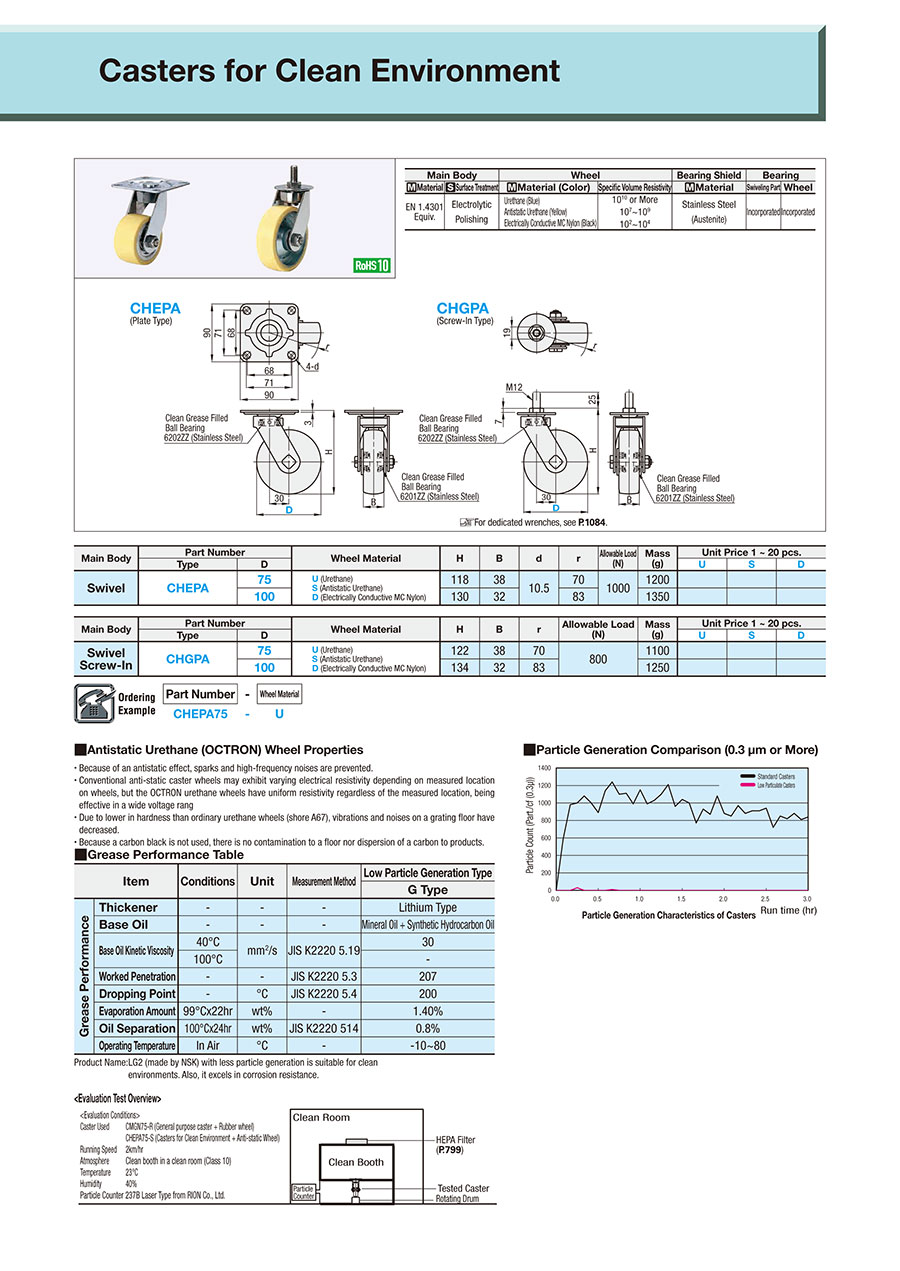

Castors for Clean Environment / Plate Type with Swivel
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Main Body | Wheel | Bearing Shield | Bearing | |||
| Material | Surface Treatment | Material (Color) | Specific Volume Resistivity | Material | Swiveling Part | Wheel |
| EN 1.4301 Equiv. | Electrolytic Polishing | Urethane (Blue) Antistatic Urethane (Yellow) Electrically Conductive MC Nylon (Black) | 1010 or More 107~109 102~104 | Stainless Steel (Austenite) | Incorporated | Incorporated |
Specifications
| Part Number | - | Wheel Material |
| CHEPA75 | - | U |
| Main Body | Part Number | Wheel Material | H | B | d | r | Allowable Load (N) | Mass (g) | Unit Price 1 ~ 20 pcs. | |||
| Type | D | U | S | D | ||||||||
| Swivel | CHEPA | 75 | U (Urethane) S (Antistatic Urethane) D (Electrically Conductive MC Nylon) | 118 | 38 | 10.5 | 70 | 1000 | 1200 | |||
| 100 | 130 | 32 | 83 | 1350 | ||||||||
| Main Body | Part Number | Wheel Material | H | B | r | Allowable Load (N) | Mass (g) | Unit Price 1 ~ 20 pcs. | |||
| Type | D | U | S | D | |||||||
| Swivel Screw-In | CHGPA | 75 | U (Urethane) S (Antistatic Urethane) D (Electrically Conductive MC Nylon) | 122 | 38 | 70 | 800 | 1100 | |||
| 100 | 134 | 32 | 83 | 1250 | |||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| CHEPA75-D |
| CHEPA75-S |
| CHEPA75-U |
| CHEPA100-D |
| CHEPA100-S |
| CHEPA100-U |
| CHGPA75-D |
| CHGPA75-S |
| CHGPA75-U |
| CHGPA100-D |
| CHGPA100-S |
| CHGPA100-U |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Caster Type | [H] Mounting Height (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Pitch, Longitudinal Direction (mm) | Mounting Hole Pitch, Transverse Direction (mm) | Plate Length (mm) | Plate Width (mm) | Thread Dia. M | [D] Wheel Diameter (mm) | Wheel Width B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
188.91 € | 1 | 16 Days | 10 | Plate Type Swivel | 118 | 80.01 to 140.00 | 100 | [Nylon] Electrically Conductive MC Nylon | Antistatic | 68 | 71 | 90 | 90 | - | 75 | 38 | ||
196.47 € | 1 | 16 Days | 10 | Plate Type Swivel | 118 | 80.01 to 140.00 | 100 | [Urethane] Antistatic Urethane | Antistatic | 68 | 71 | 90 | 90 | - | 75 | 38 | ||
175.06 € | 1 | 18 Days | 10 | Plate Type Swivel | 118 | 80.01 to 140.00 | 100 | [Urethane] Urethane (General) | Not Provided | 68 | 71 | 90 | 90 | - | 75 | 38 | ||
220.40 € | 1 | 16 Days | 10 | Plate Type Swivel | 130 | 80.01 to 140.00 | 100 | [Nylon] Electrically Conductive MC Nylon | Antistatic | 68 | 71 | 90 | 90 | - | 100 | 32 | ||
215.35 € | 1 | 64 Days | 10 | Plate Type Swivel | 130 | 80.01 to 140.00 | 100 | [Urethane] Antistatic Urethane | Antistatic | 68 | 71 | 90 | 90 | - | 100 | 32 | ||
170.03 € | 1 | 64 Days | 10 | Plate Type Swivel | 130 | 80.01 to 140.00 | 100 | [Urethane] Urethane (General) | Not Provided | 68 | 71 | 90 | 90 | - | 100 | 32 | ||
188.91 € | 1 | 16 Days | 10 | Screw-In Type | 122 | 35.01 to 80.00 | 80 | [Nylon] Electrically Conductive MC Nylon | Antistatic | - | - | - | - | M12 | 75 | 38 | ||
196.47 € | 1 | 16 Days | 10 | Screw-In Type | 122 | 35.01 to 80.00 | 80 | [Urethane] Antistatic Urethane | Antistatic | - | - | - | - | M12 | 75 | 38 | ||
181.34 € | 1 | 16 Days | 10 | Screw-In Type | 122 | 35.01 to 80.00 | 80 | [Urethane] Urethane (General) | Not Provided | - | - | - | - | M12 | 75 | 38 | ||
220.40 € | 1 | 16 Days | 10 | Screw-In Type | 134 | 35.01 to 80.00 | 80 | [Nylon] Electrically Conductive MC Nylon | Antistatic | - | - | - | - | M12 | 100 | 32 | ||
215.35 € | 1 | 64 Days | 10 | Screw-In Type | 134 | 35.01 to 80.00 | 80 | [Urethane] Antistatic Urethane | Antistatic | - | - | - | - | M12 | 100 | 32 | ||
168.76 € | 1 | 64 Days | 10 | Screw-In Type | 134 | 35.01 to 80.00 | 80 | [Urethane] Urethane (General) | Not Provided | - | - | - | - | M12 | 100 | 32 |
Loading...
More Information
Basic information
| Stopper | Not Provided | Fitting Material | Stainless Steel | Load Category | Light/Medium Load |
|---|---|---|---|---|---|
| Bearing in Wheel | Provided |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
-
[H] Mounting Height(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
-
Allowable Load(daN)
-
Wheel Material
- Nylon
- Urethane
- Nylon
-
Wheel Characteristics
- Antistatic
- Not Provided
-
Mounting Hole Pitch, Longitudinal Direction(mm)
-
Mounting Hole Pitch, Transverse Direction(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Thread Dia. M
-
[D] Wheel Diameter(mm)
-
Wheel Width B(mm)
-
Type
- CHEPA
- CHGPA
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 16 Days or Less
- 18 Days or Less
- 64 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
