Cast Castors / Swivel Type

CatalogP.2-1097

Part number:

Still undefined. 80 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Swivel
CPBR·CPBR－B

Fixed
CPBK·CPBK－B

Trailered Use
CPBRN

Only CPBRN is
with Grease Nipple

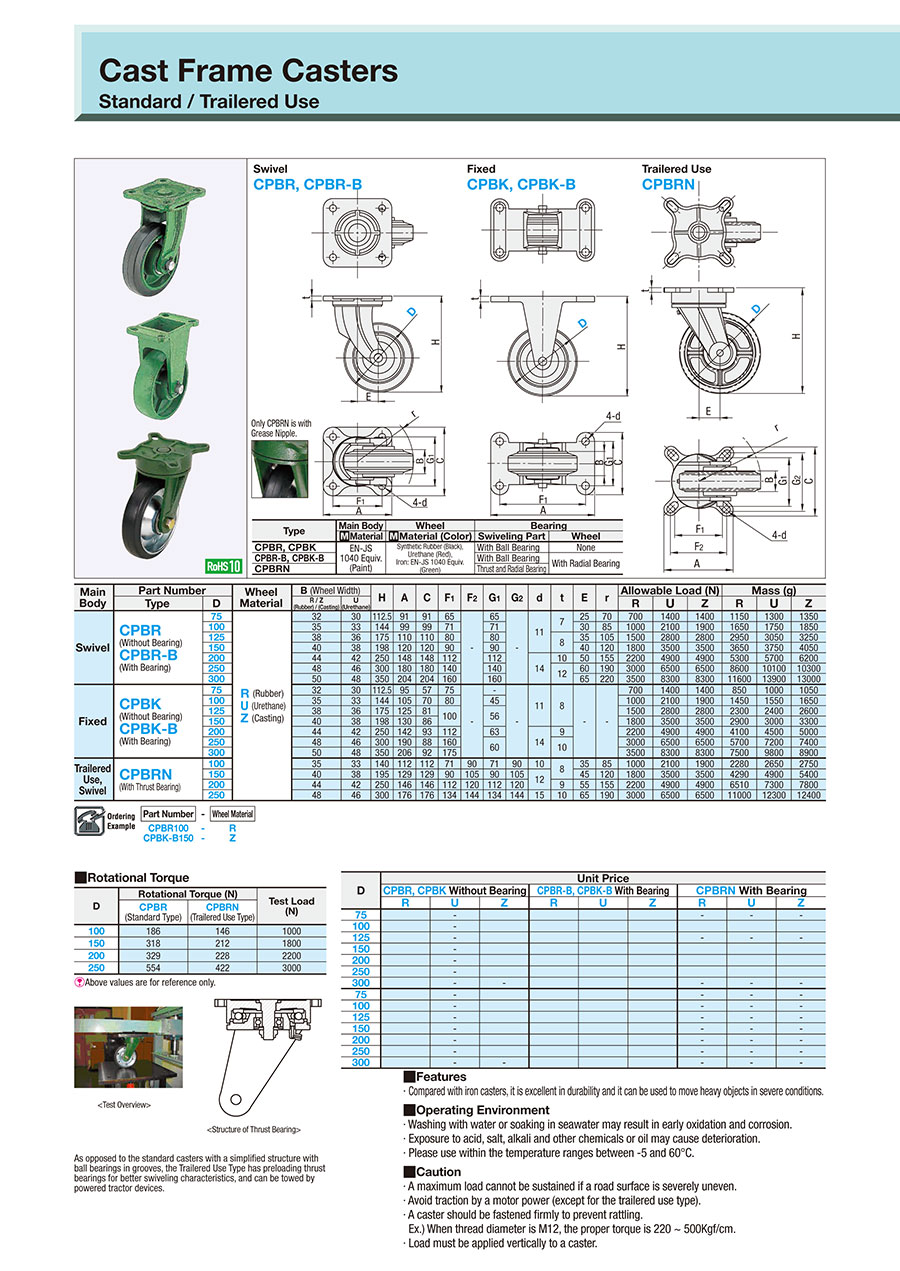

Cast Frame Casters - Standard / Trailered Use: Related Image

Type	Main Body	Wheel	Bearing
Type	[M] Material	[M]Material (Color)	Swiveling Part	Wheel
CPBR·CPBK	EN−JS 1040 Equiv. (Coating)	Synthetic Rubber (Black) Urethane (Red) Steel: EN−JS 1040 Equiv. (Green)	With Ball Bearing	None
CPBR－B·CPBK－B			With Ball Bearing	With Radial Bearing
CPBRN			Thrust and Radial Bearing	With Radial Bearing

Specification Table

Part Number	—	Wheel Material
CPBR100 CPBK－B150	— —	R Z

Main Body Type	Part Number		Wheel Material	B (Wheel Width)		H	A	C	F₁	F₂	G₁	G₂	d	t	E	r	Allowable Load (N)			Mass (g)
Main Body Type	Type	D	Wheel Material	R·Z (Rubber)/ (Casting)	U (Urethane)	H	A	C	F₁	F₂	G₁	G₂	d	t	E	r	R	U	Z	R	U	Z
Swivel Type	CPBR (Without Bearing) CPBR－B (With Bearing)	75	R(Rubber) U (Urethane) Z (Casting)	32	30	112.5	91	91	65	—	65	—	11	7	25	70	700	1400	1400	1150	1300	1350
		100		35	33	144	99	99	71		71			7	30	85	1000	2100	1900	1650	1750	1850
		125		38	36	175	110	110	80		80			8	35	105	1500	2800	2800	2950	3050	3250
		150		40	38	198	120	120	90		90			8	40	120	1800	3500	3500	3650	3750	4050
		200		44	42	250	148	148	112		112		14	10	50	155	2200	4900	4900	5300	5700	6200
		250		48	46	300	180	180	140		140			12	60	190	3000	6500	6500	8600	10100	10300
		300		50	48	350	204	204	160		160			12	65	220	3500	8300	8300	11600	13900	13000
Fixed Type	CPBK (Without Bearing) CPBK－B (With Bearing)	75		32	30	112.5	95	57	75	—	—	—	11	8	—	—	700	1400	1400	850	1000	1050
		100		35	33	144	105	70	80		45						1000	2100	1900	1450	1550	1650
		125		38	36	175	125	81	100		56						1500	2800	2800	2300	2400	2600
		150		40	38	198	130	86	100		56						1800	3500	3500	2900	3000	3300
		200		44	42	250	142	93	112		63		14	9			2200	4900	4900	4100	4500	5000
		250		48	46	300	190	88	160		60			10			3000	6500	6500	5700	7200	7400
		300		50	48	350	206	92	175		60			10			3500	8300	8300	7500	9800	8900
Trailered Use / Swivel Type	CPBRN (With Thrust Bearing)	100		35	33	140	112	112	71	90	71	90	10	8	35	85	1000	2100	1900	2280	2650	2750
		150		40	38	195	129	129	90	105	90	105	12	8	45	120	1800	3500	3500	4290	4900	5400
		200		44	42	250	146	146	112	120	112	120	12	9	55	155	2200	4900	4900	6510	7300	7800
		250		48	46	300	176	176	134	144	134	144	15	10	65	190	3000	6500	6500	11000	12300	12400

Part number list

Number of items

Part number

Caster Type

[H] Mounting Height

(mm)

Load Range

(daN)

Allowable Load

(daN)

Wheel Material

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

Load Category

Bearing in Wheel

RoHS?

Minimum order quantity

Plate Type Fixed	112.5	35.01 to 80.00	70	[Synthetic Rubber] Synthetic Rubber (General)	75	-	95	57	75	32	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	112.5	80.01 to 140.00	140	[Steel] EN-JS 1040 Equiv.	75	-	95	57	75	32	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	144	80.01 to 140.00	100	[Synthetic Rubber] Synthetic Rubber (General)	80	45	105	70	100	35	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	144	140.01 to 220.00	190	[Steel] EN-JS 1040 Equiv.	80	45	105	70	100	35	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	175	140.01 to 220.00	150	[Synthetic Rubber] Synthetic Rubber (General)	100	56	125	81	125	38	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	175	220.01 to 320.00	280	[Steel] EN-JS 1040 Equiv.	100	56	125	81	125	38	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	198	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	100	56	130	86	150	40	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	198	320.01 to 485.00	350	[Steel] EN-JS 1040 Equiv.	100	56	130	86	150	40	Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	250	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	112	63	142	93	200	44	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Fixed	250	485.01 to 750.00	490	[Steel] EN-JS 1040 Equiv.	112	63	142	93	200	44	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Fixed	300	220.01 to 320.00	300	[Synthetic Rubber] Synthetic Rubber (General)	160	60	190	88	250	48	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Fixed	300	485.01 to 750.00	650	[Steel] EN-JS 1040 Equiv.	160	60	190	88	250	48	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Fixed	350	320.01 to 485.00	350	[Synthetic Rubber] Synthetic Rubber (General)	175	60	206	92	300	50	[Ultra Heavy Load] Ultra Heavy Load	Not Provided	10	1 pieces
Plate Type Fixed	112.5	35.01 to 80.00	70	[Synthetic Rubber] Synthetic Rubber (General)	75	-	95	57	75	32	Medium Load	Provided	10	1 pieces
Plate Type Fixed	112.5	80.01 to 140.00	140	[Urethane] Urethane (General)	75	-	95	57	75	30	Medium Load	Provided	10	1 pieces
Plate Type Fixed	112.5	80.01 to 140.00	140	[Steel] EN-JS 1040 Equiv.	75	-	95	57	75	32	Medium Load	Provided	10	1 pieces
Plate Type Fixed	144	80.01 to 140.00	100	[Synthetic Rubber] Synthetic Rubber (General)	80	45	105	70	100	35	Medium Load	Provided	10	1 pieces
Plate Type Fixed	144	140.01 to 220.00	210	[Urethane] Urethane (General)	80	45	105	70	100	33	Medium Load	Provided	10	1 pieces
Plate Type Fixed	144	140.01 to 220.00	190	[Steel] EN-JS 1040 Equiv.	80	45	105	70	100	35	Medium Load	Provided	10	1 pieces
Plate Type Fixed	175	140.01 to 220.00	150	[Synthetic Rubber] Synthetic Rubber (General)	100	56	125	81	125	38	Medium Load	Provided	10	1 pieces
Plate Type Fixed	175	220.01 to 320.00	280	[Urethane] Urethane (General)	100	56	125	81	125	36	Medium Load	Provided	10	1 pieces
Plate Type Fixed	175	220.01 to 320.00	280	[Steel] EN-JS 1040 Equiv.	100	56	125	81	125	38	Medium Load	Provided	10	1 pieces
Plate Type Fixed	198	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	100	56	130	86	150	40	Medium Load	Provided	10	1 pieces
Plate Type Fixed	198	320.01 to 485.00	350	[Urethane] Urethane (General)	100	56	130	86	150	38	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Fixed	198	320.01 to 485.00	350	[Steel] EN-JS 1040 Equiv.	100	56	130	86	150	40	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Fixed	250	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	112	63	142	93	200	44	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	250	485.01 to 750.00	490	[Urethane] Urethane (General)	112	63	142	93	200	42	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	250	485.01 to 750.00	490	[Steel] EN-JS 1040 Equiv.	112	63	142	93	200	44	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	300	220.01 to 320.00	300	[Synthetic Rubber] Synthetic Rubber (General)	160	60	190	88	250	48	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	300	485.01 to 750.00	650	[Urethane] Urethane (General)	160	60	190	88	250	46	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	300	485.01 to 750.00	600	[Steel] EN-JS 1040 Equiv.	160	60	190	88	250	48	[Heavy Load] Heavy Load	Provided	10	1 pieces
Plate Type Fixed	350	320.01 to 485.00	350	[Synthetic Rubber] Synthetic Rubber (General)	175	60	206	92	300	50	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Fixed	350	750.01 or More	830	[Urethane] Urethane (General)	175	60	206	92	300	48	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Fixed	350	750.01 or More	830	[Steel] EN-JS 1040 Equiv.	175	60	206	92	300	50	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Swivel	112.5	35.01 to 80.00	70	[Synthetic Rubber] Synthetic Rubber (General)	65	65	91	91	75	32	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	112.5	80.01 to 140.00	140	[Steel] EN-JS 1040 Equiv.	65	65	91	91	75	32	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	100	[Synthetic Rubber] Synthetic Rubber (General)	71	71	99	99	100	35	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	190	[Steel] EN-JS 1040 Equiv.	71	71	99	99	100	35	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	175	140.01 to 220.00	150	[Synthetic Rubber] Synthetic Rubber (General)	80	80	110	110	125	38	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	175	220.01 to 320.00	280	[Steel] EN-JS 1040 Equiv.	80	80	110	110	125	38	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	198	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	90	90	120	120	150	40	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	198	320.01 to 485.00	350	[Steel] EN-JS 1040 Equiv.	90	90	120	120	150	40	Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	250	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	112	112	148	148	200	44	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Swivel	250	485.01 to 750.00	490	[Steel] EN-JS 1040 Equiv.	112	112	148	148	200	44	[Heavy Load] Heavy Load	Not Provided	10	1 pieces
Plate Type Swivel	300	220.01 to 320.00	300	[Synthetic Rubber] Synthetic Rubber (General)	140	140	180	180	250	48	[Ultra Heavy Load] Ultra Heavy Load	Not Provided	10	1 pieces
Plate Type Swivel	300	485.01 to 750.00	650	[Steel] EN-JS 1040 Equiv.	140	140	180	180	250	48	[Ultra Heavy Load] Ultra Heavy Load	Not Provided	10	1 pieces
Plate Type Swivel	350	320.01 to 485.00	350	[Synthetic Rubber] Synthetic Rubber (General)	160	160	204	204	300	50	[Ultra Heavy Load] Ultra Heavy Load	Not Provided	10	1 pieces
Plate Type Swivel	112.5	35.01 to 80.00	70	[Synthetic Rubber] Synthetic Rubber (General)	65	65	91	91	75	32	Medium Load	Provided	10	1 pieces
Plate Type Swivel	112.5	80.01 to 140.00	140	[Urethane] Urethane (General)	65	65	91	91	75	30	Medium Load	Provided	10	1 pieces
Plate Type Swivel	112.5	80.01 to 140.00	140	[Steel] EN-JS 1040 Equiv.	65	65	91	91	75	32	Medium Load	Provided	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	100	[Synthetic Rubber] Synthetic Rubber (General)	71	71	99	99	100	35	Medium Load	Provided	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	210	[Urethane] Urethane (General)	71	71	99	99	100	33	Medium Load	Provided	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	190	[Steel] EN-JS 1040 Equiv.	71	71	99	99	100	35	Medium Load	Provided	10	1 pieces
Plate Type Swivel	175	140.01 to 220.00	150	[Synthetic Rubber] Synthetic Rubber (General)	80	80	110	110	125	38	Medium Load	Provided	10	1 pieces
Plate Type Swivel	175	220.01 to 320.00	280	[Urethane] Urethane (General)	80	80	110	110	125	36	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Swivel	175	220.01 to 320.00	280	[Steel] EN-JS 1040 Equiv.	80	80	110	110	125	38	[Ultra Heavy Load] Ultra Heavy Load	Provided	10	1 pieces
Plate Type Swivel	198	140.01 to 220.00	180	[Synthetic Rubber] Synthetic Rubber (General)	90	90	120	120	150	40	Medium Load	Provided	10	1 pieces
Plate Type Swivel	198	320.01 to 485.00	350	[Urethane] Urethane (General)	90	90	120	120	150	38	Medium Load	Provided	10	1 pieces
Plate Type Swivel	198	320.01 to 485.00	350	[Steel] EN-JS 1040 Equiv.	90	90	120	120	150	40	Medium Load	Provided	10	1 pieces
Plate Type Swivel	250	140.01 to 220.00	220	[Synthetic Rubber] Synthetic Rubber (General)	112	112	148	148	200	44	[Heavy Load] Heavy Load	Provided	10	1 pieces
