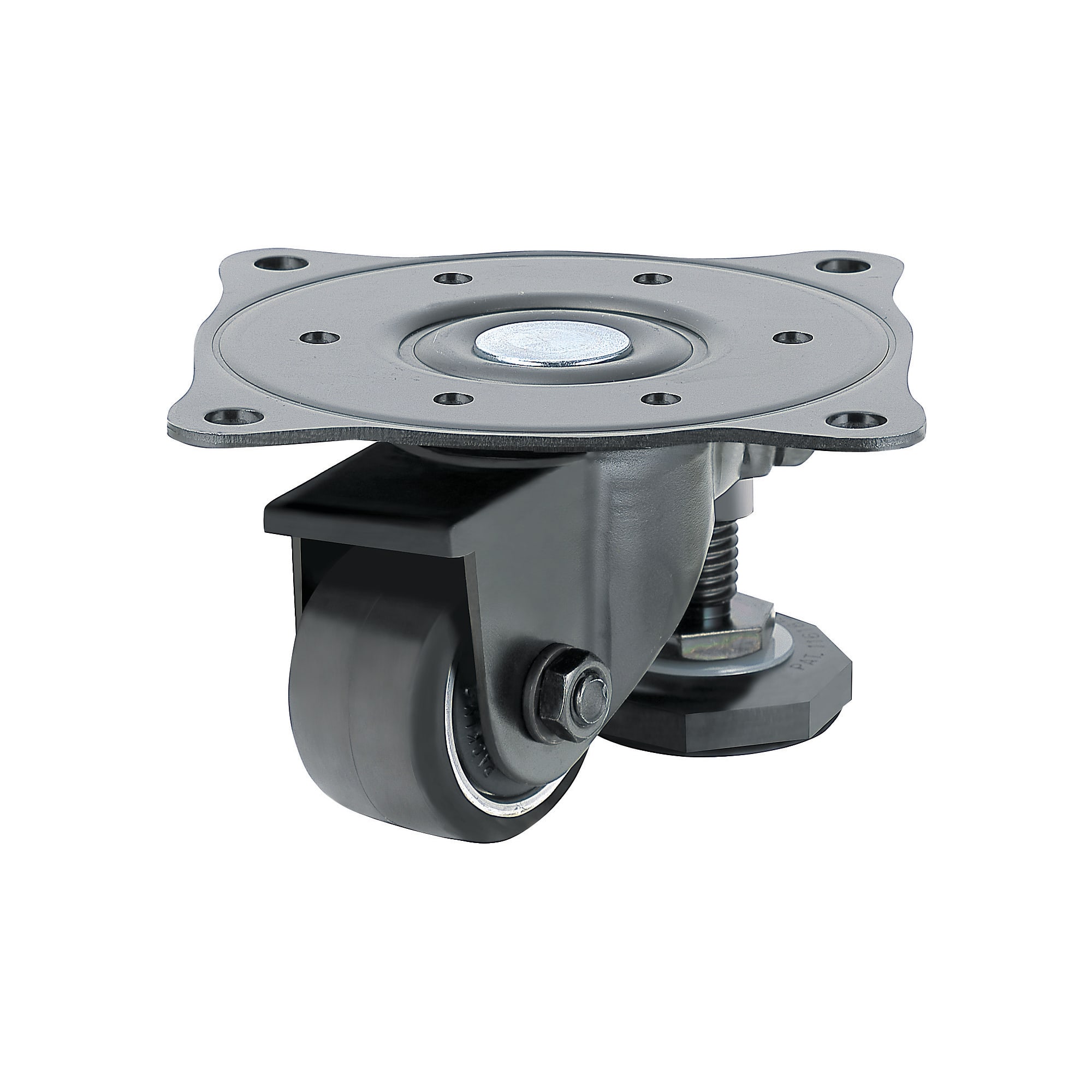

Castors with Adjustment Pads / Light Load Type
Mouse over image to enlarge
Part number:
possible part numbers found.Outline drawing and specifications table
View X
How to Lock Caster Swiveling
Turn the nut (1) up until it contacts the upper plate.
(2) After step (1), insert pins from the upper side of the plate to lock caster swiveling.
Installation Method
1) Lower the adjustment bolt to a desired height.
2) Turn the nut (1) up and fix the location.
Turn the nut (1) up until it contacts the upper plate.
(2) After step (1), insert pins from the upper side of the plate to lock caster swiveling.
Installation Method
1) Lower the adjustment bolt to a desired height.
2) Turn the nut (1) up and fix the location.
(Recommended Pin Dia.)
[ ! ] The pin is not included.
| D | Pin Dia. | Overall Length |
| 50 | ⌀6 | 20 |
| 60 | ⌀8 | 25 |
| 75 | ⌀8 | 35 |
| Type | Main Body | Wheel | Leveling Mount | Bearing | ||
| [M] Material | [S] Surface Treatment | [M] Material | [M] Material | Swiveling Part | Wheel | |
| CMAF | EN 1.0320 Equiv. (hot coiled) | Black Chromate | Phenol | Neoprene Rubber | Provided | Provided |
Specification Table
| Part Number | — | Wheel Material |
| CMAF65 | — | F |
| Part Number | Wheel Material | B | H | F | A | S1 | S2 | d1 | d2 | t | E1 | E2 | r1 | r2 | Allowable Load (N) | |
| Type | D | |||||||||||||||
| CMAF | 50 | F (Phenol) | 28 | 68 | 110 | 90 | 5 | 5 | 8.5 | 6.2 | 2.3 | 25 | 35 | 53 | 61 | 1500 |
| 65 | 36 | 92 | 144 | 125 | 10 | 10 | 10.5 | 8.2 | 3.2 | 25 | 49 | 61 | 75 | 2000 | ||
| 75 | 106 | 28 | 69 | 2100 | ||||||||||||
More Information
Basic information
An integrated caster with the leveling mount which can be raised while running and lowered while installing
