Castors with Adjustment Pads / Medium Load
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

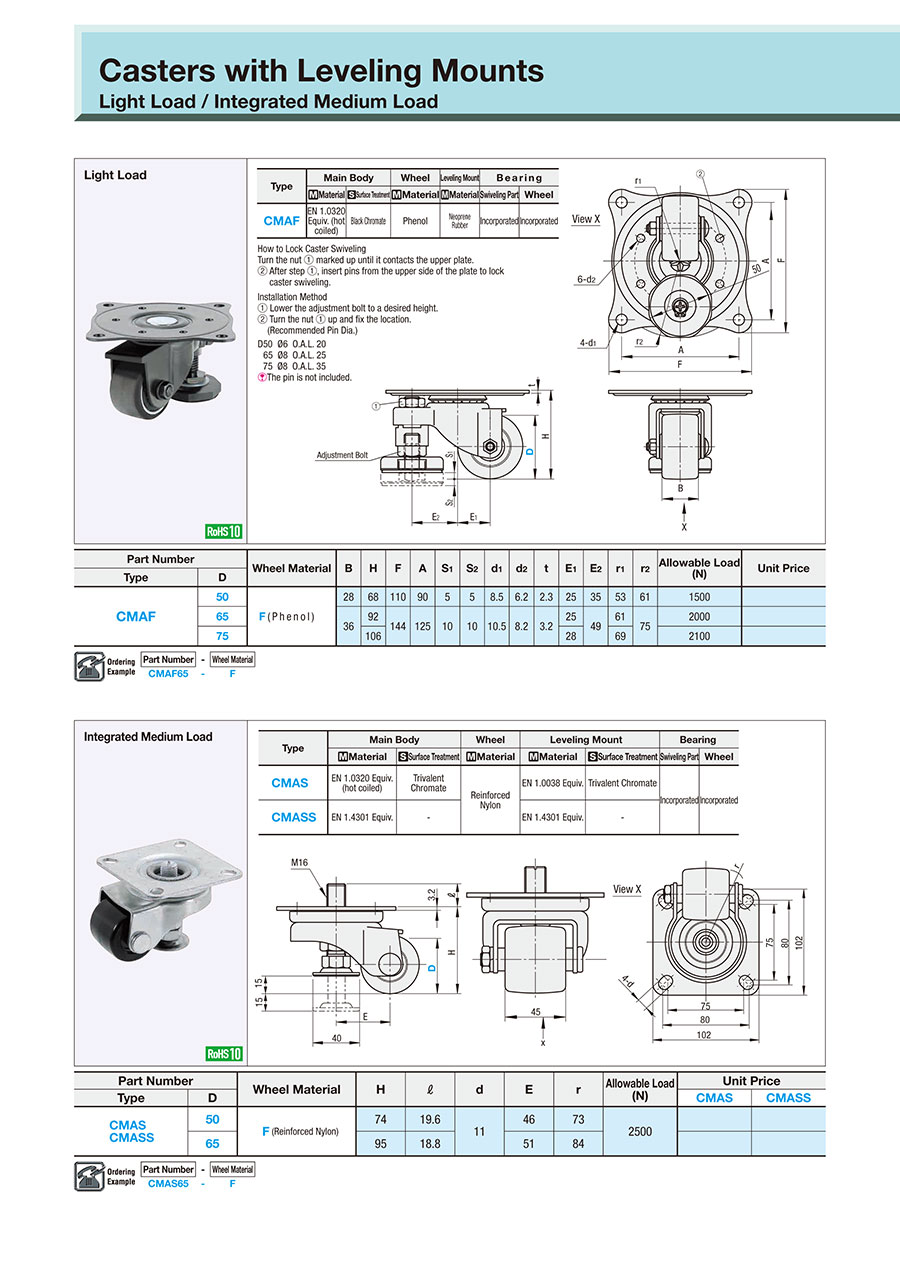

- Catalog
| Type | Main Body | Wheel | Leveling Mount | Bearing | |||
| Material | Surface Treatment | Material | Material | Surface Treatment | Swiveling Part | Wheel | |
| CMAS | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | Reinforced Nylon | EN 1.0038 Equiv. | Trivalent Chromate | Incorporated | Incorporated |
| CMASS | EN 1.4301 Equiv. | - | EN 1.4301 Equiv. | - | |||
Specifications
| Part Number | - | Wheel Material |
| CMAS65 | - | F |
| Part Number | Wheel Material | H | ℓ | d | E | r | Allowable Load (N) | Unit Price | ||
| Type | D | CMAS | CMASS | |||||||
| CMAS CMASS | 50 | F(Reinforced Nylon) | 74 | 19.6 | 11 | 46 | 73 | 2500 | ||
| 65 | 95 | 18.8 | 51 | 84 | ||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| CMAS50-F |
| CMAS65-F |
| CMASS50-F |
| CMASS65-F |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | [H] Mounting Height (mm) | Fitting Material | [D] Wheel Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|
25.19 € | 1 | Available |
Same day
Stock | 10 | 74 | Steel | 50 | |
30.11 € | 1 | Available |
Same day
Stock | 10 | 95 | Steel | 65 | |
88.02 € | 1 | Available | 5 Days | 10 | 74 | Stainless Steel | 50 | |
115.88 € | 1 | Available | 5 Days | 10 | 95 | Stainless Steel | 65 |
Loading...
Basic information
| Caster Type | With Leveling Mounts | Load Range(daN) | 220.01 to 320.00 | Stopper | Not Provided |
|---|---|---|---|---|---|
| Allowable Load(daN) | 250 | Wheel Material | Reinforced Nylon | Wheel Characteristics | Not Provided |
| Mounting Hole Pitch, Longitudinal Direction(mm) | 80 | Mounting Hole Pitch, Transverse Direction(mm) | 75 | Plate Length(mm) | 102 |
| Plate Width(mm) | 102 | Wheel Width B(mm) | 45 | Load Category | Medium Load |
| Bearing in Wheel | Provided |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
[H] Mounting Height(mm)
-
Fitting Material
- Steel
- Stainless Steel
-
[D] Wheel Diameter(mm)
-
Type
- CMAS
- CMASS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
