Caster Medium Duty CJM□ CKM□ CTM□

Click image to view enlarged image

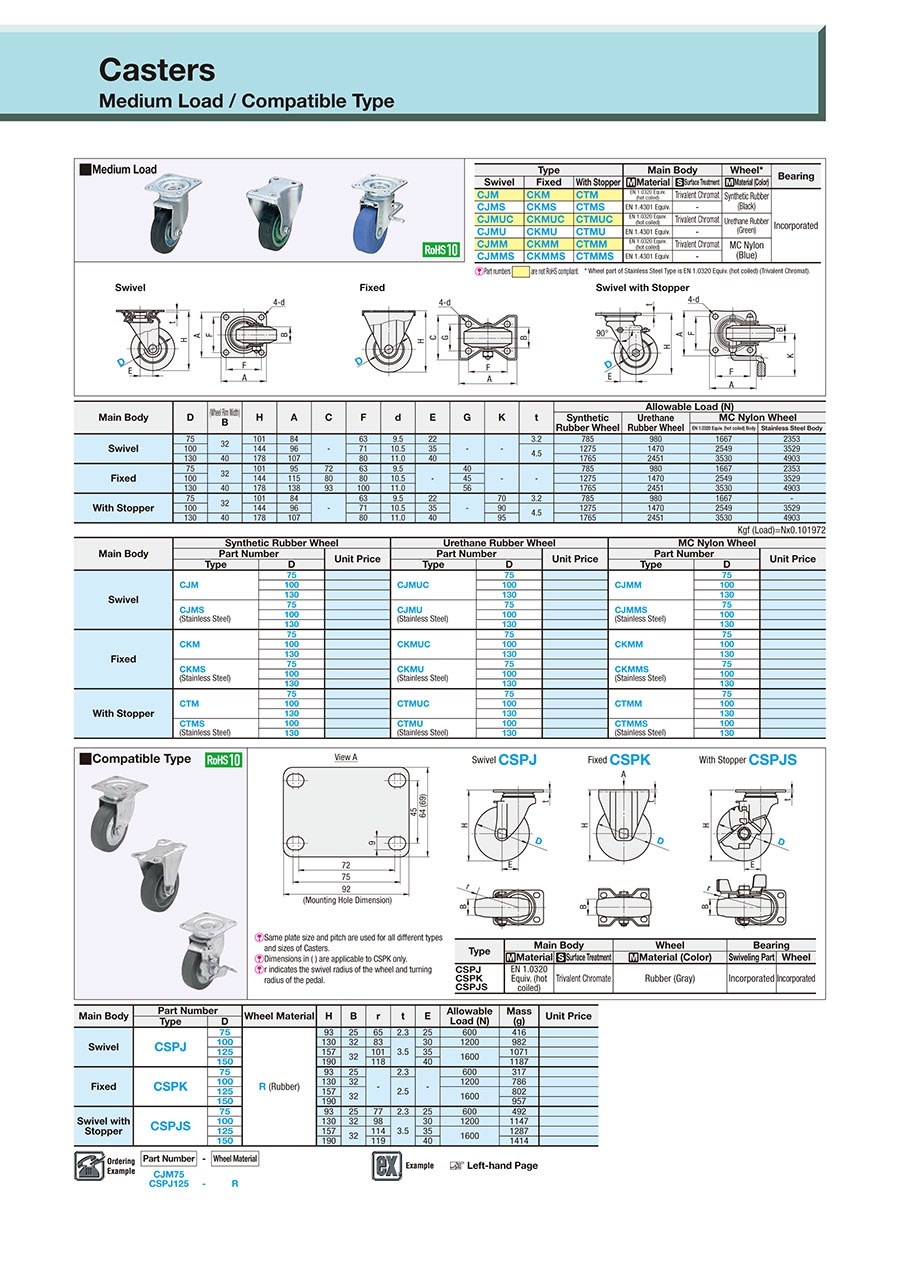

CatalogP.2-1072

Part number:

Still undefined. 51 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Swivel

Fixed

Swivel with Stopper

Type			Main Body		Wheel *	Bearing
Swivel	Fixed	With Stopper	[M] Material	[S] Surface Treatment	[M]Material (Color)	Bearing
CJM	CKM	CTM	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Synthetic Rubber (Black)	Provided
CJMS	CKMS	CTMS	EN 1.4301 Equiv.	—	Synthetic Rubber (Black)
CJMUC	CKMUC	CTMUC	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Urethane Rubber (Green)
CJMU	CKMU	CTMU	EN 1.4301 Equiv.	—	Urethane Rubber (Green)
CJMM	CKMM	CTMM	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	MC Nylon (Blue)
CJMMS	CKMMS	CTMMS	EN 1.4301 Equiv.	—	MC Nylon (Blue)

* Wheel part of Stainless Steel Type is EN 1.0320 Equiv. (hot coiled) (Trivalent Chromate).

Specification Table

Part Number

CJM75

Main Body	D	Wheel Width B	H	A	C	F	d	E	G	K	t	Allowable Load (N)
												Synthetic Rubber Wheel	Urethane Rubber Wheel	MC Nylon Wheel
												Synthetic Rubber Wheel	Urethane Rubber Wheel	EN 1.0320 Equiv. (hot coiled) Body	Stainless Steel Body
Swivel	75	32	101	84	—	63	9.5	22	—	—	3.2	785	980	1667	2353
	100	32	144	96		71	10.5	35			4.5	1275	1470	2549	3529
	130	40	178	107		80	11.0	40			4.5	1765	2451	3530	4903
Fixed	75	32	101	95	72	63	9.5	—	40	—	—	785	980	1667	2353
	100	32	144	115	80	80	10.5		45			1275	1470	2549	3529
	130	40	178	138	93	100	11.0		56			1765	2451	3530	4903
With Stopper	75	32	101	84	—	63	9.5	22	—	70	3.2	785	980	1667	—
	100	32	144	96		71	10.5	35		90	4.5	1275	1470	2549	3529
	130	40	178	107		80	11.0	40		95	4.5	1765	2451	3530	4903

kgf (load) = N × 0.101972

Part number list

Number of items

Part number

Caster Type

[H] Mounting Height

(mm)

Load Range

(daN)

Stopper

Allowable Load

(daN)

Wheel Material

Fitting Material

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

RoHS?

Minimum order quantity

Plate Type Swivel	101	35.01 to 80.00	Not Provided	78.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	Not Provided	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	140.01 to 220.00	Not Provided	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	140.01 to 220.00	Not Provided	166.7	[Nylon] MC Nylon	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	220.01 to 320.00	Not Provided	254.9	[Nylon] MC Nylon	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	320.01 to 485.00	Not Provided	353	[Nylon] MC Nylon	Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	220.01 to 320.00	Not Provided	235.3	[Nylon] MC Nylon	Stainless Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	320.01 to 485.00	Not Provided	352.9	[Nylon] MC Nylon	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	485.01 to 750.00	Not Provided	490.3	[Nylon] MC Nylon	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	35.01 to 80.00	Not Provided	78.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	Not Provided	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	140.01 to 220.00	Not Provided	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	80.01 to 140.00	Not Provided	98	[Urethane] Urethane (General)	Stainless Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	Not Provided	147	[Urethane] Urethane (General)	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	220.01 to 320.00	Not Provided	245.1	[Urethane] Urethane (General)	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	80.01 to 140.00	Not Provided	98	[Urethane] Urethane (General)	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	Not Provided	147	[Urethane] Urethane (General)	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	220.01 to 320.00	Not Provided	245.1	[Urethane] Urethane (General)	Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Fixed	101	35.01 to 80.00	Not Provided	78.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	80.01 to 140.00	Not Provided	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	140.01 to 220.00	Not Provided	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Fixed	101	140.01 to 220.00	Not Provided	166.7	[Nylon] MC Nylon	Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	220.01 to 320.00	Not Provided	254.9	[Nylon] MC Nylon	Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	320.01 to 485.00	Not Provided	353	[Nylon] MC Nylon	Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Fixed	101	220.01 to 320.00	Not Provided	235.3	[Nylon] MC Nylon	Stainless Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	320.01 to 485.00	Not Provided	352.9	[Nylon] MC Nylon	Stainless Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	485.01 to 750.00	Not Provided	490.3	[Nylon] MC Nylon	Stainless Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Fixed	101	35.01 to 80.00	Not Provided	78.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	80.01 to 140.00	Not Provided	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	140.01 to 220.00	Not Provided	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Fixed	101	80.01 to 140.00	Not Provided	98	[Urethane] Urethane (General)	Stainless Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	140.01 to 220.00	Not Provided	147	[Urethane] Urethane (General)	Stainless Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	220.01 to 320.00	Not Provided	245.1	[Urethane] Urethane (General)	Stainless Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Fixed	101	80.01 to 140.00	Not Provided	98	[Urethane] Urethane (General)	Steel	63	40	95	72	75	32	10	1 pieces
Plate Type Fixed	144	140.01 to 220.00	Not Provided	147	[Urethane] Urethane (General)	Steel	80	45	115	80	100	32	10	1 pieces
Plate Type Fixed	178	220.01 to 320.00	Not Provided	245.1	[Urethane] Urethane (General)	Steel	100	56	138	93	130	40	10	1 pieces
Plate Type Swivel	101	35.01 to 80.00	With Double Stopper (Rotation + Swivel)	78.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	With Double Stopper (Rotation + Swivel)	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	140.01 to 220.00	With Double Stopper (Rotation + Swivel)	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	140.01 to 220.00	With Double Stopper (Rotation + Swivel)	166.7	[Nylon] MC Nylon	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	220.01 to 320.00	With Double Stopper (Rotation + Swivel)	254.9	[Nylon] MC Nylon	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	320.01 to 485.00	With Double Stopper (Rotation + Swivel)	353	[Nylon] MC Nylon	Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	144	320.01 to 485.00	With Double Stopper (Rotation + Swivel)	352.9	[Nylon] MC Nylon	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	485.01 to 750.00	With Double Stopper (Rotation + Swivel)	490.3	[Nylon] MC Nylon	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	144	80.01 to 140.00	With Double Stopper (Rotation + Swivel)	127.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	140.01 to 220.00	With Double Stopper (Rotation + Swivel)	176.5	[Synthetic Rubber] Synthetic Rubber (General)	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	With Double Stopper (Rotation + Swivel)	147	[Urethane] Urethane (General)	Stainless Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	220.01 to 320.00	With Double Stopper (Rotation + Swivel)	245.1	[Urethane] Urethane (General)	Stainless Steel	80	80	107	107	130	40	10	1 pieces
Plate Type Swivel	101	80.01 to 140.00	With Double Stopper (Rotation + Swivel)	98	[Urethane] Urethane (General)	Steel	63	63	84	84	75	32	10	1 pieces
Plate Type Swivel	144	140.01 to 220.00	With Double Stopper (Rotation + Swivel)	147	[Urethane] Urethane (General)	Steel	71	71	96	96	100	32	10	1 pieces
Plate Type Swivel	178	220.01 to 320.00	With Double Stopper (Rotation + Swivel)	245.1	[Urethane] Urethane (General)	Steel	80	80	107	107	130	40	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.23 € ( 15.74 € )	Stock item: 1 working dayAvailable for same-day shipping
18.00 € ( 21.42 € )	Stock item: 1 working dayAvailable for same-day shipping
30.60 € ( 36.41 € )	5 working days
38.66 € ( 46.01 € )	5 working days
54.65 € ( 65.03 € )	5 working days
97.35 € ( 115.85 € )	5 working days
58.43 € ( 69.53 € )	5 working days
89.92 € ( 107.00 € )	5 working days
144.95 € ( 172.49 € )	5 working days
34.52 € ( 41.08 € )	5 working days
55.30 € ( 65.81 € )	5 working days
78.21 € ( 93.07 € )	5 working days
42.69 € ( 50.80 € )	5 working days
65.12 € ( 77.49 € )	5 working days
93.07 € ( 110.75 € )	5 working days
23.67 € ( 28.17 € )	5 working days
30.98 € ( 36.87 € )	5 working days
45.46 € ( 54.10 € )	5 working days
10.20 € ( 12.14 € )	5 working days
13.60 €9.93 € ( 11.82 € )	Stock item: 1 working dayAvailable for same-day shipping
23.42 € ( 27.87 € )	5 working days
35.14 € ( 41.82 € )	5 working days
49.62 € ( 59.05 € )	5 working days
90.04 € ( 107.15 € )	5 working days
45.46 € ( 54.10 € )	5 working days
68.90 € ( 81.99 € )	5 working days
117.89 € ( 140.29 € )	5 working days
21.79 € ( 25.93 € )	5 working days
34.64 € ( 41.22 € )	5 working days
51.25 € ( 60.99 € )	5 working days
30.11 € ( 35.83 € )	5 working days
44.58 € ( 53.05 € )	5 working days
65.99 € ( 78.53 € )	5 working days
20.02 € ( 23.82 € )	5 working days
26.07 € ( 31.02 € )	5 working days
38.15 €24.80 € ( 29.51 € )	Stock item: 1 working dayAvailable for same-day shipping
17.39 € ( 20.69 € )	Stock item: 1 working dayAvailable for same-day shipping
23.93 € ( 28.48 € )	5 working days
38.54 € ( 45.86 € )	5 working days
43.70 € ( 52.00 € )	5 working days
61.58 € ( 73.28 € )	5 working days
105.15 € ( 125.13 € )	5 working days
101.38 € ( 120.64 € )	5 working days
161.08 € ( 191.69 € )	5 working days
66.62 € ( 79.28 € )	5 working days
94.33 € ( 112.25 € )	5 working days
76.19 € ( 90.67 € )	5 working days
109.19 € ( 129.94 € )	5 working days
28.59 € ( 34.02 € )	5 working days
37.91 € ( 45.11 € )	5 working days
53.27 € ( 63.39 € )	5 working days
