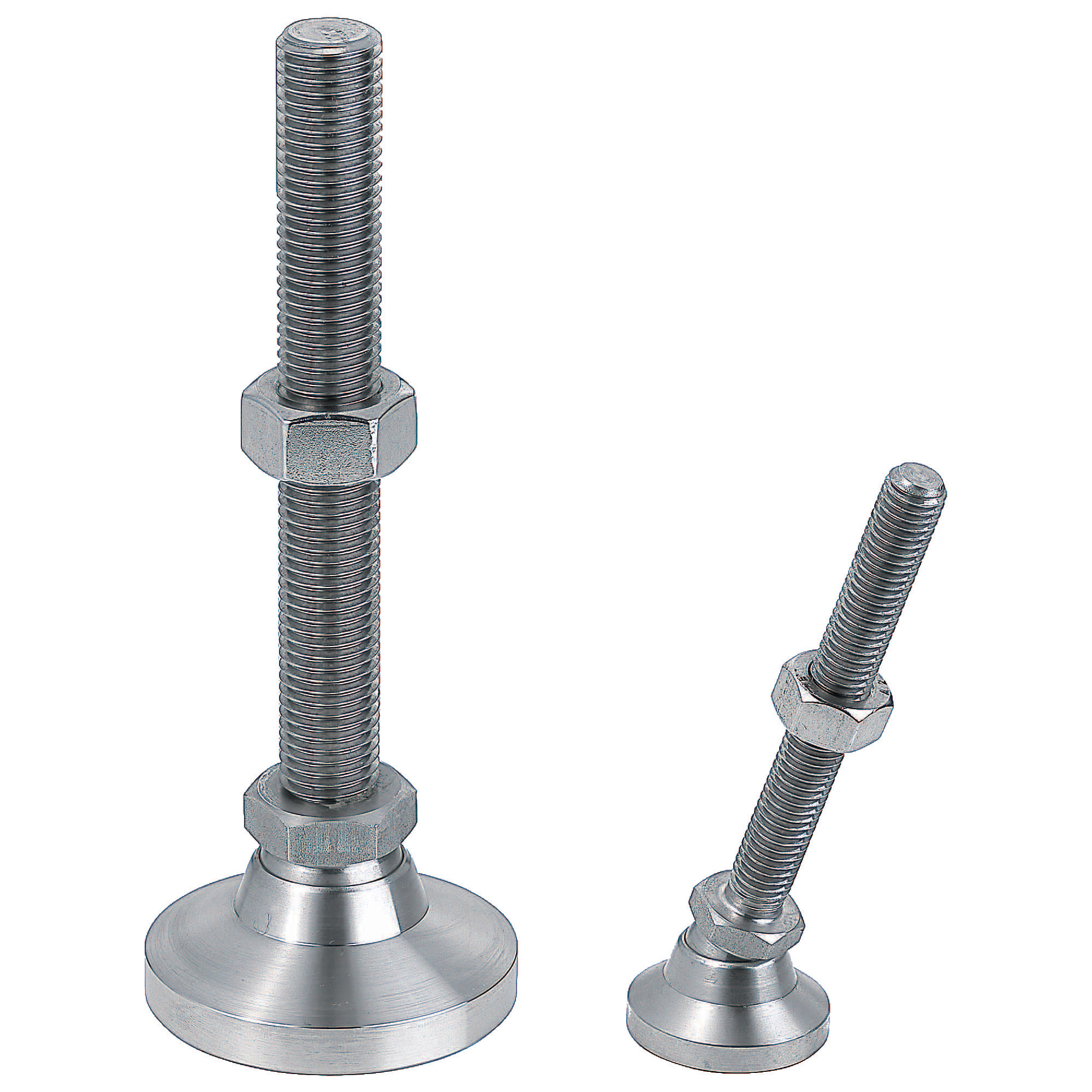

    Adjuster Feet / Rotary Type

    Adjuster Feet / Rotary Type

    Mouse over image to enlarge

    Part number:

    Still undefined. 12 possible part numbers found.
    Quantity:

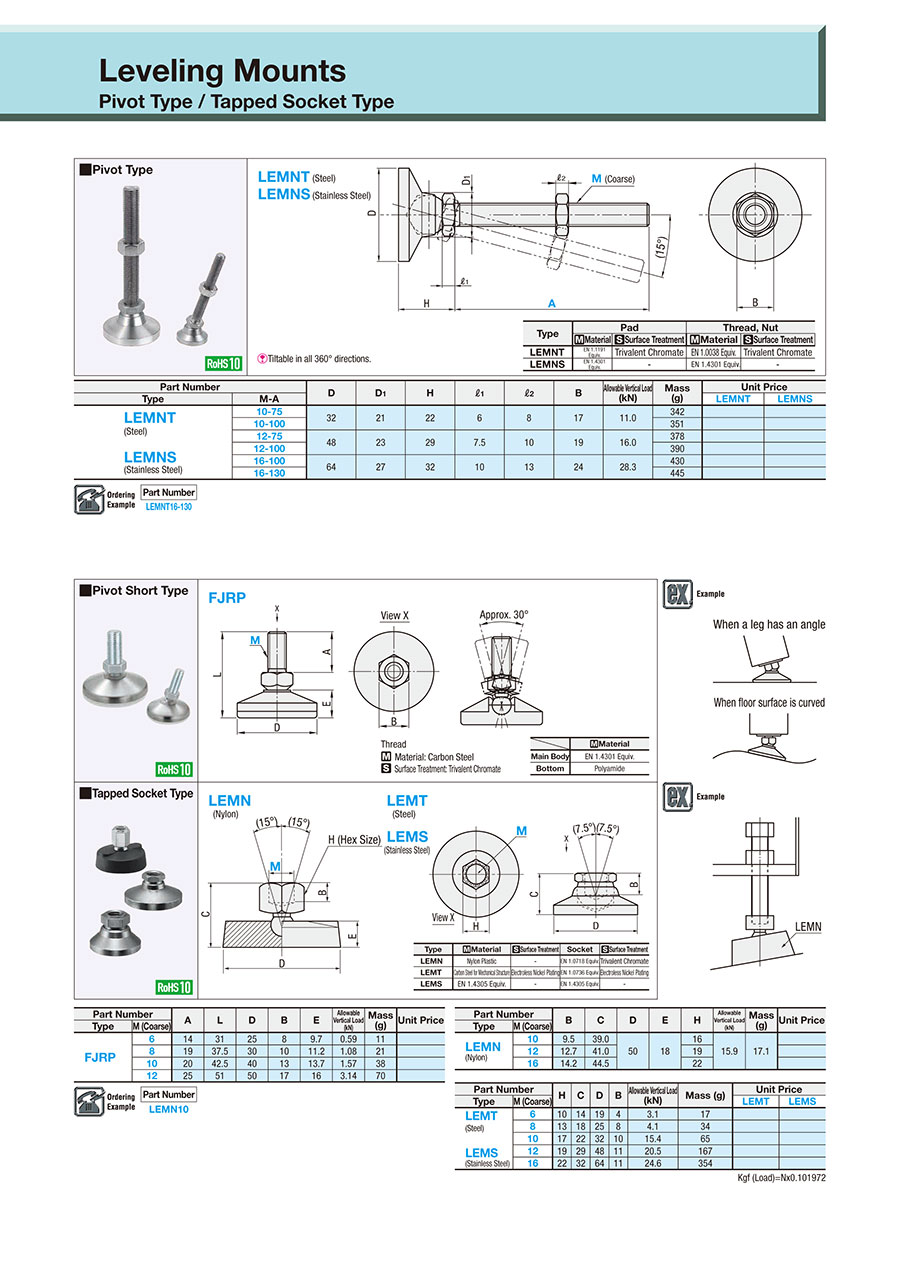

    Outline drawing and specifications table

    LEMNT (Steel)
    LEMNS (Stainless Steel)

    [ ! ] Tiltable in all 360° directions.
    [ ! ] M is coarse.
    TypePadThreaded section, Nut
    [M] Material[S] Surface Treatment[M] Material[S] Surface Treatment
    LEMNTEN 1.1191 Equiv.Trivalent ChromateEN 1.0038 Equiv.Trivalent Chromate
    LEMNSEN 1.4301 Equiv.—EN 1.4301 Equiv.—

    Specification Table

    Part Number
    LEMNT16−130
    Part NumberDD1Hℓ1ℓ2BAllowable Vertical Load
    (kN)    		Mass
    (g)
    TypeM－A
    LEMNT
    (Steel)

    LEMNS
    (Stainless Steel)    		10－75322122681711.0342
    10－100351
    12－754823297.5101916.0378
    12－100390
    16－10064273210132428.3430
    16－130445

    Part number list

    Number of items
  • 1
    • Part number
    LEMNS10-75
    LEMNS10-100
    LEMNS12-75
    LEMNS12-100
    LEMNS16-100
    LEMNS16-130
    LEMNT10-75
    LEMNT10-100
    LEMNT12-75
    LEMNT12-100
    LEMNT16-100
    LEMNT16-130

    Thread Material

    Thread Surface Treatment

    Body Material

    Main Body Surface Treatment

    Width D

    (mm)

    Allowable Load (Details)

    (kN)

    Screw Length A

    (mm)

    Main Body Height

    (mm)

    Thread Nominal M

    (mm)

    		RoHS?Minimum order quantity
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    32
    11
    75
    22
    10
    10
    1 pieces
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    32
    11
    100
    22
    10
    10
    1 pieces
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    48
    16
    75
    29
    12
    10
    1 pieces
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    48
    16
    100
    29
    12
    10
    1 pieces
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    64
    28.3
    100
    32
    16
    10
    1 pieces
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    [Stainless Steel] EN 1.4301 Equiv.
    Not Provided
    64
    28.3
    130
    32
    16
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    32
    11
    75
    22
    10
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    32
    11
    100
    22
    10
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    48
    16
    75
    29
    12
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    48
    16
    100
    29
    12
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    64
    28.3
    100
    32
    16
    10
    1 pieces
    [Steel] EN 1.0038 Equiv.
    Trivalent Chromate
    [Steel] EN 1.1191 Equiv.
    Trivalent Chromate
    64
    28.3
    130
    32
    16
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    20.79 €
    ( 24.74 € )
    Stock item: 1 working dayAvailable for same-day shipping
    21.54 €
    ( 25.63 € )
    5 working days
    28.34 €
    ( 33.72 € )
    5 working days
    28.96 €
    ( 34.46 € )
    Stock item: 1 working dayAvailable for same-day shipping
    42.82 €
    ( 50.96 € )
    Stock item: 1 working dayAvailable for same-day shipping
    45.08 €
    ( 53.65 € )
    5 working days
    11.46 €
    ( 13.64 € )
    5 working days
    11.97 €
    ( 14.24 € )
    5 working days
    13.99 €
    ( 16.65 € )
    5 working days
    14.74 €
    ( 17.54 € )
    5 working days
    21.28 €
    ( 25.32 € )
    5 working days
    21.93 €
    ( 26.10 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] The screw shaft is inclined to allow use on sloping floor surfaces.
