  • Adjuster Feet / Rotary Type

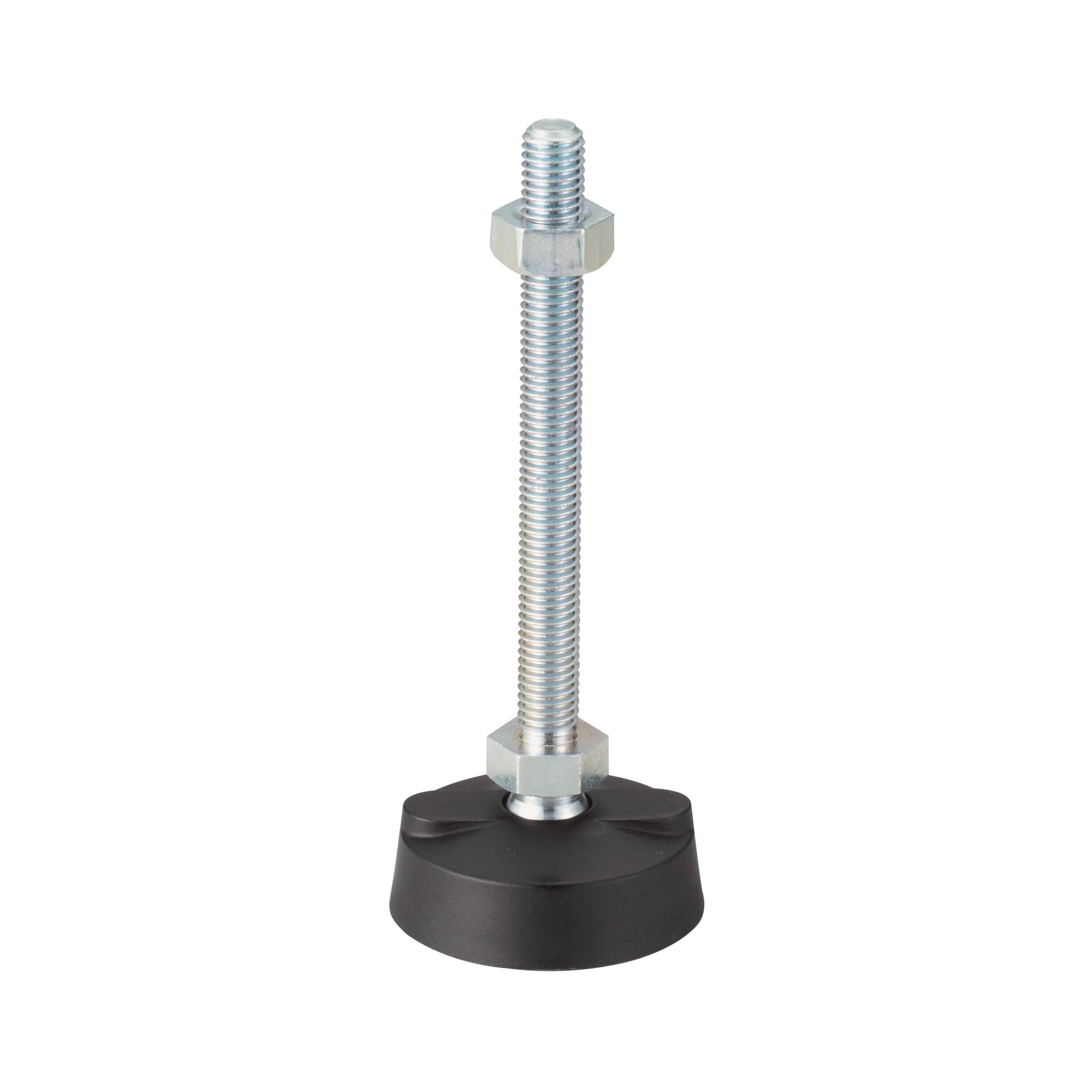

    Adjuster Feet / Rotary Type

    Mouse over image to enlarge

    • Adjuster Feet / Rotary Type
    • Adjuster Feet / Rotary Type

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

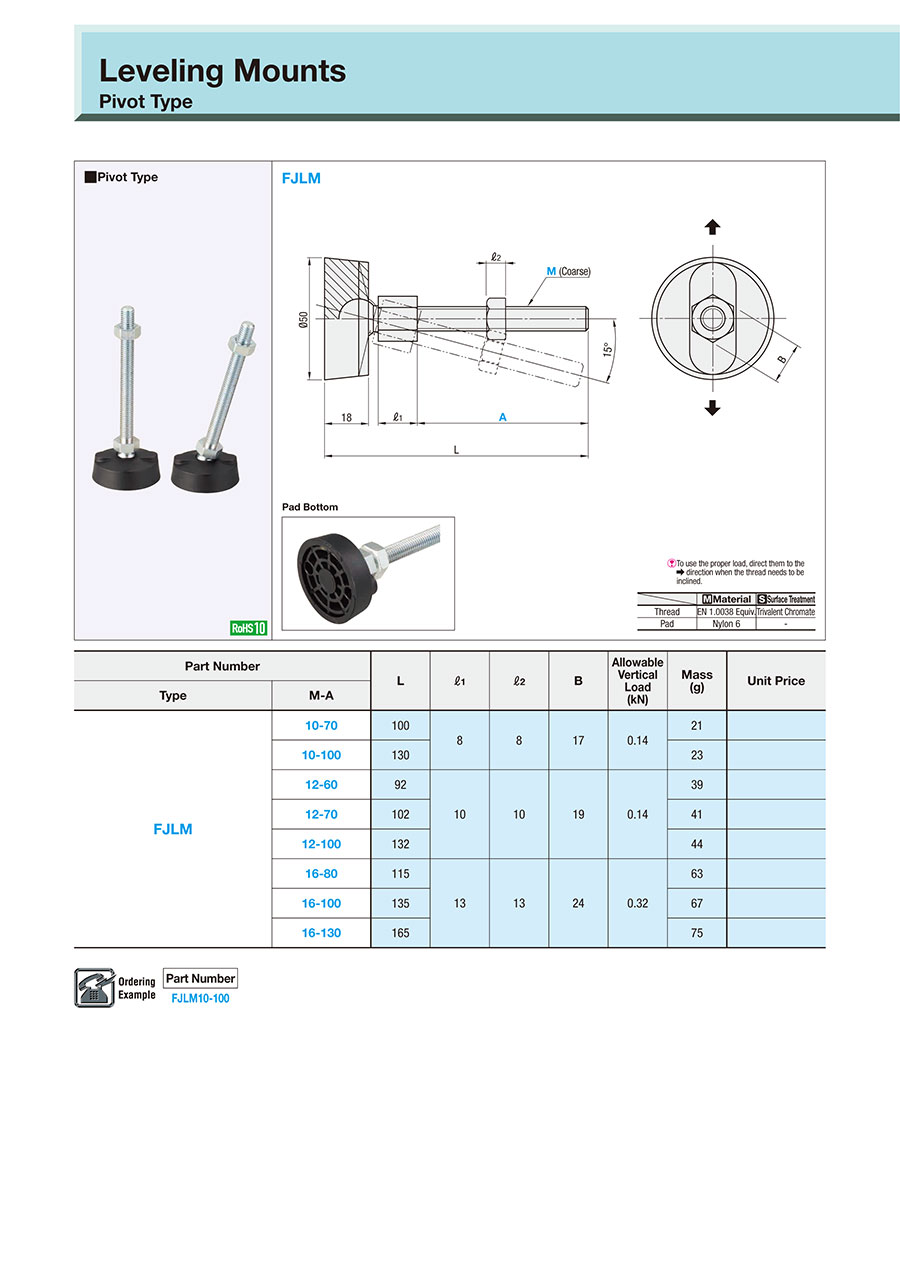

    Outline drawing and specifications table

    FJLM

    [ ! ] When the thread needs to be inclined, direct them to the → direction for use under proper load.
    [ ! ] M is coarse.
     [M] Material[S] Surface Treatment
    ThreadEN 1.0038 Equiv.Trivalent Chromate
    PadNylon 6

    Specification Table

    Part Number
    FJLM10−100
    Part NumberL12BAllowable Vertical Load
    (kN)
    Mass
    (g)
    TypeM-A
    FJLM10-7010088170.1421
    10-10013023
    12-60921010190.1439
    12-7010241
    12-10013244
    16-801151313240.3263
    16-10013567
    16-13016575

    Part number list

    Number of items

    Allowable Load (Details)

    (kN)

    Screw Length A

    (mm)

    Thread Nominal M

    (mm)

    RoHS?Minimum order quantity
    0.14
    70
    10
    10
    1 pieces
    0.14
    100
    10
    10
    1 pieces
    0.14
    60
    12
    10
    1 pieces
    0.14
    70
    12
    10
    1 pieces
    0.14
    100
    12
    10
    1 pieces
    0.32
    80
    16
    10
    1 pieces
    0.32
    100
    16
    10
    1 pieces
    0.32
    130
    16
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    8.18 €
    ( 9.73 € )
    5 working days
    8.82 €
    ( 10.50 € )
    5 working days
    10.45 €
    ( 12.44 € )
    5 working days
    10.59 €
    ( 12.60 € )
    5 working days
    10.83 €6.06 €
    ( 7.21 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.83 €4.44 €
    ( 5.28 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.83 €
    ( 14.08 € )
    5 working days
    12.84 €
    ( 15.28 € )
    5 working days

    More Information

    Basic information

    [Features] The screw shaft is inclined to allow use on sloping floor surfaces.

    Outline and specifications

    Specifications/Overview

    Pad Bottom
