Configure
- Thread Nominal M
- 12
- 16
- 20
- Overall Length L(mm)
- 60
- 80
- 100
- 120
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 5 working days
Foot Jack Bolt, Tip SR With Flange Type
Part number:
possible part numbers found.Outline drawing and specifications table

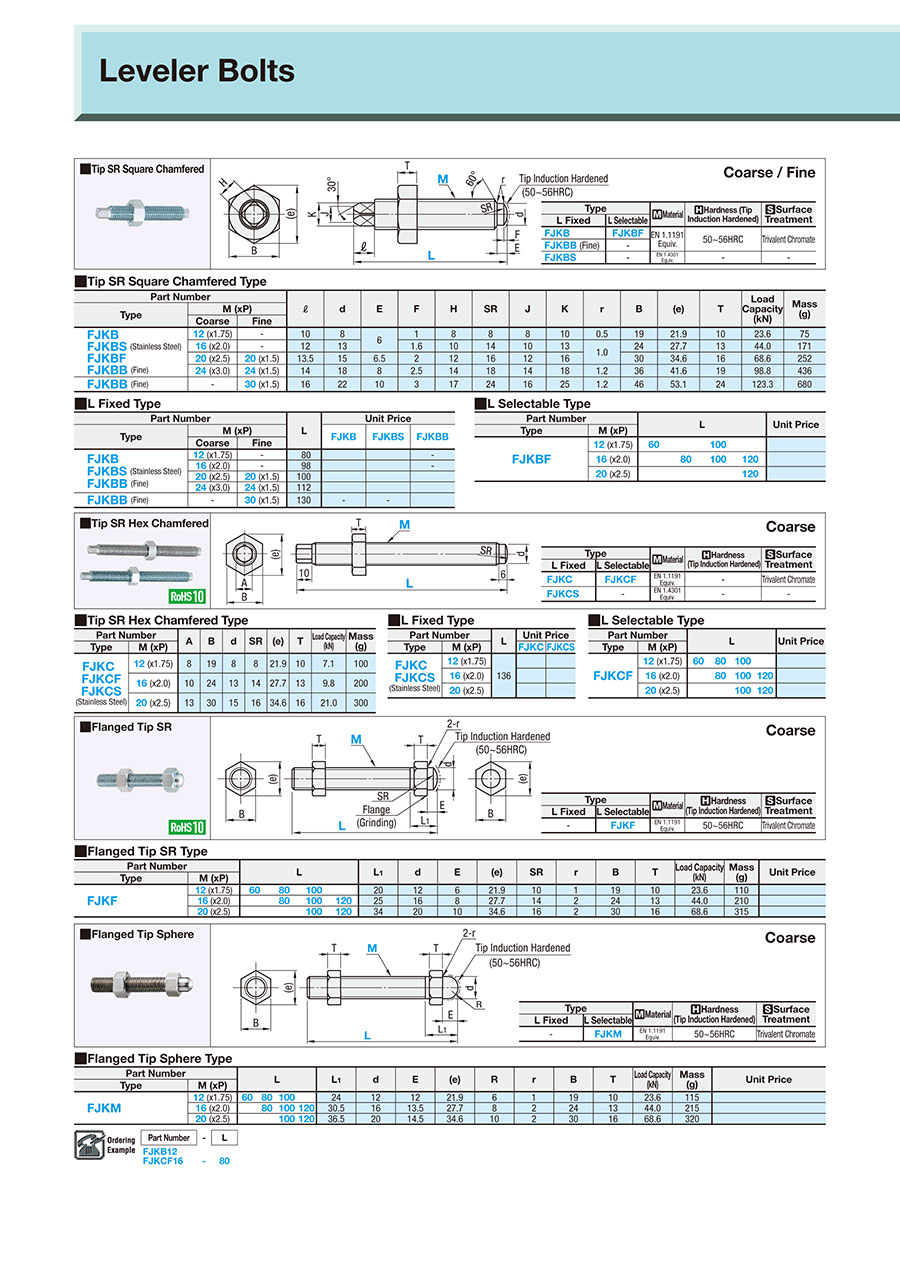

Dimensional Drawing
| Type | [M] Material | [H] Hardness (Tip Induction Hardened) | [S] Surface Treatment | |
| L Fixed | L Selectable | |||
| — | FJKF | EN 1.1191 Equiv. | 50 to 56HRC | Trivalent Chromate |
Specification Table
| Part Number | — | L |
| FJKF12 | — | 60 |
■Flanged Tip SR Type
| Part Number | L | L1 | d | E | (e) | SR | r | B | T | Load Capacity (kN) | Mass (g) | ||||
| Type | M ( × P) | ||||||||||||||
| FJKF | 12 ( × 1.75) | 60 | 80 | 100 | 20 | 12 | 6 | 21.9 | 10 | 1 | 19 | 10 | 23.6 | 110 | |
| 16 ( × 2.0) | 80 | 100 | 120 | 25 | 16 | 8 | 27.7 | 14 | 2 | 24 | 13 | 44.0 | 210 | ||
| 20 ( × 2.5) | 100 | 120 | 34 | 20 | 10 | 34.6 | 16 | 2 | 30 | 16 | 68.6 | 315 | |||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
11.46 € ( 13.64 € ) | 5 working days |
11.46 € ( 13.64 € ) | 5 working days |
11.46 € ( 13.64 € ) | 5 working days |
14.11 € ( 16.79 € ) | 5 working days |
14.11 € ( 16.79 € ) | 5 working days |
14.11 € ( 16.79 € ) | 5 working days |
17.51 € ( 20.84 € ) | 5 working days |
17.51 € ( 20.84 € ) | 5 working days |
More Information
Basic information
This bolt for assembly adjustment can be combined with a seat plate.
Outline and specifications
Specifications/Overview
Coarse
