Revolving Ball Knobs
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

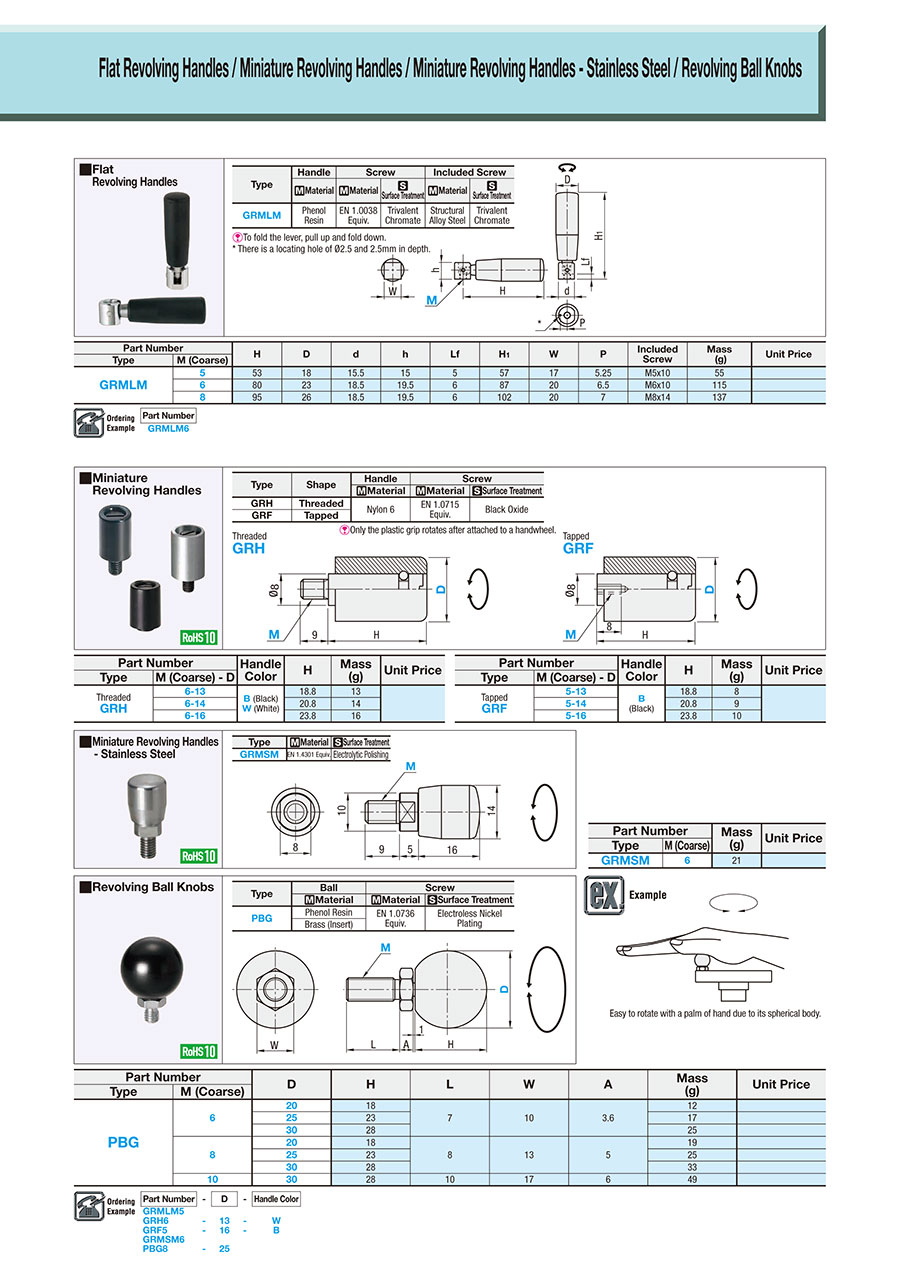

- Catalog
| Type | Ball | Screw | |
| Material | Material | Surface Treatment | |
| PBG | Phenol Resin | EN 1.0736 Equiv. | Electroless Nickel Plating |
| Brass (Insert) | |||
Specifications
| Part Number | - | D | - | Handle Color |
| GRMLM5 | ||||
| GRH6 | - | 13 | - | W |
| GRF5 | - | 16 | - | B |
| GRMSM6 | ||||
| PBG8 | - | 25 |
| Part Number | D | H | L | W | A | Mass (g) | Unit Price | |
| Type | M (Coarse) | |||||||
| PBG | 6 | 20 | 18 | 7 | 10 | 3.6 | 12 | |
| 25 | 23 | 17 | ||||||
| 30 | 28 | 25 | ||||||
| 8 | 20 | 18 | 8 | 13 | 5 | 19 | ||
| 25 | 23 | 25 | ||||||
| 30 | 28 | 33 | ||||||
| 10 | 30 | 28 | 10 | 17 | 6 | 49 | ||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| PBG6-20 |
| PBG6-25 |
| PBG6-30 |
| PBG8-20 |
| PBG8-25 |
| PBG8-30 |
| PBG10-30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Screw Nominal (M) | Handle Diameter (mm) | Handle Length (mm) | |
|---|---|---|---|---|---|---|---|---|
8.82 € | 1 | Available |
Same day
Stock | 10 | M6 | 20 | 18 | |
8.95 € | 1 | Available |
Same day
Stock | 10 | M6 | 25 | 23 | |
9.06 € | 1 | Available |
Same day
Stock | 10 | M6 | 30 | 28 | |
9.45 € | 1 | Available | 5 Days | 10 | M8 | 20 | 18 | |
9.58 € | 1 | Available |
Same day
Stock | 10 | M8 | 25 | 23 | |
9.70 € | 1 | Available |
Same day
Stock | 10 | M8 | 30 | 28 | |
11.07 € | 1 | Available |
Same day
Stock | 10 | M10 | 30 | 28 |
Loading...
Example of Use
Basic information
| Type | Revolving | Shape | Balls | Handle Material | Phenol Resin |
|---|---|---|---|---|---|
| Handle Surface Treatment | Not Provided | Mounting Section Material | EN 1.0736 Equiv. | Mounting Section Surface Treatment | Electroless Nickel Plating |
| Mounting Method | Threads |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
