Latch / Sliding Bolt
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
This deadbolt lock achieves a simple door locking mechanism. Stainless steel.
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

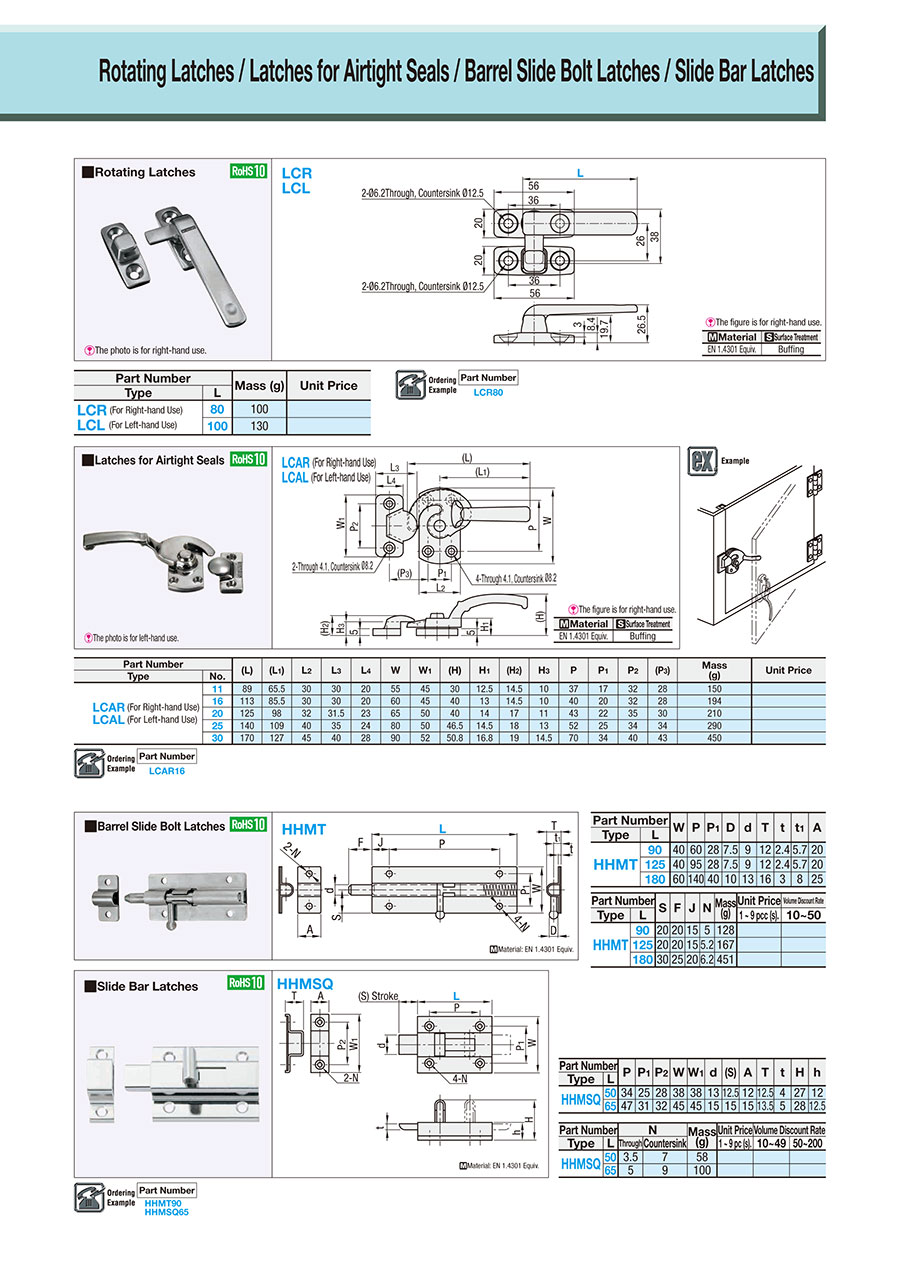

- Catalog
Material: EN 1.4301 Equiv.
Specifications
| Part Number |
| HHMT90 HHMSQ65 |
| Part Number | W | P | P1 | D | d | T | t | t1 | A | |
| Type | L | |||||||||
| HHMT | 90 | 40 | 60 | 28 | 7.5 | 9 | 12 | 2.4 | 5.7 | 20 |
| 125 | 40 | 95 | 28 | 7.5 | 9 | 12 | 2.4 | 5.7 | 20 | |
| 180 | 60 | 140 | 40 | 10 | 13 | 16 | 3 | 8 | 25 | |
| Part Number | S | F | J | N | Mass (g) | Unit Price | Volume Discount Rate | |
| Type | L | 1 ~ 9 pcc (s). | 10~50 | |||||
| HHMT | 90 | 20 | 20 | 15 | 5 | 128 | ||
| 125 | 20 | 20 | 15 | 5.2 | 167 | |||
| 180 | 30 | 25 | 20 | 6.2 | 451 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
Basic information
| Latch Shape | Barrel Slide Bolt Latches |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
