    Hinge Nut for HHS/HHSK

    Hinge Nut for HHS/HHSK

    Mouse over image to enlarge

    Part number:

    Still undefined. 16 possible part numbers found.
    Quantity:

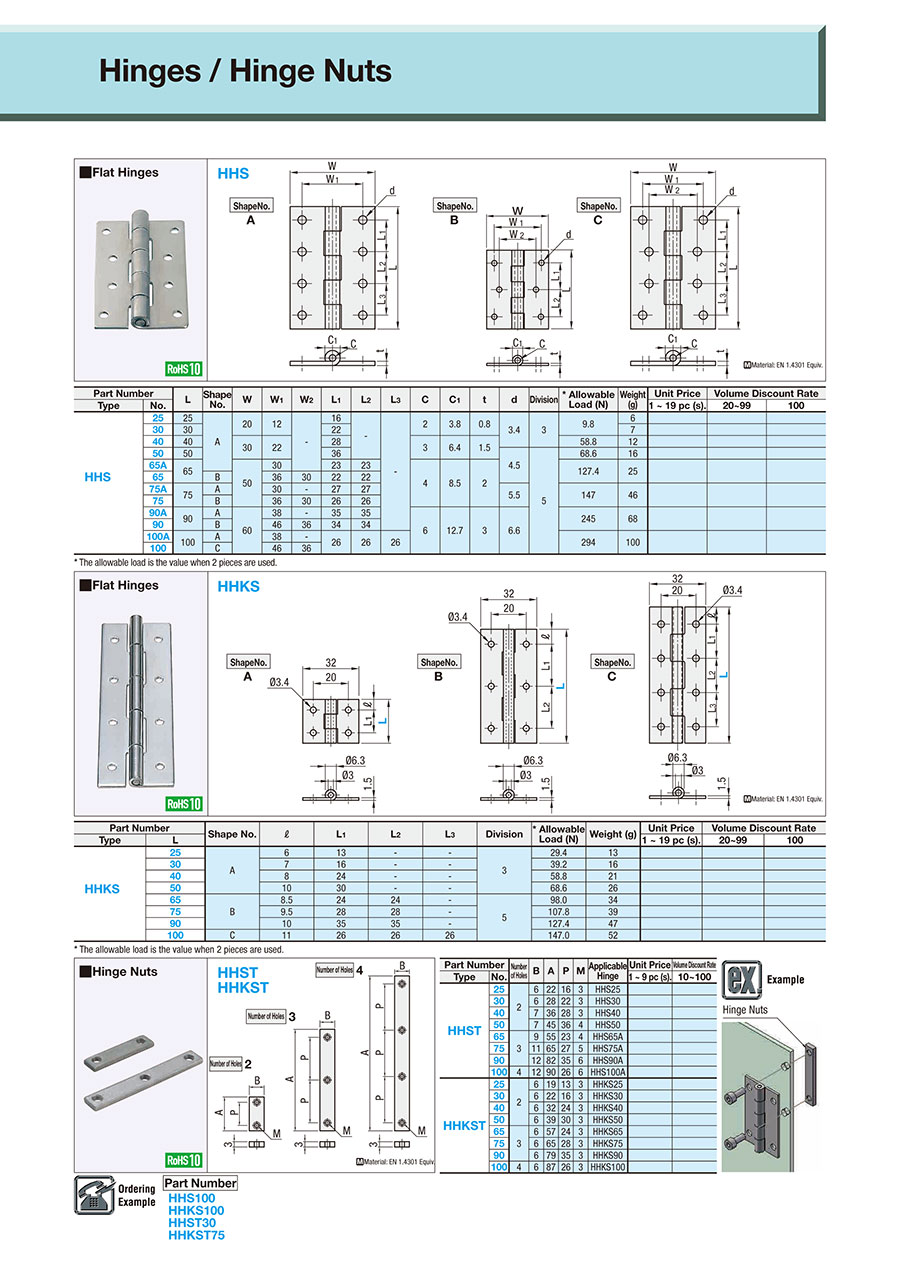

    Outline drawing and specifications table

    HHST
    HHKST
    Number
    of Holes 2
    Number
    of Holes 3
    Number of Holes 4

    [ ! ] The mounting screw M is coarse.
    [M] Material: EN 1.4301 Equiv.

    Specification Table

    Part Number
    HHST30
    HHKST75
    Part NumberNumber of HolesBAPMApplicable Hinge
    TypeNo.
    HHST252622163HHS25
    30628223HHS30
    40736283HHS40
    50745364HHS50
    653955234HHS65A
    751165275HHS75A
    901282356HHS90A
    10041290266HHS100A
    HHKST252619133HHKS25
    30622163HHKS30
    40632243HHKS40
    50639303HHKS50
    653657243HHKS65
    75665283HHKS75
    90679353HHKS90
    1004687263HHKS100

    Part number list

    Number of items
  • 1
    • Part number
    HHKST25
    HHKST30
    HHKST40
    HHKST50
    HHKST65
    HHKST75
    HHKST90
    HHKST100
    HHST25
    HHST30
    HHST40
    HHST50
    HHST65
    HHST75
    HHST90
    HHST100

    Applicable Hinges

    Shape No.

    		RoHS?Minimum order quantity
    HHKS25
    -
    10
    1 pieces
    HHKS30
    -
    10
    1 pieces
    HHKS40
    -
    10
    1 pieces
    HHKS50
    -
    10
    1 pieces
    HHKS65
    -
    10
    1 pieces
    HHKS75
    -
    10
    1 pieces
    HHKS90
    -
    10
    1 pieces
    HHKS100
    -
    10
    1 pieces
    HHS25
    A
    10
    1 pieces
    HHS30
    A
    10
    1 pieces
    HHS40
    A
    10
    1 pieces
    HHS50
    A
    10
    1 pieces
    HHS65A
    B
    10
    1 pieces
    HHS75A
    B
    10
    1 pieces
    HHS90A
    B
    10
    1 pieces
    HHS100A
    C
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.81 €
    ( 3.34 € )
    5 working days
    3.19 €
    ( 3.80 € )
    5 working days
    3.31 €
    ( 3.94 € )
    5 working days
    3.33 €
    ( 3.96 € )
    5 working days
    3.72 €
    ( 4.43 € )
    5 working days
    3.89 €
    ( 4.63 € )
    5 working days
    4.15 €
    ( 4.94 € )
    5 working days
    4.41 €
    ( 5.25 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.78 €
    ( 3.31 € )
    5 working days
    3.19 €
    ( 3.80 € )
    5 working days
    3.33 €
    ( 3.96 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.33 €
    ( 3.96 € )
    5 working days
    3.75 €
    ( 4.46 € )
    5 working days
    3.86 €
    ( 4.59 € )
    5 working days
    4.14 €
    ( 4.93 € )
    5 working days
    4.42 €
    ( 5.26 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Nut for flat hinges in stainless steel (HHS/HHSK).

    Outline and specifications

    Application Example
