Support Units / Square / Support Side / Compact / Low Profile
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

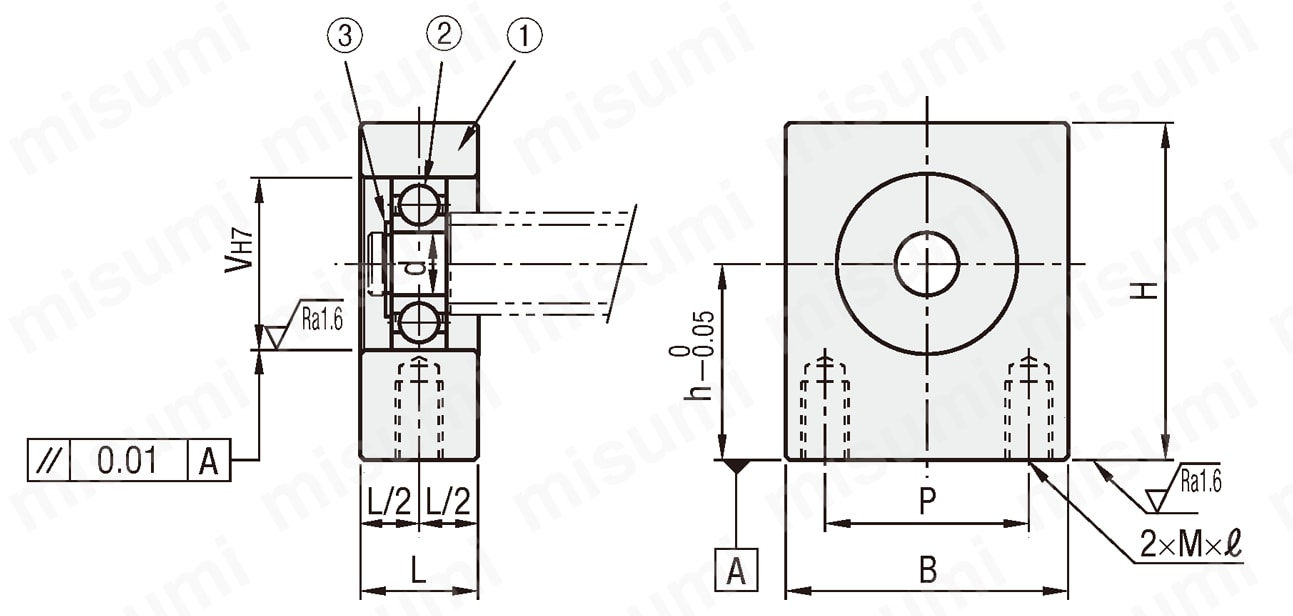

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

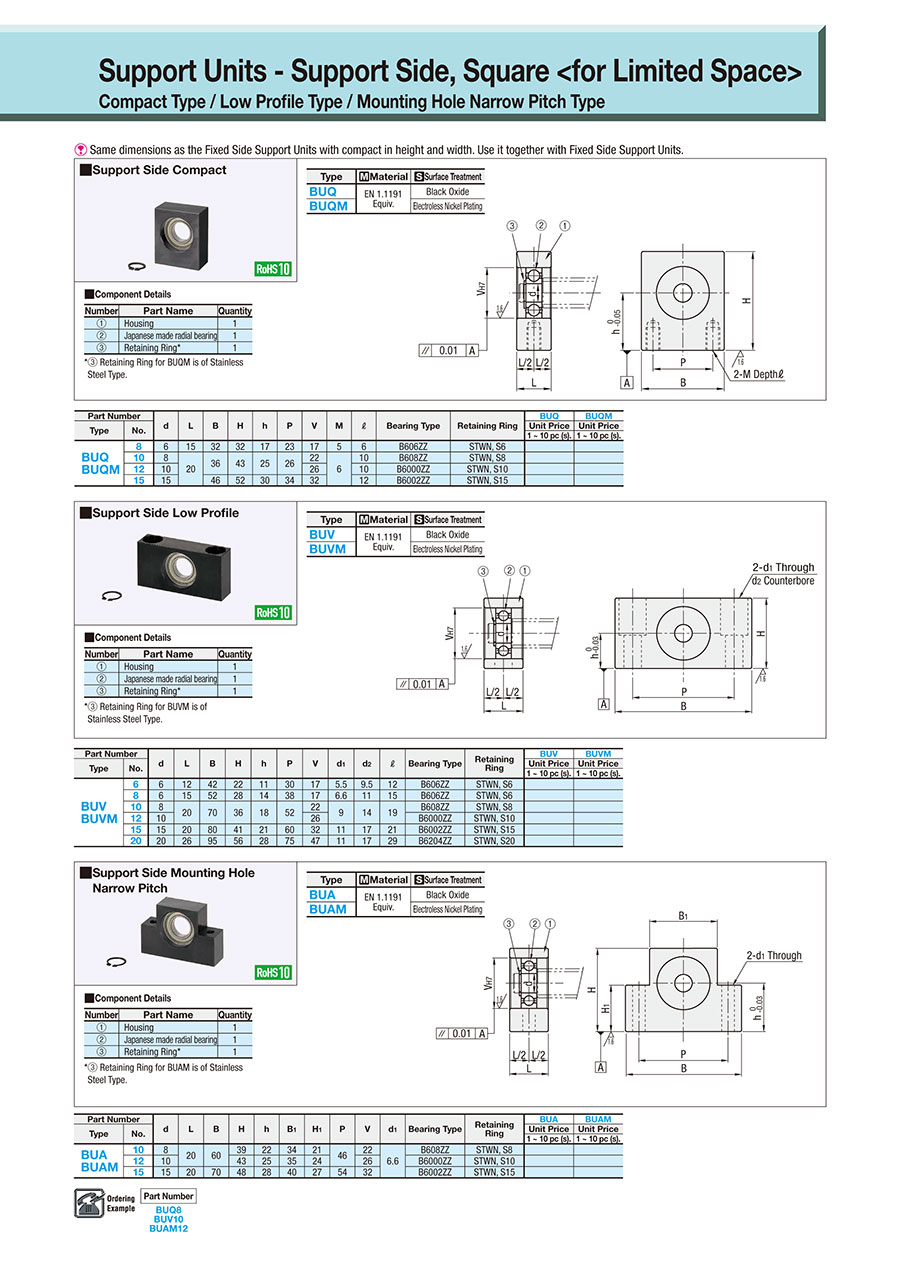

- Catalog
- Technical Information
| Type | Material | Surface Treatment |
| BUQ | EN 1.1191 Equiv. | Black Oxide |
| BUQM | Electroless Nickel Plating |
Specifications
| Part Number |
| BUQ8 BUV10 BUAM12 |
| Number | Part Name | Quantity |
| Housing | 1 | |
| Japanese made radial bearing | 1 | |
| Retaining Ring* | 1 |
| Part Number | d | L | B | H | h | P | V | M | ℓ | Bearing Type | Retaining Ring | BUQ | BUQM | |
| Type | No. | Unit Price | Unit Price | |||||||||||
| 1 ~ 10 pc (s). | 1 ~ 10 pc (s). | |||||||||||||
| BUQ BUQM | 8 | 6 | 15 | 32 | 32 | 17 | 23 | 17 | 5 | 6 | B606ZZ | STWN, S6 | ||
| 10 | 8 | 20 | 36 | 43 | 25 | 26 | 22 | 6 | 10 | B608ZZ | STWN, S8 | |||
| 12 | 10 | 26 | 10 | B6000ZZ | STWN, S10 | |||||||||
| 15 | 15 | 46 | 52 | 30 | 34 | 32 | 12 | B6002ZZ | STWN, S15 | |||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BUQ8 |
| BUQ10 |
| BUQ12 |
| BUQ15 |
| BUQM8 |
| BUQM10 |
| BUQM12 |
| BUQM15 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Shaft Dia. d (φ) | Surface Treatment | Shaft Height h (mm) | Thickness of Square Type L / Round Type F (mm) (mm) | Width B (mm) | Basic Load Rating Dynamic Rating (N) | Basic Load Rating Static Rating (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
26.57 € | 1 | Available | 5 Days | 10 | 6 | Black Oxide | 17 | 15 | 32 | 2190 | 865 | |
27.95 € | 1 | Available | 5 Days | 10 | 8 | Black Oxide | 25 | 20 | 36 | 3350 | 1400 | |
29.10 € | 1 | Available |
Same day
Stock | 10 | 10 | Black Oxide | 25 | 20 | 36 | 4550 | 1960 | |
32.13 € | 1 | Available | 5 Days | 10 | 15 | Black Oxide | 30 | 20 | 46 | 5600 | 2830 | |
28.08 € | 1 | Available | 5 Days | 10 | 6 | Electroless Nickel Plating | 17 | 15 | 32 | 2190 | 865 | |
29.22 € | 1 | Available | 5 Days | 10 | 8 | Electroless Nickel Plating | 25 | 20 | 36 | 3350 | 1400 | |
30.47 € | 1 | Available | 5 Days | 10 | 10 | Electroless Nickel Plating | 25 | 20 | 36 | 4550 | 1960 | |
33.87 € | 1 | Available | 5 Days | 10 | 15 | Electroless Nickel Plating | 30 | 20 | 46 | 5600 | 2830 |
Loading...
Basic information
| Type | Support Side Compact Type | Shape | Square Type | Mounting Method | Bottom Mount |
|---|---|---|---|---|---|
| Material | EN 1.1191 Equiv. | Set | Support Side Support Units Only |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Shaft Dia. d(φ)
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Shaft Height h(mm)
-
Thickness of Square Type L / Round Type F (mm)(mm)
-
Width B(mm)
-
Type
- BUQ
- BUQM
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
