    Magnets with Holder / High Strength Flat Type

    Magnets with Holder / High Strength Flat Type

    Part number:

    Still undefined. 9 possible part numbers found.
    Quantity:

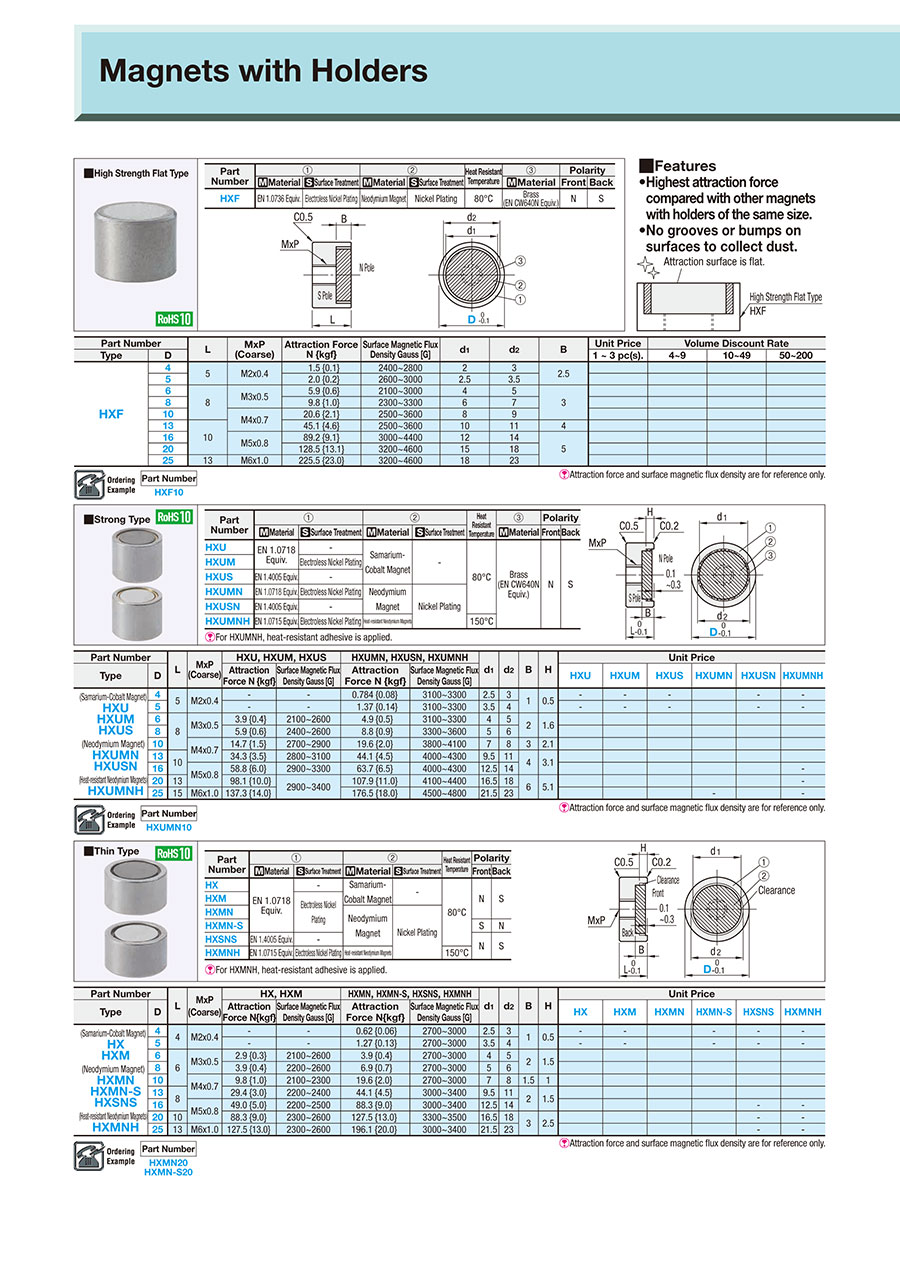

    Outline drawing and specifications table

    Magnets with Holder/High Strength Flat Type:Related Image

    Part NumberHeat Resistant TemperaturePolarity
      Material  Surface Treatment  Material  Surface Treatment  MaterialFrontBack
    HXFEN 1.0736 Equiv.Electroless Nickel PlatingNeodymium MagnetNickel Plating80°CBrass
    (EN CW640N Equiv.)    		NS

    Specifications

    Part Number
    HXF10
    Part NumberLMxP (Coarse)Attraction Force N {kgf}Surface Magnetic Flux Density Gauss [G]d1d2BUnit PriceVolume Discount Rate
    TypeD1 ~ 3 pc(s).4~910~4950~200
    HXF45M2x0.41.5 {0.1}2400~2800232.5
    52.0 {0.2}2600~30002.53.5
    68M3x0.55.9 {0.6}2100~3000453
    89.8 {1.0}2300~330067
    10M4x0.720.6 {2.1}2500~360089
    131045.1 {4.6}2500~360010114
    16M5x0.889.2 {9.1}3000~440012145
    20128.5 {13.1}3200~46001518
    2513M6x1.0225.5 {23.0}3200~46001823
      Attraction force and surface magnetic flux density are for reference only.

    Part number list

    Number of items
  • 1
    • Part number
    HXF4
    HXF5
    HXF6
    HXF8
    HXF10
    HXF13
    HXF16
    HXF20
    HXF25

    Attraction Froce (Range)

    (N)

    Attraction Force (Specific)

    (N)

    Round Shape O.D. D (A)

    (Ø)

    		RoHS?Minimum order quantity
    Up to 10.0
    1.5
    4
    10
    1 pieces
    Up to 10.0
    2.0
    5
    10
    1 pieces
    Up to 10.0
    5.9
    6
    10
    1 pieces
    Up to 10.0
    9.8
    8
    10
    1 pieces
    20.1 to 30.0
    20.6
    10
    10
    1 pieces
    40.1 to 50.0
    45.1
    13
    10
    1 pieces
    80.1 to 90.0
    89.2
    16
    10
    1 pieces
    100.1 or More
    128.5
    20
    10
    1 pieces
    100.1 or More
    225.5
    25
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    19.15 €
    ( 22.79 € )
    6 working days
    17.62 €
    ( 20.97 € )
    6 working days
    13.35 €
    ( 15.89 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.83 €
    ( 14.08 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.21 €
    ( 13.34 € )
    Stock item: 1 working dayAvailable for same-day shipping
    12.59 €
    ( 14.98 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.61 €
    ( 17.39 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.26 €
    ( 21.73 € )
    6 working days
    21.66 €
    ( 25.78 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] This magnet with holder has the strongest attraction force. The vacuum surface has no grooves or bumps to prevent dust accumulation.

    Technical information

    Outline and specifications

    More Information

    Magnets with Holder/High Strength Flat Type:Related Image
     ■ Features
    •Highest attraction force compared with other magnets with holders of the same size.
    •No grooves or bumps on surfaces to collect dust.
