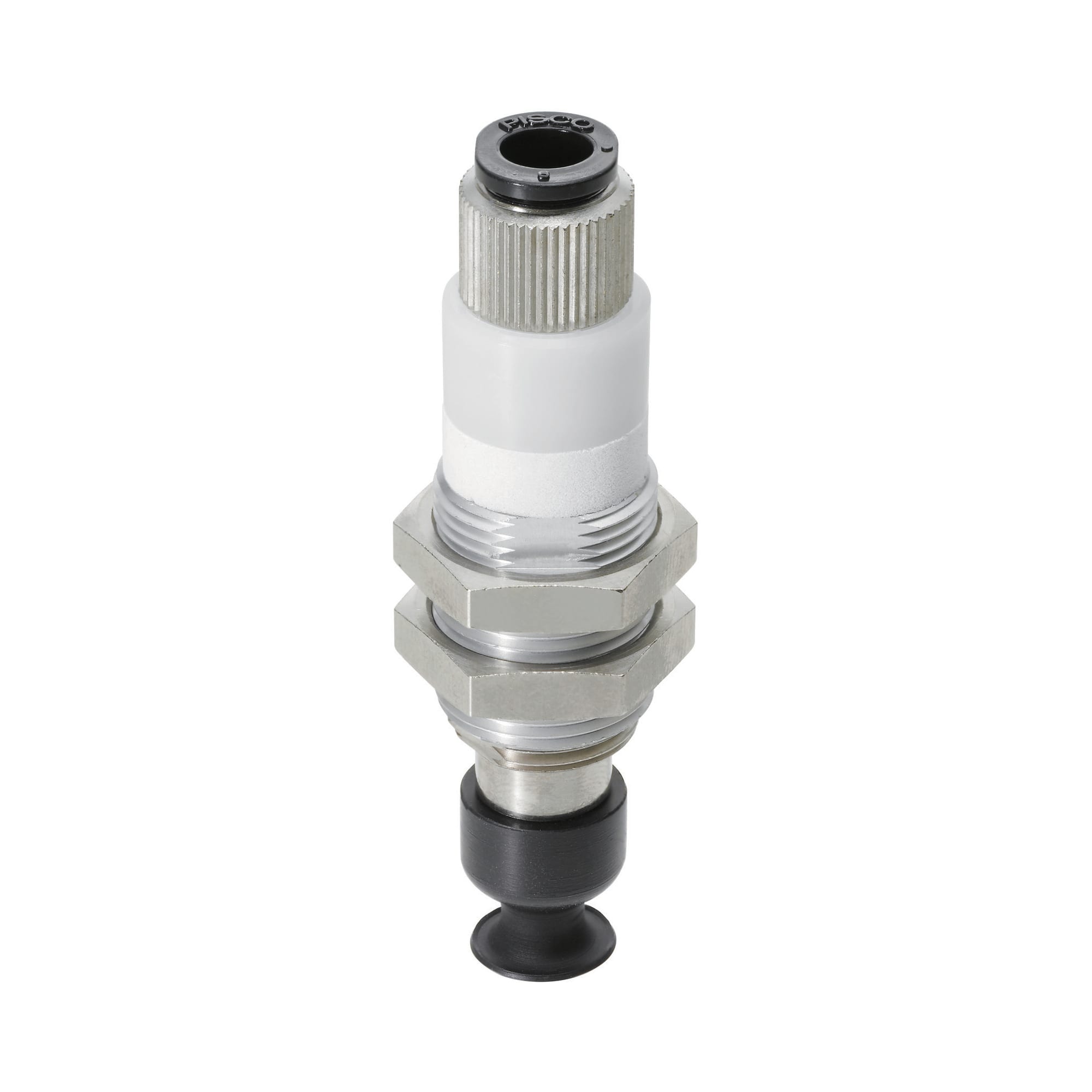

Vacuum Fittings / Soft / Vacuum Cylinder Type / M-Shape
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Type | Accessory | Pad Shape | Pad Material | |
| MVCMN | Suction Cups | VPCT | Soft | Nitrile Rubber |
| MVCME | VPCE | Conductive Silicon Rubber | ||
Specifications
| Part Number |
| MVCKN4 |
| Part Number | D | d | L1 | Shape M | Unit Price | ||||
| B | Mass g | 1 ~ 20 pc(s). | |||||||
| Type | Pad Material | No. | MVCMN | MVCME | |||||
| MVCM (Soft) | N E | 4 | 6 | 4 | 12 | 64 | 34 | ||
| 6 | 6 | 6 | 12 | 64 | 34 | ||||
| 8 | 6 | 8 | 12 | 64 | 34 | ||||
| 10 | 6 | 10 | 14 | 66 | 34.5 | ||||
| 15 | 6 | 15 | 14 | 66 | 34.5 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MVCME4 |
| MVCME6 |
| MVCME8 |
| MVCME10 |
| MVCME15 |
| MVCMN4 |
| MVCMN6 |
| MVCMN8 |
| MVCMN10 |
| MVCMN15 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Rubber Group Material | Usage Environment | Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature (°C) | O.D. (d) (Ø) | |
|---|---|---|---|---|---|---|---|---|---|
52.40 € | 1 | 5 Days | 10 | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 4 | ||
52.40 € | 1 | 5 Days | 10 | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 6 | ||
52.40 € | 1 | 5 Days | 10 | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 8 | ||
52.40 € | 1 | 5 Days | 10 | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 10 | ||
52.77 € | 1 | 5 Days | 10 | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 15 | ||
51.13 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 4 | ||
51.13 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 6 | ||
51.13 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 8 | ||
51.13 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 10 | ||
51.51 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 15 |
