Manually Operated Linear / Two Tables

Manually Operated Linear / Two Tables

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

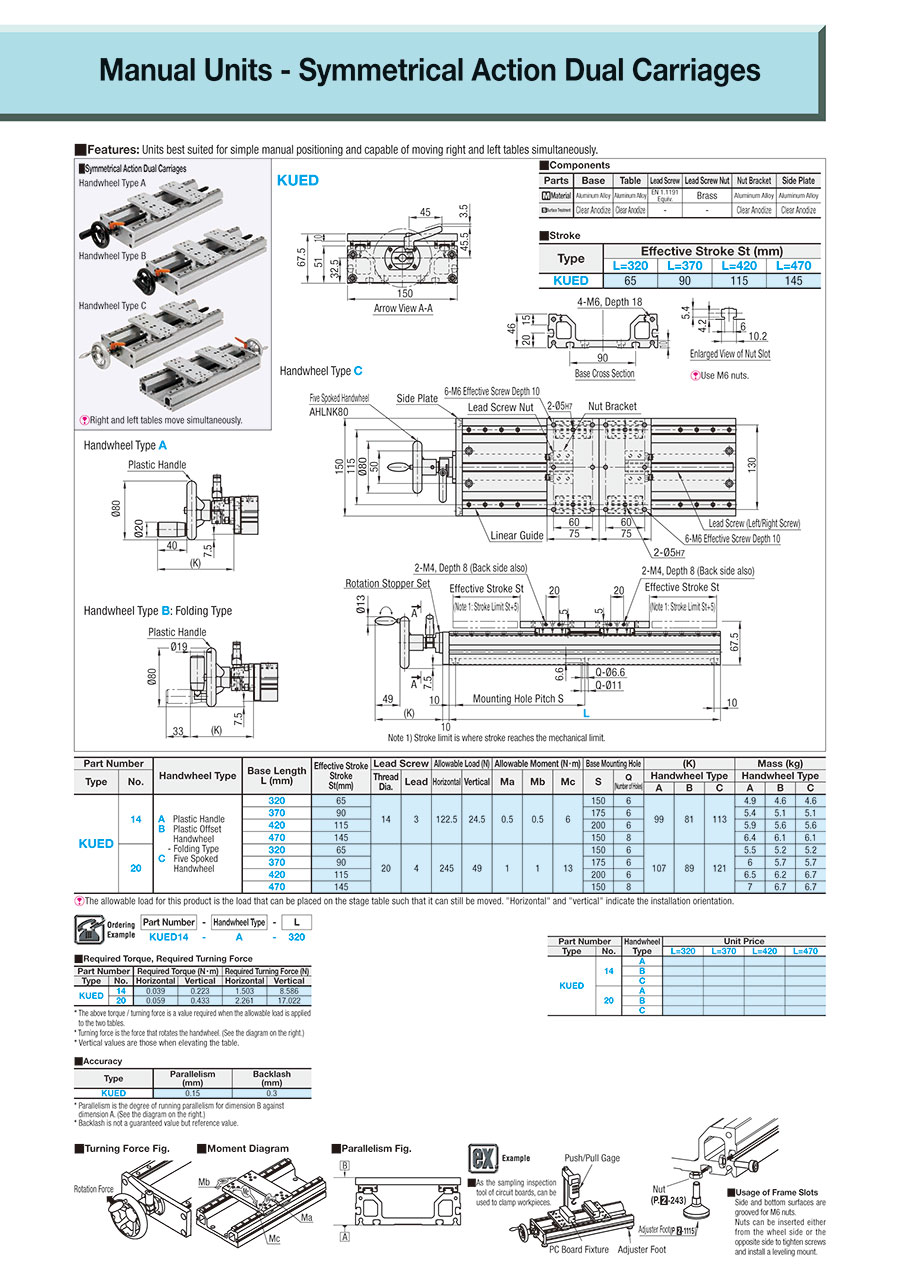

Outline drawing and specifications table

KUED
Handwheel Type C
6-Surface Milled Mounting Plates/Brackets - External Dimension Configurable: Related Image
Handwheel Type A Handwheel Type B: Folding Type

*1) Stroke limit is where stroke reaches the mechanical limit.
[ ! ] Use M6 nuts.

■ Components
PartsBaseTableTrapezoidal ThreadLead Screw NutNut BracketSide Plate
MaterialAluminum AlloyAluminum AlloyEN 1.1191 Equiv.BrassAluminum AlloyAluminum Alloy
Surface TreatmentClear AnodizeClear Anodize——Clear AnodizeClear Anodize

■Stroke
TypeEffective Stroke St (mm)
L = 320L = 370L = 420L = 470
KUED6590115145

Specification Table

Part Number—Handwheel Type—L
KUED14—A—320
Part NumberHandwheel TypeFrame Length
L (mm)		Effective
Stroke
St (mm)		Trapezoidal ThreadAllowable Load (N)Allowable Moment (N⋅m)Base Mounting Hole(K)Mass (kg)
TypeNo.Thread Dia.LeadHorizontalVerticalMaMbMcSQ
(Number of Holes)		Handwheel TypeHandwheel Type
ABCABC
KUED14A Plastic Handwheel
B Plastic Handwheel
Folding Type
C Five Spoked Handwheel		32065143122.524.50.50.56150699811134.94.64.6
3709017565.45.15.1
42011520065.95.65.6
47014515086.46.16.1
20320652042454911131506102841165.55.25.2
37090175665.75.7
42011520066.56.26.7
470145150876.76.7
The allowable load for this product is the load that can be placed on the stage table such that it can still be moved. "Horizontal" and "vertical" indicate the installation orientation.

Part number list

Number of items
  • 1
    • Part number
    KUED14-A-[320,370,420,470]
    KUED14-B-[320,370,420,470]
    KUED14-C-[320,370,420,470]
    KUED20-A-[320,370,420,470]
    KUED20-B-[320,370,420,470]
    KUED20-C-[320,370,420,470]

    Load Capacity (Range)

    (N)

    Thread Dia.

    (mm)

    Handwheel Type

    Frame Length [L]

    (mm)

    		Minimum order quantity
    5 to 30
    14
    A (Plastic Offset Handwheel)
    320 ～ 470
    1 pieces
    5 to 30
    14
    B (Plastic Offset Handwheel Folding Type)
    320 ～ 470
    1 pieces
    5 to 30
    14
    C (5-Spoke Handwheel)
    320 ～ 470
    1 pieces
    30.1 to 50
    20
    A (Plastic Offset Handwheel)
    320 ～ 470
    1 pieces
    30.1 to 50
    20
    B (Plastic Offset Handwheel Folding Type)
    320 ～ 470
    1 pieces
    30.1 to 50
    20
    C (5-Spoke Handwheel)
    320 ～ 470
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    20 working days
    -
    ( - )
    20 working days
    -
    ( - )
    20 working days
    -
    ( - )
    20 working days
    -
    ( - )
    20 working days
    -
    ( - )
    20 working days
  • 1

    • More Information

    Outline and specifications

    Specifications/Overview

    ■Accuracy  ■Parallelism Fig.  ■Moment Diagram
    TypeParallelism
    (mm)    		Backlash
    (mm)
    KUED0.150.3

    [!] Parallelism is the degree of running parallelism for dimension B against dimension A. (See the diagram above.)
    [ ! ] Backlash is not a guaranteed value but reference value.
    ■Required Torque, Required Turning Force  ■Turning Force Fig.
    Part NumberRequired Torque (N⋅m)Required Turning Force (N)
    TypeNo.HorizontalVerticalHorizontalVertical
    KUED140.0390.2231.5038.586
    200.0590.4332.26117.022

    [ ! ] The above torque / turning force is a value required when the allowable load is applied to the two tables.
    [!] Turning force is the force that rotates the handwheel. (See the diagram above.)
    [ ! ] Vertical values are those when elevating the table.

    The allowable load for this product is the load that can be placed on the stage table such that it can still be moved.

    App. Example

    ■As the sampling inspection tool of circuit boards, can be used to
    clamp workpieces.

    ■Usage of Frame Slots
    Side and bottom surfaces are grooved for M6 nuts.
    Nuts can be inserted either from the wheel side or the opposite side to
    tighten screws and install a leveling mount.
