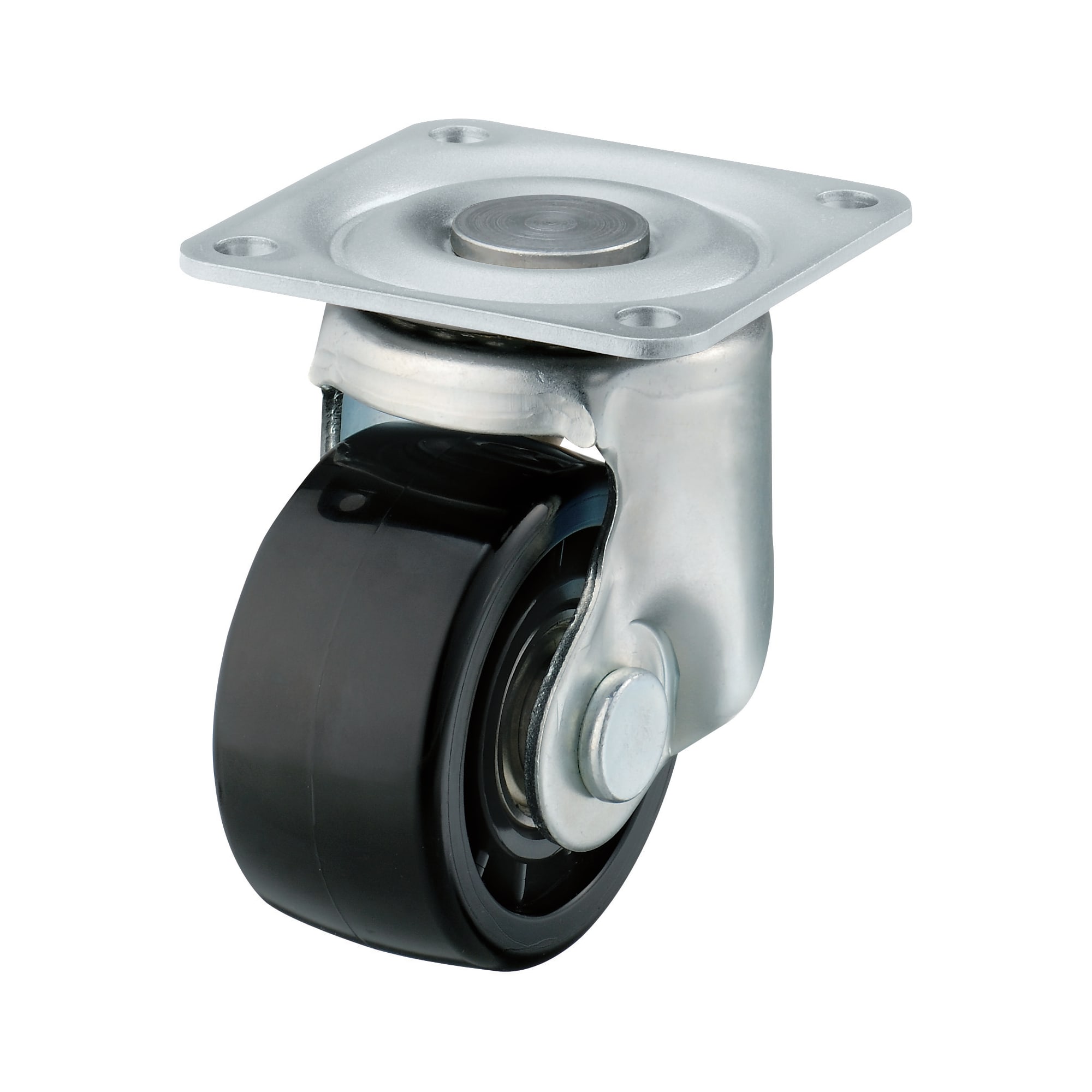

Castors / Medium to Heavy Load Type

Castors / Medium to Heavy Load Type

Mouse over image to enlarge

Part number:

Still undefined. 18 possible part numbers found.
Quantity:

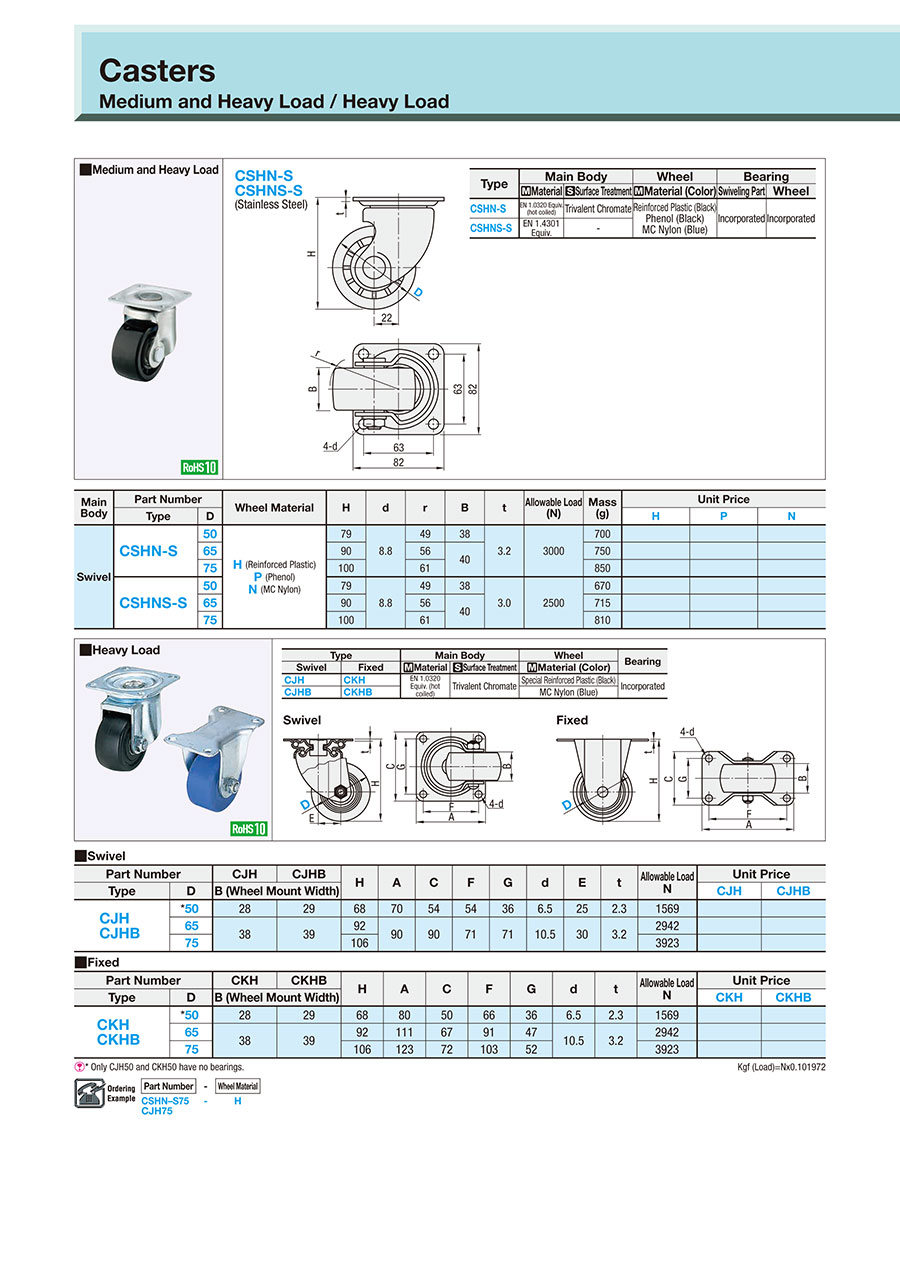

Outline drawing and specifications table

Casters/Medium to Heavy Load Type:Related Image

TypeMain BodyWheelBearing
MaterialSurface TreatmentMaterial (Color)Swiveling PartWheel
CSHN-SEN 1.0320 Equiv. (hot coiled)Trivalent ChromateReinforced Plastic (Black)
Phenol (Black)
MC Nylon (Blue)		IncorporatedIncorporated
CSHNS-SEN 1.4301 Equiv.-

Specifications

Part Number-Wheel Material
CSHN–S75
CJH75		-
H
Main BodyPart NumberWheel MaterialHdrBtAllowable Load
(N)		Mass (g)Unit Price
TypeDHPN
SwivelCSHN-S50H (Reinforced Plastic)
P (Phenol)
N (MC Nylon)		798.849383.23000700
65905640750
7510061850
CSHNS-S50798.849383.02500670
65905640715
7510061810

Part number list

Number of items
  • 1
    • Part number
    CSHN-S50-H
    CSHN-S50-N
    CSHN-S50-P
    CSHN-S65-H
    CSHN-S65-N
    CSHN-S65-P
    CSHN-S75-H
    CSHN-S75-N
    CSHN-S75-P
    CSHNS-S50-H
    CSHNS-S50-N
    CSHNS-S50-P
    CSHNS-S65-H
    CSHNS-S65-N
    CSHNS-S65-P
    CSHNS-S75-H
    CSHNS-S75-N
    CSHNS-S75-P

    [H] Mounting Height

    (mm)

    Allowable Load

    (daN)

    Wheel Material

    Fitting Material

    [D] Wheel Diameter

    (mm)

    Wheel Width B

    (mm)

    		RoHS?Minimum order quantity
    79
    300
    [Engineering Plastics] Reinforced Plastic
    Steel
    50
    38
    10
    1 pieces
    79
    300
    [Nylon] MC Nylon
    Steel
    50
    38
    10
    1 pieces
    79
    300
    [Phenol] Phenol
    Steel
    50
    38
    10
    1 pieces
    90
    300
    [Engineering Plastics] Reinforced Plastic
    Steel
    65
    40
    10
    1 pieces
    90
    300
    [Nylon] MC Nylon
    Steel
    65
    40
    10
    1 pieces
    90
    300
    [Phenol] Phenol
    Steel
    65
    40
    10
    1 pieces
    100
    300
    [Engineering Plastics] Reinforced Plastic
    Steel
    75
    40
    10
    1 pieces
    100
    300
    [Nylon] MC Nylon
    Steel
    75
    40
    10
    1 pieces
    100
    300
    [Phenol] Phenol
    Steel
    75
    40
    10
    1 pieces
    79
    250
    [Engineering Plastics] Reinforced Plastic
    Stainless Steel
    50
    38
    10
    1 pieces
    79
    250
    [Nylon] MC Nylon
    Stainless Steel
    50
    38
    10
    1 pieces
    79
    250
    [Phenol] Phenol
    Stainless Steel
    50
    38
    10
    1 pieces
    90
    250
    [Engineering Plastics] Reinforced Plastic
    Stainless Steel
    65
    40
    10
    1 pieces
    90
    250
    [Nylon] MC Nylon
    Stainless Steel
    65
    40
    10
    1 pieces
    90
    250
    [Phenol] Phenol
    Stainless Steel
    65
    40
    10
    1 pieces
    100
    250
    [Engineering Plastics] Reinforced Plastic
    Stainless Steel
    75
    40
    10
    1 pieces
    100
    250
    [Nylon] MC Nylon
    Stainless Steel
    75
    40
    10
    1 pieces
    100
    250
    [Phenol] Phenol
    Stainless Steel
    75
    40
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    19.01 €
    ( 22.62 € )
    5 working days
    46.98 €
    ( 55.91 € )
    5 working days
    43.70 €
    ( 52.00 € )
    5 working days
    23.56 €
    ( 28.04 € )
    5 working days
    54.65 €
    ( 65.03 € )
    5 working days
    45.46 €
    ( 54.10 € )
    5 working days
    25.19 €
    ( 29.98 € )
    5 working days
    72.42 €
    ( 86.18 € )
    5 working days
    46.47 €
    ( 55.30 € )
    5 working days
    93.58 €
    ( 111.36 € )
    5 working days
    107.68 €
    ( 128.14 € )
    5 working days
    100.37 €
    ( 119.44 € )
    5 working days
    94.08 €
    ( 111.96 € )
    5 working days
    123.92 €
    ( 147.46 € )
    5 working days
    108.69 €
    ( 129.34 € )
    5 working days
    101.38 €
    ( 120.64 € )
    5 working days
    174.44 €
    ( 207.58 € )
    5 working days
    111.71 €
    ( 132.93 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Compatible with industry standard pitch. -Round hole roller for medium duty.
