Sprockets / Double Speed / Free Flow Conveyor Chains

Sprockets / Double Speed / Free Flow Conveyor Chains

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Outline drawing and specifications table

WESP
Shaft Bore Specs.S

Shaft Bore Specs.H

Shaft Bore Specs.N
  (Pilot Bore)  (Round Bore)  (New JIS Key + Tap)

Shaft Bore Dia.
D		Keyway
b2 × t2		Set Screw
M
155 × 2.36
206 × 2.86
25·308 × 3.38
[ ! ]For Nominal 3 - 9 teeth, Set Screw is M5.

[M]Material: EN 1.1191 Equiv.
[A]Accessories: Set Screw
(Only for shaft bore specification□N)

Specification Table

Part Number—Number of Teeth—Shaft Bore Specifications, I.D.
WESP3—10—H15
Part NumberNumber of TeethShaft Bore Dia.DpDoTHLℓAWeight (g)
TypeNominalS Specification (DH8)H Specification (DH7)N Specification (DH7)
(Sprocket)
WESP		391415 2015 2055.706333322415.3340
101415 2015 2061.656833725515.3370
4101920 2520 2582.209345240821.5850
5102425 3025 30102.7511756645927.01000

Part number list

Number of items
  • 1
    • Part number
    WESP3-9-H[15,20]
    WESP3-9-N[15,20]
    WESP3-9-S-14
    WESP3-10-H[15,20]
    WESP3-10-N[15,20]
    WESP3-10-S-14
    WESP4-10-H[20,25]
    WESP4-10-N[20,25]
    WESP4-10-S-19
    WESP5-10-H[25,30]
    WESP5-10-N[25,30]
    WESP5-10-S-24

    Chain No.

    Number of Teeth (Range Selectable)

    Nominal

    Number of Teeth

    Hole Specifications

    H

    N

    		RoHS?Minimum order quantity
    3
    8 to 9
    3
    9
    Shaft Bore Machining Configurable
    15 ～ 20
    -
    10
    1 pieces
    3
    8 to 9
    3
    9
    Shaft Bore Machining Configurable
    -
    15 ～ 20
    10
    1 pieces
    3
    8 to 9
    14
    9
    Standard Pilot Hole
    -
    -
    10
    1 pieces
    3
    10 to 11
    3
    10
    Shaft Bore Machining Configurable
    15 ～ 20
    -
    10
    1 pieces
    3
    10 to 11
    3
    10
    Shaft Bore Machining Configurable
    -
    15 ～ 20
    10
    1 pieces
    3
    10 to 11
    14
    10
    Standard Pilot Hole
    -
    -
    10
    1 pieces
    4
    10 to 11
    4
    10
    Shaft Bore Machining Configurable
    20 ～ 25
    -
    10
    1 pieces
    4
    10 to 11
    4
    10
    Shaft Bore Machining Configurable
    -
    20 ～ 25
    10
    1 pieces
    -
    -
    -
    -
    -
    -
    -
    10
    1 pieces
    5
    10 to 11
    5
    10
    Shaft Bore Machining Configurable
    25 ～ 30
    -
    10
    1 pieces
    5
    10 to 11
    5
    10
    Shaft Bore Machining Configurable
    -
    25 ～ 30
    10
    1 pieces
    5
    10 to 11
    24
    10
    Standard Pilot Hole
    -
    -
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    23.21 €
    ( 27.62 € )
    5 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    22.67 €
    ( 26.98 € )
    5 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    26.49 €
    ( 31.52 € )
    5 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    32.03 €
    ( 38.12 € )
    5 working days
  • 1

    • More Information

    Basic information

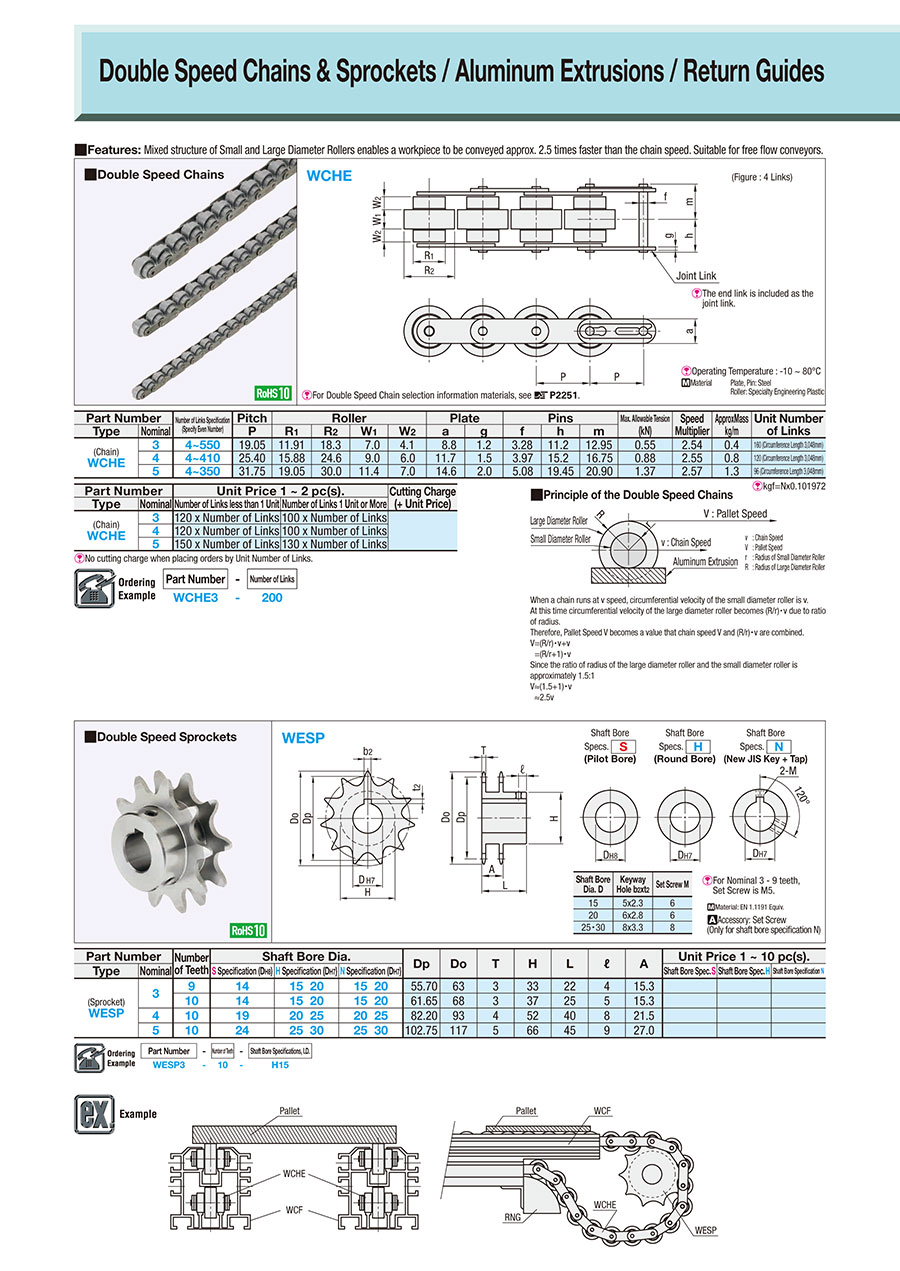

    [Features] This sprocket is suitable for double speed chains. [Material] Complies with EN 1.1191 Equiv.

    Outline and specifications

    App. Example

    Double Speed Chain Sprockets: Related Image
