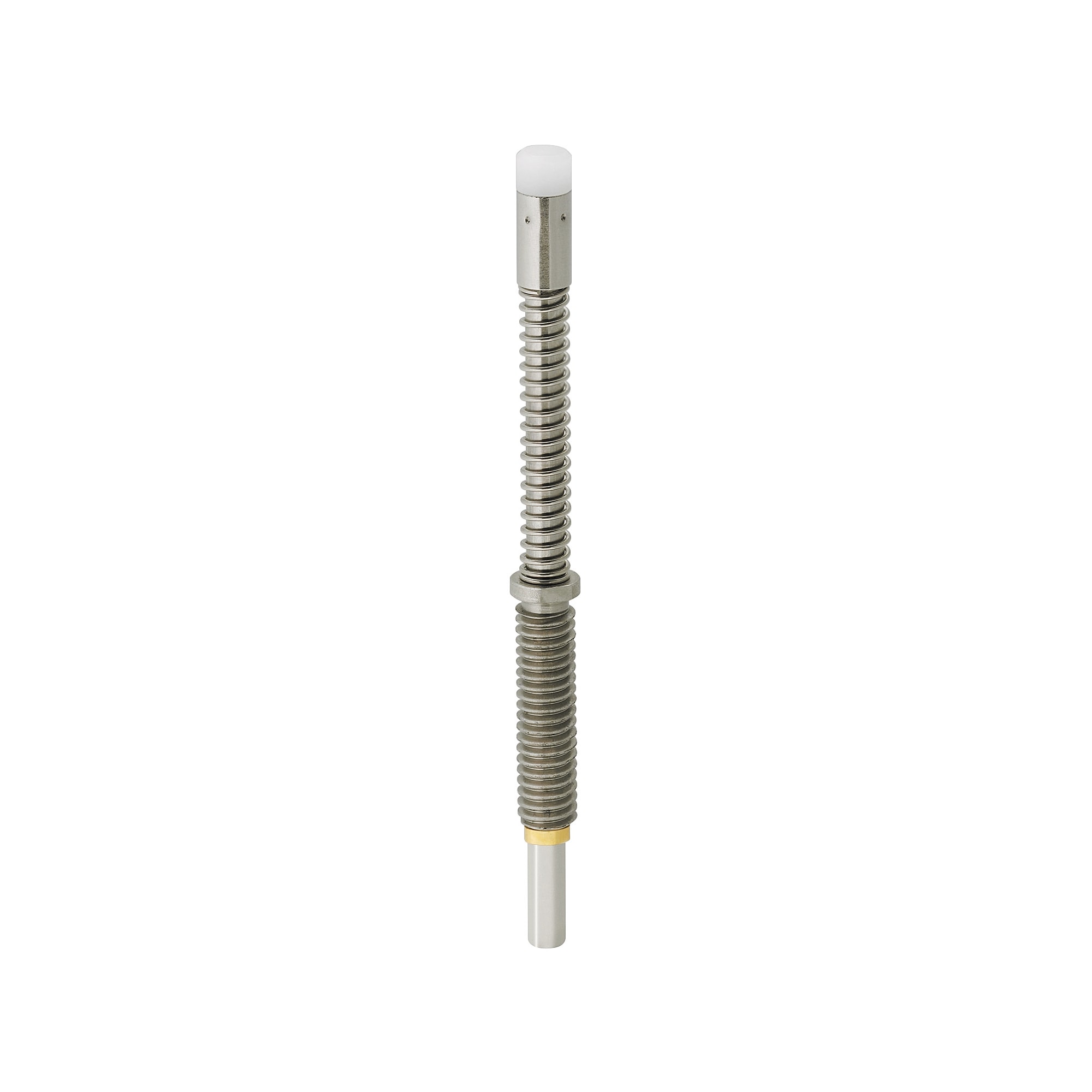

    Spring Loaded Fixture Pin

    Spring Loaded Fixture Pin

    Mouse over image to enlarge

    Caution

    • [Specification Change] The collar material of JJPPN2-1.5 will be changed from BS (brass) to copper alloy (phosphor bronze) as soon as current stock runs out.
    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

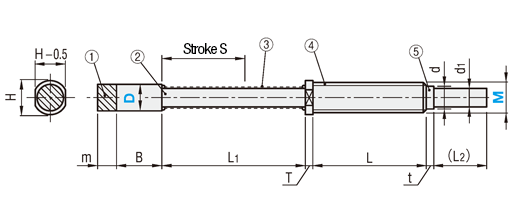

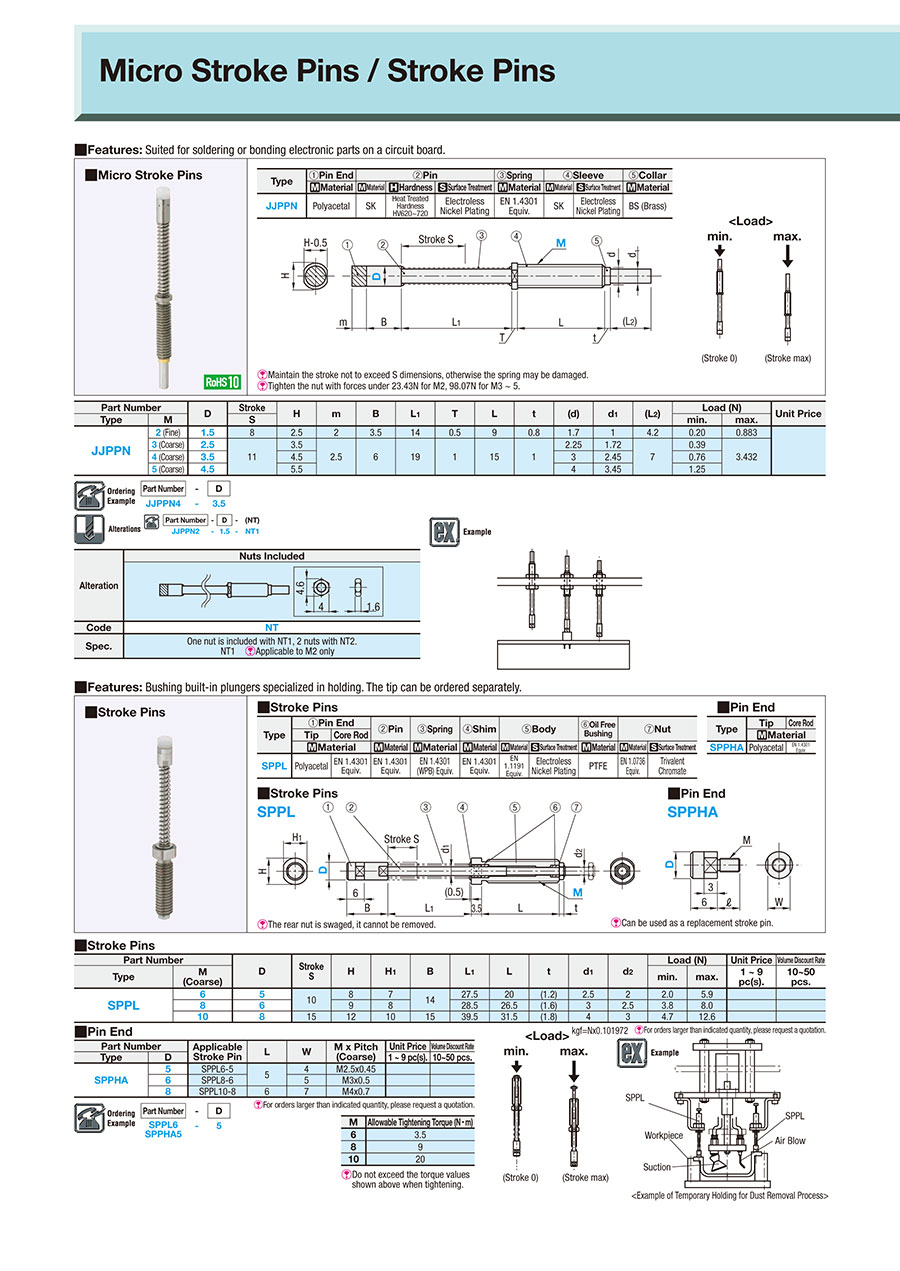

    Outline drawing and specifications table

     [Load]
     (Stroke 0)(Stroke max)
    Maintain the stroke not to exceed S dimensions, otherwise the spring may be damaged.
    [ ! ] Tighten the nut with forces under 23.43 N⋅cm for M2, 98.07 N⋅cm for M3 to 5.
    Type(1) Pin tip(2) Pin(3) Spring(4) Sleeve(5) Color
    [M] Material[M] Material[H] Hardness[S] Surface treatment[M] Material[M] Material[S] Surface treatment[M] Material
    JJPPNPolyacetalSKHeat Treated Hardness
    HV620 to 720    		Electroless Nickel Plating
    Nickel Plating    		EN 1.4301 Equiv.SKElectroless Nickel Plating
    Nickel Plating    		BS (Brass)
    *The collar material for JJPPN2-1.5 is phosphor bronze.

    Specification Table

    Part Number—D
    JJPPN4—3.5
    Part NumberDStrokeHmBL1TLt(d)d1(L2)Load (N)
    TypeMSmin.max.
    JJPPN2 (Fine)1.582.523.5140.590.81.714.20.200.883
    3 (Coarse)2.5113.52.561911512.251.7270.393.432
    4 (Coarse)3.54.532.450.76
    5 (Coarse)4.55.543.451.25
