Rough Guide / Narrow
Mouse over image to enlarge
Part number:

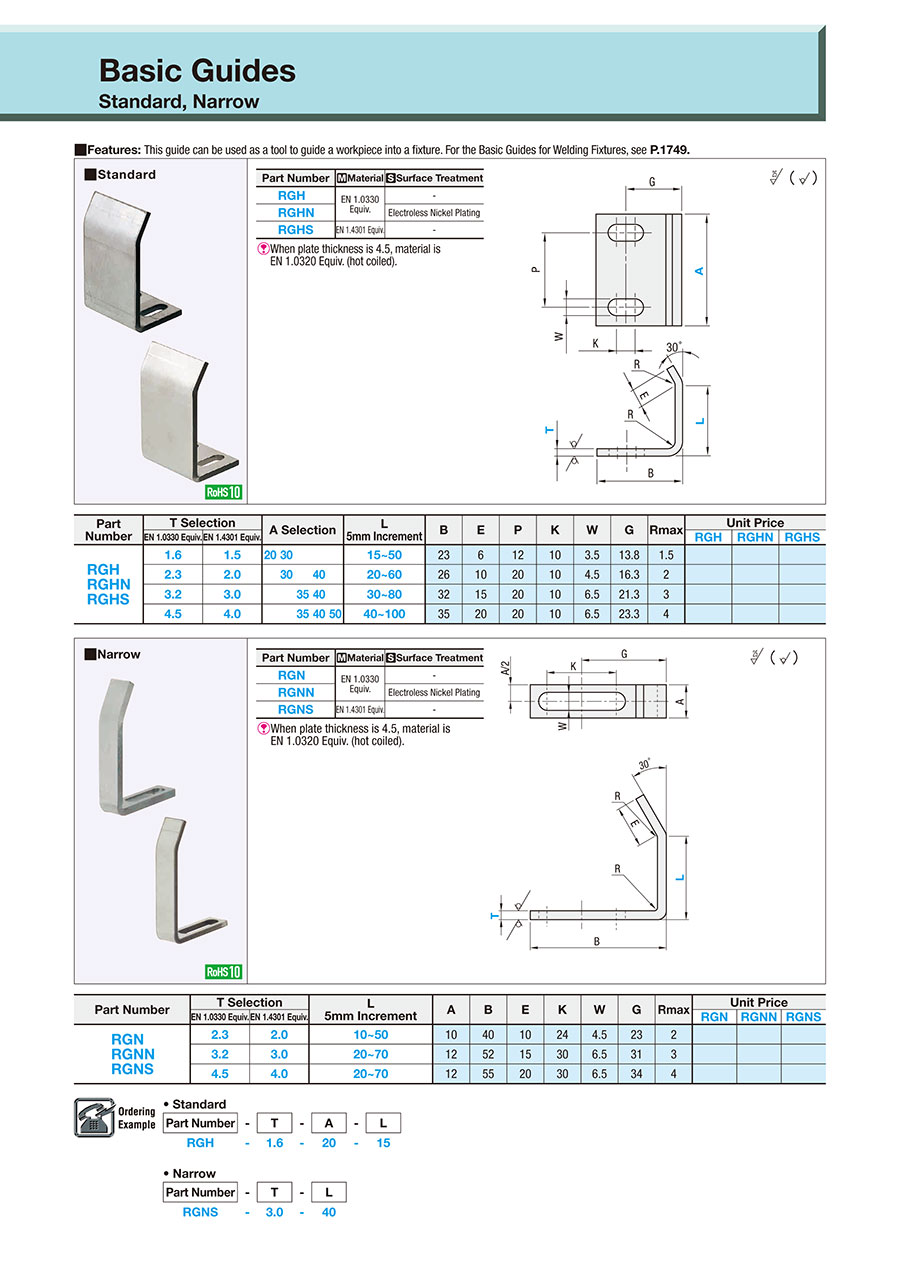

possible part numbers found.Outline drawing and specifications table
| Part Number | [M] Material | [S] Surface treatment |
| RGN | EN 1.0330 Equiv. | — |
| RGNN | Electroless Nickel Plating | |
| RGNS | EN 1.4301 Equiv. | — |
[ ! ] When plate thickness is 4.5, material is EN 1.0320 Equiv. (hot coiled).
Specification Table
| Part Number | — | T | — | L |
| RGNS | — | 3.0 | — | 40 |
◦ Narrow
| Part Number | T Selection | L 5 mm Increments | A | B | E | K | W | G | Rmax | |
| SPCC | SUS304 | |||||||||
| RGN RGNN RGNS | 2.3 | 2.0 | 10 to 50 | 10 | 40 | 10 | 24 | 4.5 | 23 | 2 |
| 3.2 | 3.0 | 20 to 70 | 12 | 52 | 15 | 30 | 6.5 | 31 | 3 | |
| 4.5 | 4.0 | 20 to 70 | 12 | 55 | 20 | 30 | 6.5 | 34 | 4 | |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 15 working days |
- ( - ) | 15 working days |
- ( - ) | 15 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
- ( - ) | 11 working days |
