Contact Switches / Spring Plunger / IP40

Contact Switches / Spring Plunger / IP40

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

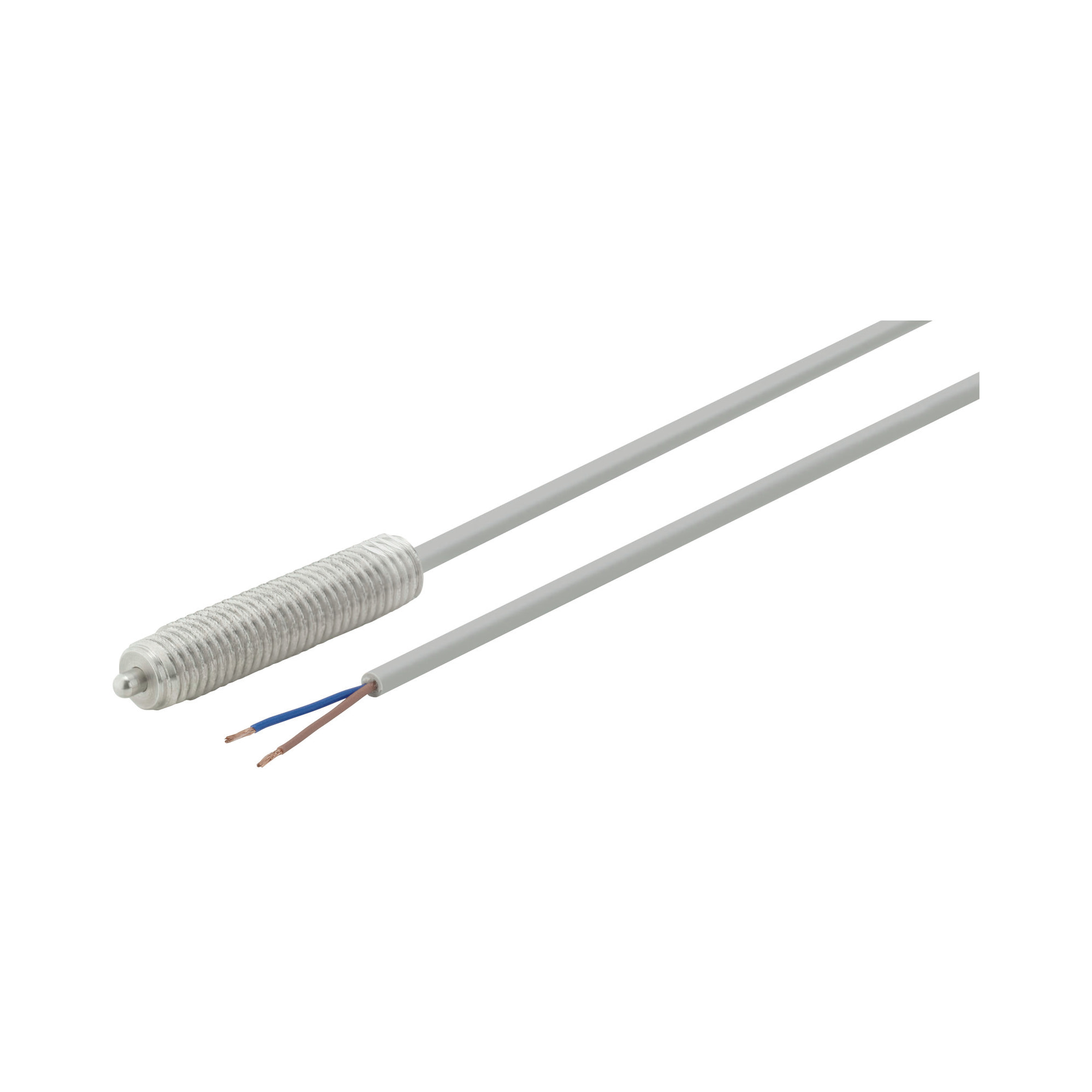

This is a positioning switch, spring plunger type. [Main body material]EN 1.4305 Equiv. [Pin part material]EN 1.4125 Equiv.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Contact Switches/Spring Plunger/IP40:Related Image

PinMain Body Cable Accessory
Material Hardness Material
EN 1.4125 Equiv.50~55HRCEN 1.4305 Equiv. Cable 2m, 2-Conductors Ø3, Oil Resistant
Min. Bending Radius R7
Hex Nut 2 pcs.
(Coarse Thread JIS Class 3)
Toothed Washer 1 pc.

Specifications

Part Number
MSPSS6
MSPB6
N-MSPB-D6F
Part NumberM (Coarse)dStroke
S
Operating PointContact Force NContact LogicBMSPSSN-MSPSS-D
Unit PriceVolume Discount RateUnit PriceVolume Discount Rate
TypeNo.min.max.1 ~ 9 pc(s).10~201 ~ 9 pc(s).10~20
MSPSS
N-MSPSS-D
662.530.8 from Body End (Repeatability 0.01)611NO (Normally Open)5
886117

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
MSPSS6
MSPSS8
N-MSPSS-D6
N-MSPSS-D8
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSScrew Nominal (M) LED

33.14 €

1 Available Same day

Stock

10M6x1.0W/o LED

33.14 €

1 Available Same day

Stock

10M8x1.25W/o LED

39.48 €

1 Available Same day

Stock

10M6x1.0With LED

38.02 €

1 Available Same day

Stock

10M8x1.25With LED

Loading...

  1. 1

Basic information

Type Pin Stroke, Spring Plunger Type Main Body Shape Screw Type Tip Shape Needle Type
Environment Standard Body Material EN 1.4305 Equiv. Contact Material EN 1.4125 Equiv.
Stroke(mm) 3 Contact Point Type Contact Type NO Operating Temperature Range(°C) 0::80
Operating Point(mm) 0.8 Repeatability 0.01mm Contact Force(N) 6
Contact Point Accuracy Life(x 10K times) 1000 Tip Dia. Ø2.5 Protection Structure IP40
