Handles / with Mounting Plates
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

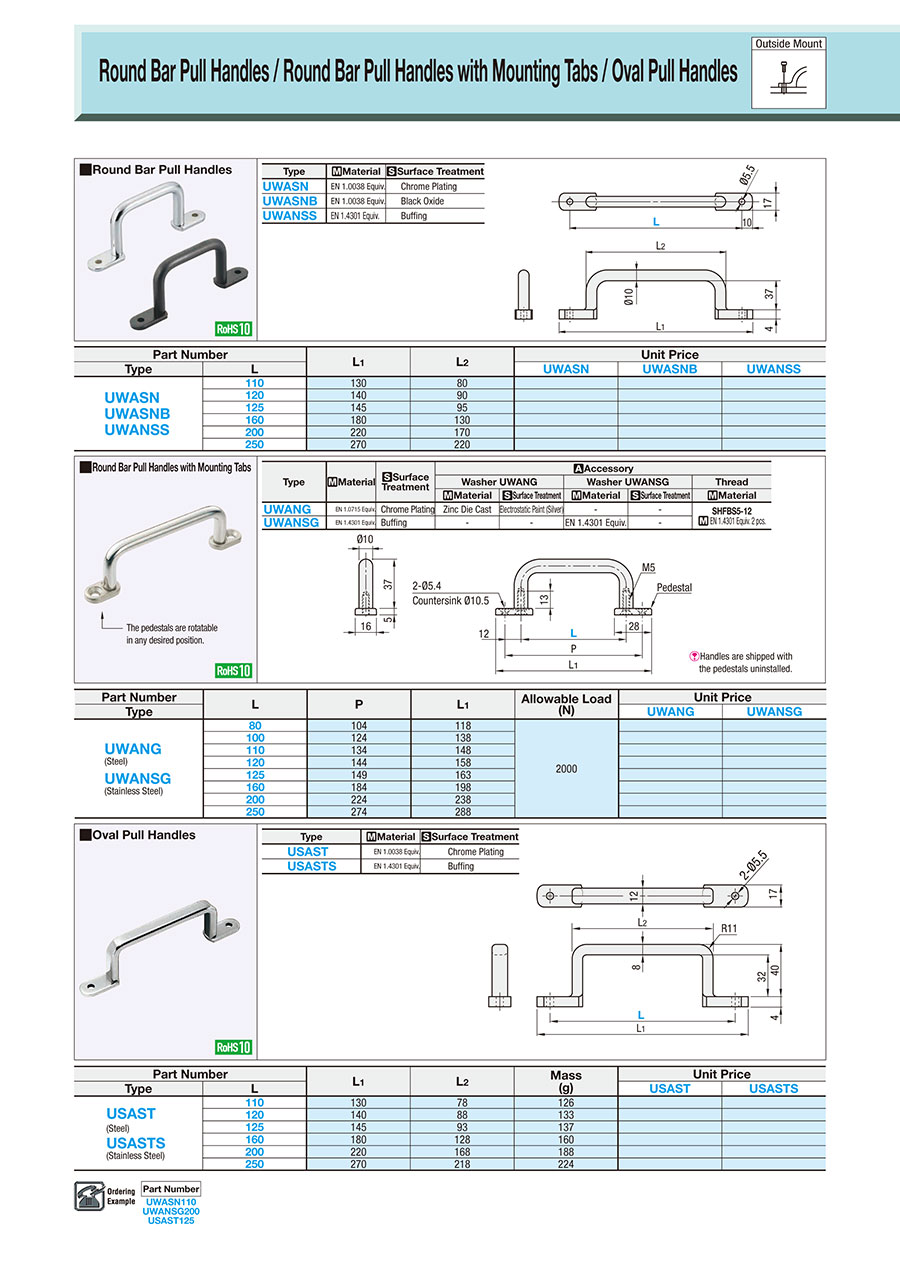

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
| Type | Material | Surface Treatment | Accessory | ||||
| Washer UWANG | Washer UWANSG | Thread | |||||
| Material | Surface Treatment | Material | Surface Treatment | Material | |||
| UWANG | EN 1.0715 Equiv. | Chrome Plating | Zinc Die Cast | Electrostatic Paint (Silver) | - | - | SHFBS5-12 EN 1.4301 Equiv. 2 pcs. |
| UWANSG | EN 1.4301 Equiv. | Buffing | - | - | EN 1.4301 Equiv. | - | |
Specifications
| Part Number |
| UWASN110 UWANSG200 USAST125 |
| Part Number | L | P | L1 | Allowable Load (N) | Unit Price | |
| Type | UWANG | UWANSG | ||||
| UWANG (Steel) UWANSG (Stainless Steel) | 80 | 104 | 119.5 | 2000 | ||
| 100 | 124 | 139.5 | ||||
| 110 | 134 | 149.5 | ||||
| 120 | 144 | 159.5 | ||||
| 125 | 149 | 164.5 | ||||
| 160 | 184 | 199.5 | ||||
| 200 | 224 | 239.5 | ||||
| 250 | 274 | 289.5 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| UWANG80 |
| UWANG100 |
| UWANG110 |
| UWANG120 |
| UWANG125 |
| UWANG160 |
| UWANG200 |
| UWANG250 |
| UWANSG80 |
| UWANSG100 |
| UWANSG110 |
| UWANSG120 |
| UWANSG125 |
| UWANSG160 |
| UWANSG200 |
| UWANSG250 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Pitch L (mm) | Material | Surface Treatment | |
|---|---|---|---|---|---|---|---|---|
7.56 € | 1 | Available | 5 Days | 10 | 80 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
7.56 € | 1 | Available |
Same day
Stock | 10 | 100 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
7.67 € | 1 | Available |
Same day
Stock | 10 | 110 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
7.67 € | 1 | Available | 5 Days | 10 | 120 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
7.67 € | 1 | Available | 5 Days | 10 | 125 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
8.31 € | 1 | Available | 5 Days | 10 | 160 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
8.57 € | 1 | Available | 5 Days | 10 | 200 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
10.07 € | 1 | Available | 5 Days | 10 | 250 | [Steel] EN 1.0715 Equiv. | Chrome Plating | |
9.95 € | 1 | Available | 5 Days | 10 | 80 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
10.07 € | 1 | Available | 9 Days | 10 | 100 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
10.20 € | 1 | Available | 5 Days | 10 | 110 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
10.33 € | 1 | Available |
Same day
Stock | 10 | 120 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
10.45 € | 1 | Available |
Same day
Stock | 10 | 125 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
11.07 € | 1 | Available | 5 Days | 10 | 160 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
11.97 € | 1 | Available |
Same day
Stock | 10 | 200 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing | |
12.35 € | 1 | Available | 5 Days | 10 | 250 | [EN 1.4301 Equiv.] EN 1.4301 Equiv. | Buffing |
Loading...
Basic information
| Main Body Type | Surfaced Type | Surfaced Type Category | U Shape | U-shaped Type | Round Bar Pull Handles with Mounting Tabs |
|---|---|---|---|---|---|
| Overall Height(mm) | 42 | Additional Function | With Washer/With Plate/With Cap | Mounting Method | Outside Mount |
| Handle Thickness D(mm) | 10 | Handle Cross Sectional Shape | Round Bars |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Pitch L(mm)
-
Material
- EN 1.4301 Equiv.
- Steel
- EN 1.4301 Equiv.
-
Surface Treatment
- Chrome Plating
- Buffing
-
Type
- UWANG
- UWANSG
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
Tech Support
- Technical Support
- Tel：+49 69 668173-0 / FAX：+49 69 668173-360
- Technical Inquiry
Payment Method
On-Demand Manufacturing
Certificates
